Buy DAB RS4e-DIVERTRON1200 1200 Submersible Pump

Description

PRODUCT INFORMATION

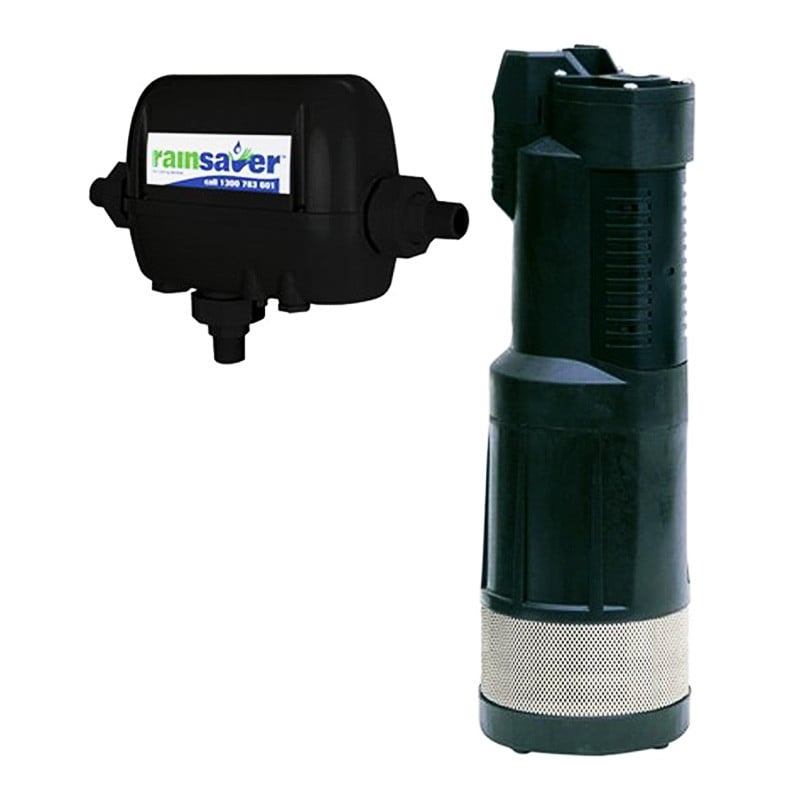

DAB RS4e-DIVERTRON1200 Divertron 1200 Submersible Pump With Rainsaver

The pump is a light and compact high head submersible clean water automatic pressure system pump supplied wired and ready to install. The pump includes an electronic automatic restart pump control with dry run protection

The RS4E-DIVERTRON1200 Package

DAB Divertron1200 Multistage technopolymer submersible pump 750W with auto restart
Bianco Rainsaver MK4E automatic mains/changeover device
Barrel unions and ‘torque set’ safety spanner are included for installation. It’s impossible to over tighten when using the safety spanner.
Incorporate a 24 hour automatic pump restart • Watermark approved for connections to all Town Water supplies. Safe against waterborne bacteria, dezincification and lead poisoning.
Auxilary outlet allows for water storage pressure vessels to reduce pump starts.
Revolutionary mono channel design does not restrict flow or reduce pressures, eliminates any possibility of water leaks.
Easy to clean, pump and town inlet strainers are included to prevent blockages in dishwashers, washing machines, sprinklers etc
Australian Owned and designed
The pump regulates flow and pressure and protects itself against voltage fluctuations and loss of water.
AS/NZS4020 Drinking Water Approved

FEATURES & BENEFITS

OPERATION

The RAINSAVERMK4E supplies clean rainwater from a rainwater tank via an automatic pressure system pump to toilets, laundry and garden taps in a household.

Mains water is also connected to the RAINSAVERMK4E as an automatic back up should rain water level be too low, or if there is a power or pump* failure.

*Should there be a pump failure, mains back up is achieved by turning the RAINSAVERMK4E off at the power point. The low voltage float switch supplied prevents the pump from running dry and allows automatic switch over to mains supply should the rain water level in the tank be too low.

6" submersible electronic on and off multi-impeller clean water pump designed for pressurization, rainwater reuse, gardening and irrigation in residential building service. The pump is available with 3 or 4 impellers.

CONSTRUCTION FEATURES OF THE PUMP

Technopolymer pump body and impellers to resist corrosion and oxidation. Integrated non-return valve on delivery. Stainless steel debris filter or stainless steel fitting for use with float suction kit (version X).

CONSTRUCTION FEATURES OF THE MOTOR

Asynchronous motor. Motor shaft in AISI 416 stainless steel. Integrated starting capacitor and thermal protection against the overheating of the motor.

FEATURES OF THE ELECTRONIC

The electronics allow automatic switching on and off. Integrated pressure switch and flow sensor. Dry-running protection.

The pump is characterised by:

Corrosion resistant pump components.
Fully automatic operation.
Shaft seal with sand protection boot.
240V single phase motor with in-built auto reset thermal overload.
15m of power cable.
2 year warranty.
Flows to 95 l/m
Heads to 46 m

TECHNICAL DATA

Brand	Bianco Rainsaver
Suitable For	Clean Water
Bar	4.8 Bar
Approval	Approved For Drinking Water
Flow Range Category	a. 0 - 99 L/min
Flow Rate (L/min)	95 L/min
Float	Float Included
Hp	1 Hp
Kilo Watts	0.75 kW
Head Range Category	b. 40 - 59 m
Max Head (m)	48 m
Port Size Outlet	1" BSPM outlet
Powered	Electric
Taps	9 Taps
Warranty (months)	24 Months
Volts	240 V
Watts	750 W

LITERATURE

DAB RS4e-DIVERTRON1200 Divertron 1200 Submersible Pump With Rainsaver Brochure
