PRODUCT INFORMATION

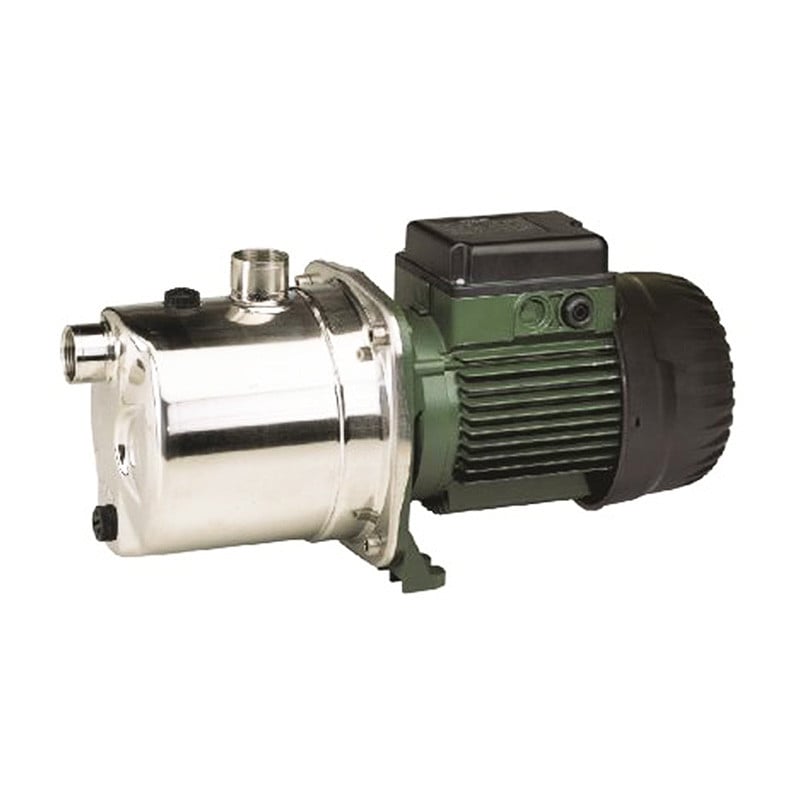

DAB EUROINOX30/50M Stainless Steel Multistage Pump
Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.
FEATURES & BENEFITS
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in stainless steel.
Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel.
Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel. Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version
TECHNICAL DATA
Brand | DAB Pumps |
Product Type |
Horizontal Multistage Pump |
Suitable For |
Clean Water |
Bar |
4.2 Bar |
Approval |
Approved For Drinking Water |
Flow Range Category |
a. 0 - 99 L/min |
Flow Rate (L/min) |
80 L/min |
Hp |
0.75 Hp |
kPa | 425 kPa |
Kilo Watts |
0.55 kW |
Head Range Category |
b. 40 - 59 m |
Max Head (m) | 42m |
Port Size Inlet |
1" BSPF inlet |
Port Size Outlet |
1" BSPM outlet |
Powered | lectric |
Volts |
240 V |
Warranty (months) |
24 Months |
Watts |
550 W |
