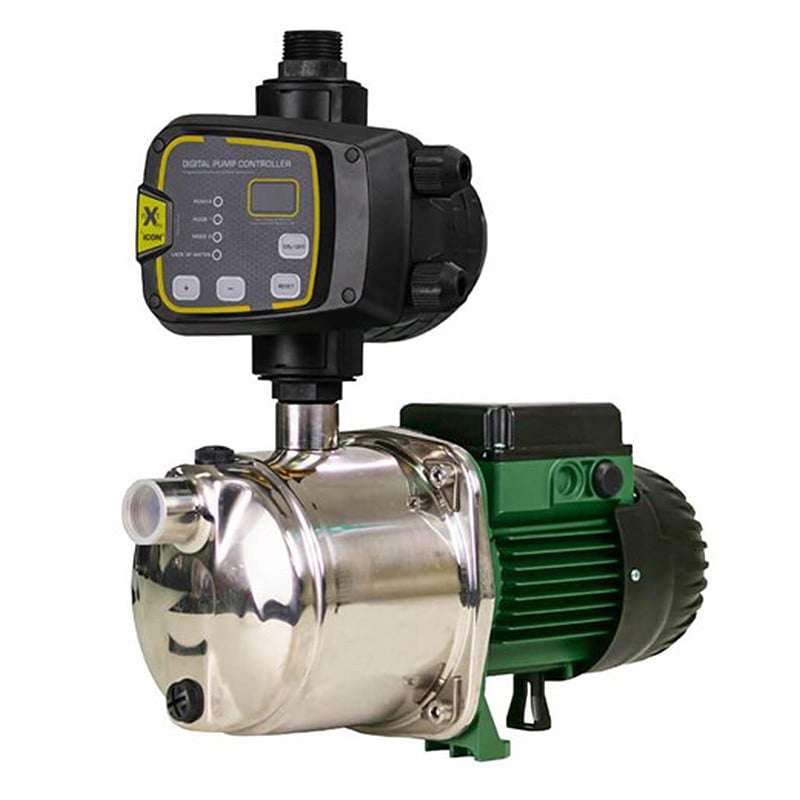

DAB EUROINOX30/50NXTP Pro Stainless Steel Multistage Pump with nXt Controller

SKU:
DAB-EUROINOX30/50NXTP

PRODUCT INFORMATION

DAB EUROINOX30/50NXTP Pro Stainless Steel Multistage Pump with nXt Controller

Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.

FEATURES & BENEFITS

FEATURES OF PUMP

Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal. Rotor shaft in AISI 304 stainless steel. Impeller and diffuser bodies and diffuser in technopolymer. Stainless steel wear ring.

FEATURES OF MOTOR

Asynchronous type, closed, with external air cooling. Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.

CHARACTERISTICS

  • Operating Range: from 10 to 120 litres/min. with head up to 59 m.
  • Liquid Quality Requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral, close to the properties of water.
  • Liquid Temperature Range: from 0°C to +35°C for domestic use (EN 60335-2-41).
  • Maximum Ambient Temperature: +40°C
  • Maximum Operating Pressure: 8 bar (800 kPa)
  • Installation: fixed or portable in a horizontal position.
  • Motor Protection Rating: IP 44
  • Terminal Block Protection Rating: IP 55
  • Insulation class: F
  • Standard Input Voltage: Single phase 220/240 V / 50 Hz Three phase 230/400 V - 50 Hz
  • • Electrical Data: 0.55 kW 3.9A 240V

CONTROLLER

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

CONTROLLER FEATURES

  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection

CONTROLLER MODES

Two operational modes:

  • Mode One - Adjustable cut in pressure setting
    • Controller stops pump when flow drops.
  • Mode Two - Adjustable cut in and cut out pressure
    • Shut down governed by pressure. Requires pressure tank.

TECHNICAL DATA

Brand DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
4.1 Bar
Approval
Drinking Water Approval
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
80 L/min
Hp
0.75 Hp
kPa 413
Kilo Watts
0.55 kW
Head Range Category
b. 40 - 59 m
Max Head (m) 42.2m
Port Size Inlet
1" BSPF inlet
Port Size Outlet
1" BSPM outlet
Powered Electric
Taps 8
Volts
40 V
Warranty (months)
24 Months
Watts
550 W



nxt PRO CONTROLLER DATA

Function
ON/OFF + Config
Modes
2
Size
2.2Kw
Rated Voltage
220-240V AC
Rated Voltage 16
Rated Power
2200w
Rating IP65
Union Size 1"
Start Pressure Adjustable
Start Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Max Liquid Temp Plug and Play
Max Liquid Temp When sold as control only
Power Cable 10AMP
Power Cable ---
Accessories (Sold Separately)
15 AMP Cable | 1 ¼” Union Kit
