PRODUCT INFORMATION

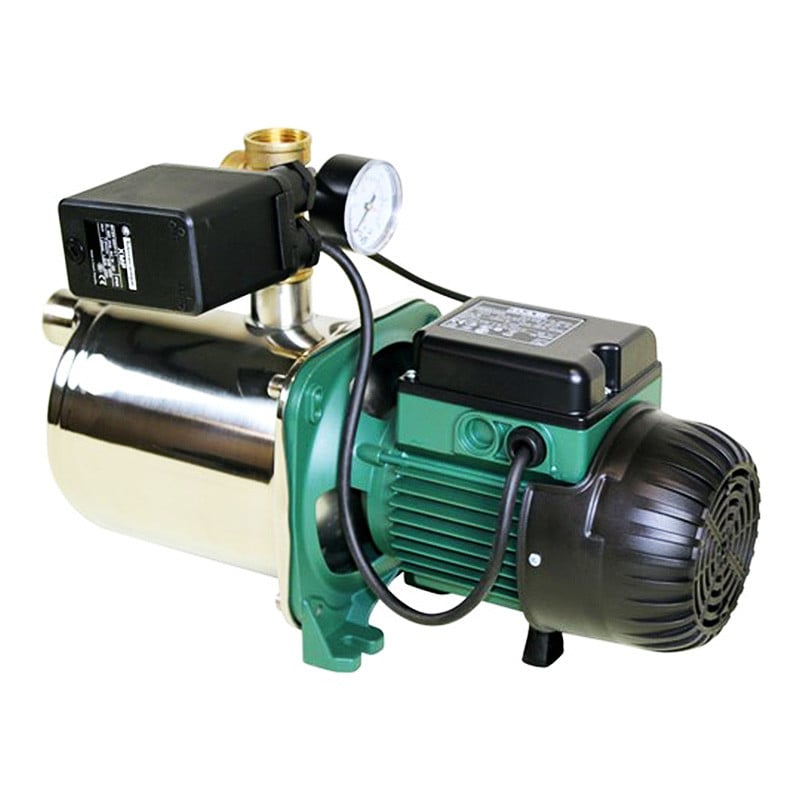

DAB EUROINOX40/50MP Stainless Steel Multistage Pump With Pressure Switch
Ideal for small to large homes, irrigation systems, caravan parks and schools.
Quality pressure switch, adjustable differential, cable glands and liquid filled pressure gauge.
APPLICATIONS
Multi-stage centrifugal pump with horizontal shaft, with excellent suction capacity even in the presence of air bubbles, featuring extremely quiet
operation suitable for domestic water supply and pressurisation, irrigation of gardens and general water movement.
FEATURES & BENEFITS
CONSTRUCTIONAL FEATURES OF THE PUMP
Pump body in stainless steel. Motor support in die cast aluminium, with seal holder cover in AISI 304 stainless steel. Carbon/ceramic mechanical seal.
Rotor shaft in AISI 304 stainless steel.
Impeller and diffuser bodies and diffuser in technopolymer.
Stainless steel wear ring.
CONSTRUCTIONAL FEATURES OF THE MOTOR
Asynchronous, continuous service motor.
Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
Overload protection to be provided by the user for the three-phase version.
TECHNICAL DATA
| Brand | DAB Pumps |
| Product Type |
Pressure System |
| Suitable For |
Clean Water |
| Bar |
5.77 Bar |
| Approval |
Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
80 L/min |
| Hp |
1.1 Hp |
| kPa | 585 kPa |
| Kilo Watts |
0.8 kW |
| Head Range Category |
b. 40 - 59 m |
| Max Head (m) | 57.7 m |
| Port Size Inlet |
1" BSPF inlet |
| Port Size Outlet |
1" BSPM outlet |
| Powered | Electric |
| Taps | 8 |
| Volts |
240 V |
| Warranty (months) |
24 Months |
| Watts |
800 W |
