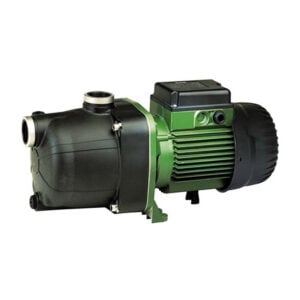

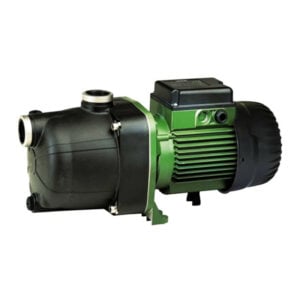

DAB JETCOM102NXT Pro Technopolymer Self Priming Jet Pump With NxT Pro Controller
Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.
Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services, and wherever self-priming operation is necessary.
Constructional features of the pump
Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.
FEATURES & BENEFITS
FEATURES OF MOTOR
Asynchronous type, closed, with external air cooling.
Rotor mounted on oversized greased-for-life ball bearings, to guarantee low noise and long life. Incorporated thermo-amperometric protection and permanently inserted capacitor in the single phase version.
It is recommended to use overload protection for three phase motor protection, in compliance with current legislation. Manufactured pursuant to CEI 2-3 and CEI 61-69 (EN 60335-2-41).
CHARACTERISTICS
- Operating Range: from 7 to 70 litres/min with head up to 54 metres.
- Liquid Quality Requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive,uncrystallised and chemically neutral.
- Liquid Temperature Range: from 0°C to +35°C for domestic use (EN 60335-2-41).
- Maximum Ambient Temperature: +40°C
- Maximum Operating Pressure: 6 bar (600 kPa)
- Maximum Suction Depth: 8 metres.
- Installation: fixed in a horizontal position
- Motor Protection Rating: IP 44
- Terminal block Protection Rating: IP 55
- Insulation class: F
- Standard Input Voltage: Single phase 220/240 V / 50 Hz Three phase 230/400 V - 50 Hz
- Electrical Data: 0.75 kW 5.1A 240V
TECHNICAL DATA
| Brand | DAB Pumps |
| Product Type |
Pressure System |
| Suitable For |
Clean Water |
| Bar | 5.3 |
| Approval |
Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
60 L/min |
| Float | No |
| Hp |
1.0 HP |
| Kilo Watts |
0.75 |
| Head Range Category |
b. 40 - 59 m |
| Max Head (m) | 53.8 |
| Port Size Inlet |
1" BSPF inlet |
| Port Size Outlet |
1" BSPM outlet |
| Powered | Electric |
| Taps |
6 Taps |
| Volts |
240 V |
| Warranty (months) |
24 Months |
| Watts | 750 |
DRAWINGS
 |
 |
LITERATURE
 |
DAB JETCOM102NXT Pro Technopolymer Self Priming Jet Pump With NxT Pro Controller Brochure |
