PRODUCT INFORMATION

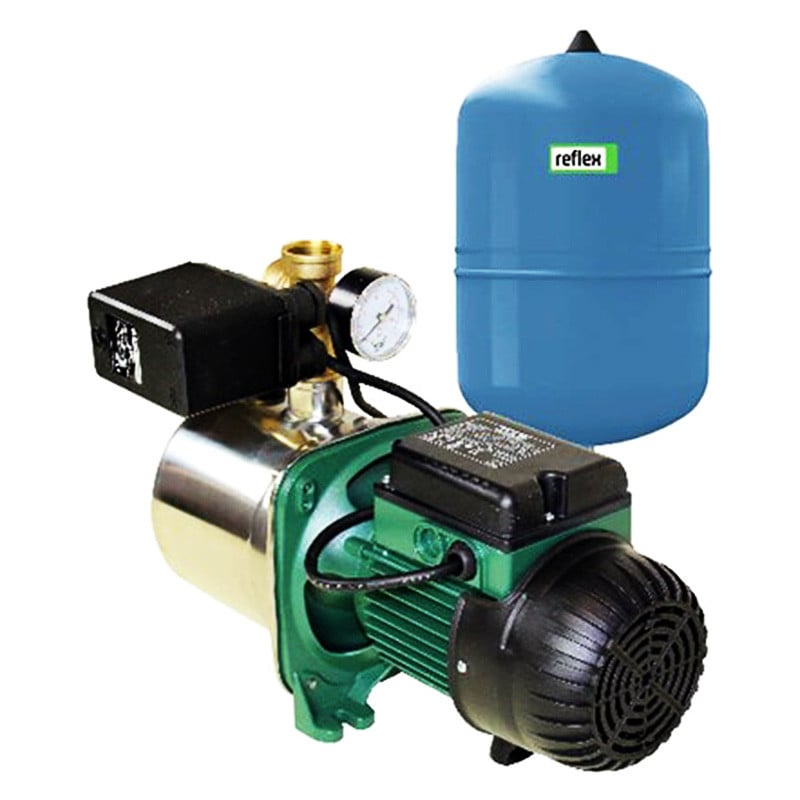

DAB JINOX102MP-18V Stainless Steel Self Priming Jet Pump With Pressure Switch & 18L Tank
Includes a Reflex DE18 Pressure Tank
Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.
Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services, and wherever self-priming operation is necessary.
FEATURES & BENEFITS
Constructional features of the pump
Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.
TECHNICAL DATA
| Brand | DAB Pumps |
| Product Type |
Pressure System |
| Suitable For |
Clean Water |
| Bar |
5.3 Bar |
| Approval |
Approved For Drinking Water |
| Flow Range Category |
a. 0 - 99 L/min |
| Flow Rate (L/min) |
60 L/min |
| Hp |
1 Hp |
| kPa | 527 kPa |
| Kilo Watts |
0.75 kW |
| Head Range Category |
b. 40 - 59 m |
| Max Head (m) | 53.8 m |
| Port Size Inlet |
1" BSPF inlet |
| Port Size Outlet |
1" BSPM outlet |
| Powered | Pressure Switch |
| Taps | 6 Taps |
| Volts |
240V |
| Warranty (months) |
24 Months |
| Watts |
750W |
DRAWINGS
 |
 |
LITERATURE
 |
DAB JINOX102M Stainless Steel Self Priming Jet Pump Brochure |
