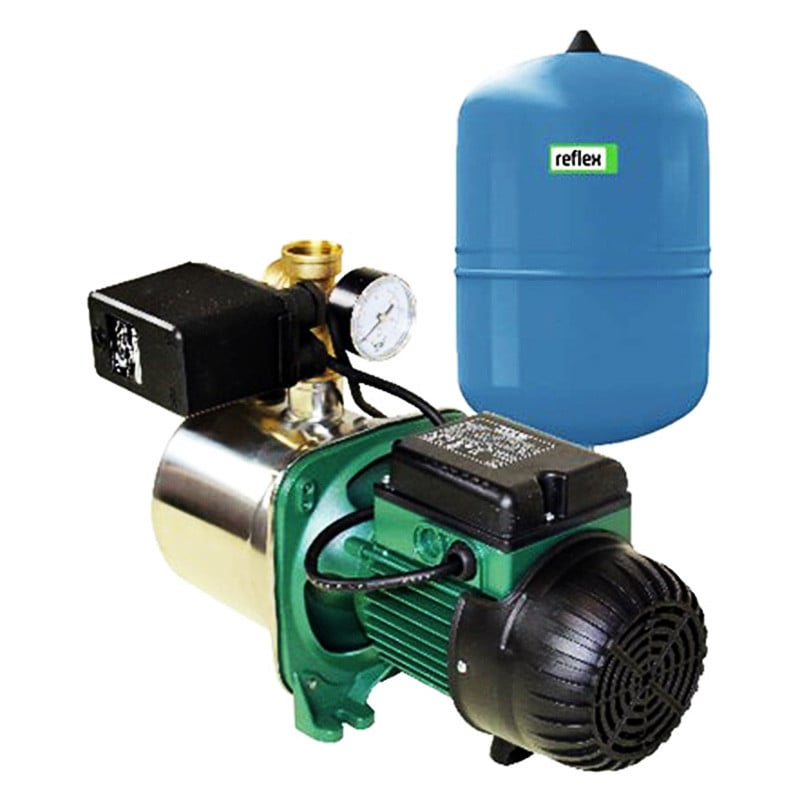

DAB JINOX132MP-18V Stainless Steel Self Priming Jet Pump With Pressure Switch & 18L Tank

SKU:
DAB-JINOX132MP-18V

PRODUCT INFORMATION

DAB JINOX132MP-18V Stainless Steel Self Priming Jet Pump With Pressure Switch & 18L Tank

Includes a Reflex DE18 Pressure Tank

Self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.

Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services, and wherever self-priming operation is necessary.

FEATURES & BENEFITS

Constructional features of the pump
Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.

TECHNICAL DATA

Brand DAB Pumps
Product Type
Pressure System
Suitable For
Clean Water
Bar
4.7 Bar
Approval
Approved For Drinking Water
Flow Range Category
a. 0 - 99 L/min
Flow Rate (L/min)
80 L/min
Hp
1.36 Hp
kPa 470 kPa
Kilo Watts
1 kW
Head Range Category
b. 40 - 59 m
Max Head (m) 48 m
Port Size Inlet
1" BSPF inlet
Port Size Outlet
1" BSPM outlet
Powered Pressure Switch
Taps 8 Taps
Volts
240V
Warranty (months)
24 Months
Watts
1000

DRAWINGS

LITERATURE

DAB JINOX132MP-18V Stainless Steel Self Priming Jet Pump With Pressure Switch & 18L Tank DAB JINOX132MP-18V Stainless Steel Self Priming Jet Pump With Pressure Switch & 18L Tank Brochure
