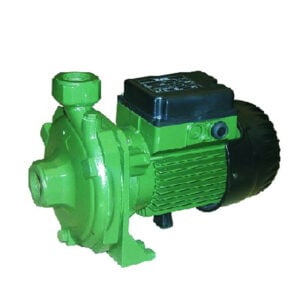

DAB K45-50T Centrifugal Twin Impeller Pump 110L/Min 415V

SKU:
DAB-K45-50T

PRODUCT INFORMATION

DAB K45-50T Centrifugal Twin Impeller Pump 110L/Min 415V

Ideal for rivers, tanks, dams and water transfer applications.

APPLICATIONS

Twin Impeller Centrifugal PumpsIdeal for rivers, tanks, dams and water transfer applications.

FEATURES & BENEFITS

CONSTRUCTION FEATURES OF THE PUMP.

Pump body and motor support in cast iron.

Technopolymer or cast iron impeller, as per the Technical Data table.

Carbon/ceramic mechanical seal.

CONSTRUCTION OF THE MOTOR

Closed asynchronous type, external ventilation cooling.

Rotor running on ball bearings, oversized to ensure low noise and durability.

Standard built-in thermo-amperometric protection. Capacitor permanently on single phase versions.

For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with the current local regulations.

Construction account to CEI 2-3

IE2 motors as standard, from 0,75 kW to 55 kW-IE3 >_7,5 kW.

TECHNICAL DATA

Brand DAB Pumps
Product Type
Twin Impeller Cast Iron Pump
Suitable For
Water Transfer
Bar
5.1 Bar
Flow Range Category
b. 100 - 199 L/min
Flow Rate (L/min)
110 L/min
Hp
1.5 Hp
kPa 517 kPa
Kilo Watts
1.1 kW
Casing Material Cast Iron
Head Range Category
b. 40 - 59 m
Max Head (m) 51 m
Port Size Inlet
1 1/4" BSPF inlet
Port Size Outlet
1" BSPM outlet
Powered Electric
Volts
415 V
Warranty (months)
24 Months
Watts
1100

DRAWINGS

LITERATURE

DAB K45-50T Centrifugal Twin Impeller Pump 110L/Min 415V DAB K45-50T Centrifugal Twin Impeller Pump 110L/Min 415V Brochure
