PRODUCT INFORMATION
DAB Rainsaver MK4E Change Over Device & DAB E.SYBOX
E.syline, a complete line of electronic booster pump solutions that redefines the rules of residential water pressurisation. With two models, e.syline is a series of fully integrated pump systems and accessories. Designed to create a modular and flexible solution that meets a wide range of applications: from a small residence to a large complex of apartments
FEATURES & BENEFITS
DAB Rainsaver MK4E Change Over Device & DAB E.SYBOX
- Rainsaver MK4E Changeover Device.
- 2 Year Rainsaver MK4E Infield Warranty
- Designed to operate with pumps up to 800kPa.
- 100L/m flow.
- 12V Low voltage Float.
- WaterMark approved for connection to all town water supplies.
- Aesthetically designed and requires no weather proofing.
- IP33
- For self controlled pumps up to 1.5hp, 1.1kW, 240V.

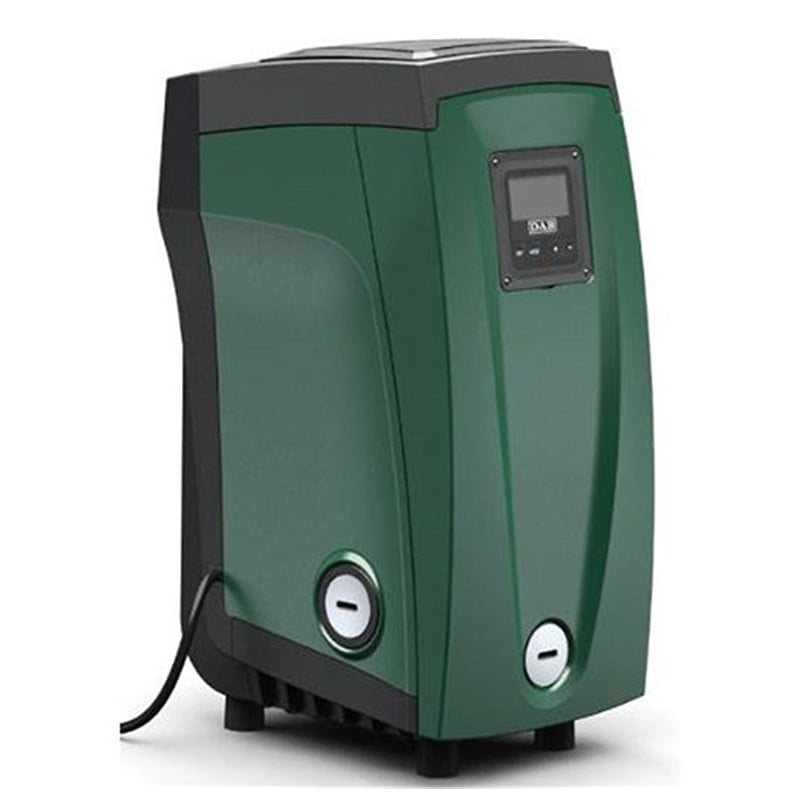

e.sybox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.
SPECIAL FEATURES
- Energy efficient
- It can be installed in vertical or horizontal position, in a ventilated room or in a recess
- Quiet operation - 45 dB in standard use
- Saves 30% of space in comparison with a traditional system
- Easy maintenance
- Wireless device to facilitate the creation of pressure booster sets and for connection to other devices
TECHNICAL DATA
Brand | DAB Rainsaver |
Product Type |
Pressure System |
Suitable For |
Rainwater Harvesting |
Bar |
6.1 Bar |
Approval |
Approved For Drinking Water |
Flow Range Category |
b. 100 - 199 L/min |
Flow Rate (L/min) |
120 L/min |
Hp |
2.1 Hp |
kPa | 618 kPa |
Kilo Watts | 1.55 kW |
Head Range Category | c. 60 - 99 m |
Max Head (m) | 61 m |
Taps | 2 Taps |
Volts | 240 V |
Watts | 1550 W |
LITERATURE
DAB Rainsaver MK4E Change Over Device & DAB E.SYBOX Brochure |
