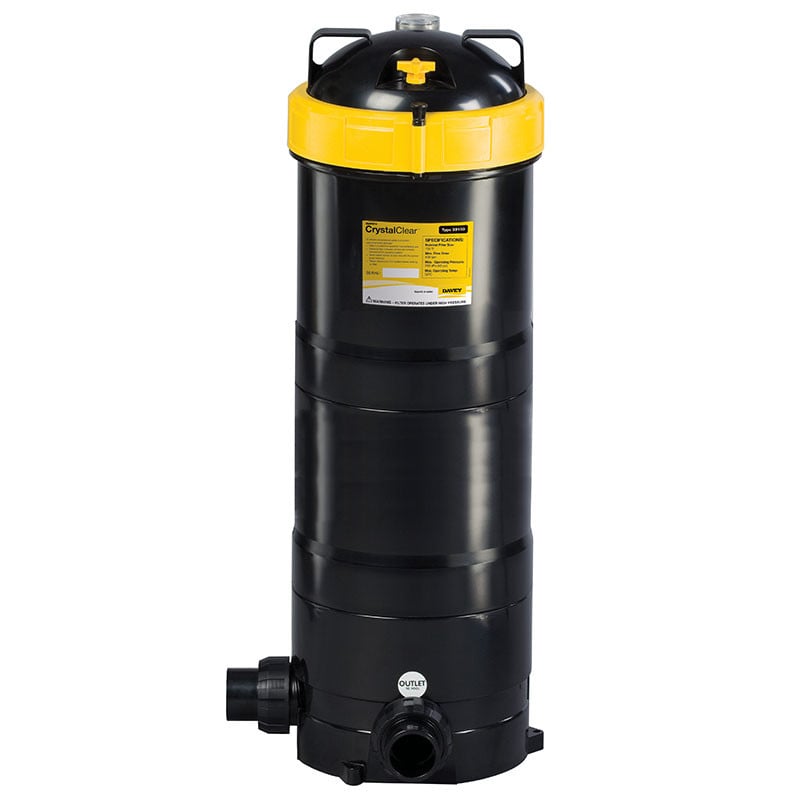

Davey CrystalClear® 39075 Cartridge Filter

SKU:
39075

PRODUCT INFORMATION

For 88 years and still counting, Davey has been manufacturing products that help protect and enhance people’s lives. Whether you need perfect pressure, healthy drinking water, protection from fire and flood, a clean, relaxing pool or spa, or water to run your farm or business, you can depend on Davey.

Traditionally servicing the domestic water pumping, water treatment and swimming pool & spa markets, Davey has in recent years expanded its focus and product portfolio to include the commercial pumping, irrigation and commercial pool markets. Backed by specialists in our commercial team, we can also design customised systems to suit project requirements.



FEATURES & BENEFITS

CARTRIDGE FILTERS

  • Davey CrystalClear cartridge filters are an economic alternative for the water-conscious swimming pool or spa pool owner
  • Easy to use, filter elements are cleanable and reusable over and over
  • Made from high quality materials, selection is based on the size of your pool or spa

TECHNICAL DATA

OPERATING PERFORMANCE

Model
Maximum Flow Rate (lpm) 8 Hour Turnover (litres) 6 Hour Turnover (litres)
Replacement Element
39050 205 98,400 73,800 Q2310SP
39075 270 129,600 97,200 Q2311SP
39100 400 163,200 122,400 Q2312SP
39150 450 216,000 162,000 Q2313SP
39175 540 259,200 194,400 Q2311SP & Q2312SP
39225 670 321,600 241,200 Q2311SP & Q2313SP



NOMINAL FILTER SIZE

39050 50 ft2
39075 75 ft2
39100 100 ft2
39150 150 ft2
39175 175 ft2
9225 225 ft2



CARTRIDGE FILTER REPLACEMENT ELEMENTS

Model
Nominal Filter Size Product Group Filter Suitability Height (mm)
Diameter (mm) Hole Dia. (mm)
Q2226* 75 ft2 3049 EcoPure, Post 1997 CF75 & SQ Series 2000 375 185 75
Q2227* 100 ft2 3049 EcoPure Q2203MN,Pre 1997 CF75, Post 1997 CF100 & SQ Series 2000 555 185 75
Q2228* 150 ft2 3049 EcoPure Q2204MN, Pre 1997 CF100 & SQ Series 2000, Post 1997 CF150 735 185 75
Q2310 50 ft2 3051 CrystalClear, 39050, SQ Series 3000 283 208 102
Q2311 75 ft2 3051 CrystalClear, 39075, SQ Series 3000 283 230 102
Q2312 100 ft2 3051 CrystalClear, 39100, SQ Series 3000 385 230 102
Q2313 150 ft2 3051 CrystalClear, 39150, SQ Series 3000 573 230 102
Q2311 plus Q2312 175 ft2 3051 CrystalClear, 39175, SQ Series 3000 Refer to specifications above Refer to specifications above Refer to specifications above
Q2311 plus Q2313 225 ft2 3051 CrystalClear, 39225, SQ Series 3000 Refer to specifications above Refer to specifications above Refer to specifications above

*40/50mm tail on unions allow connection of a DN40 PVC pipe or into the socket/collar of a DN50 PVC pipe.

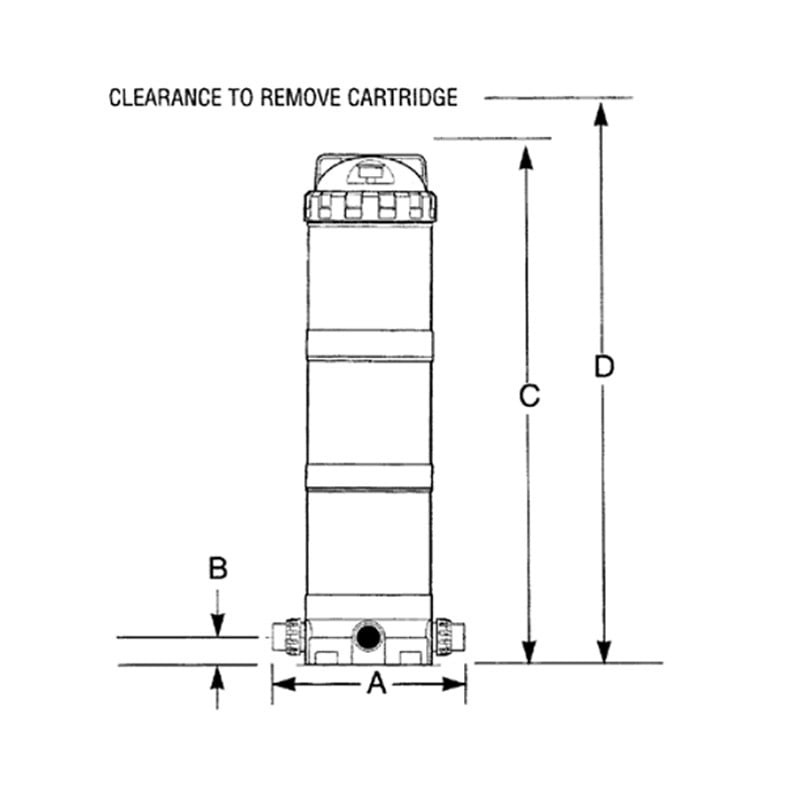

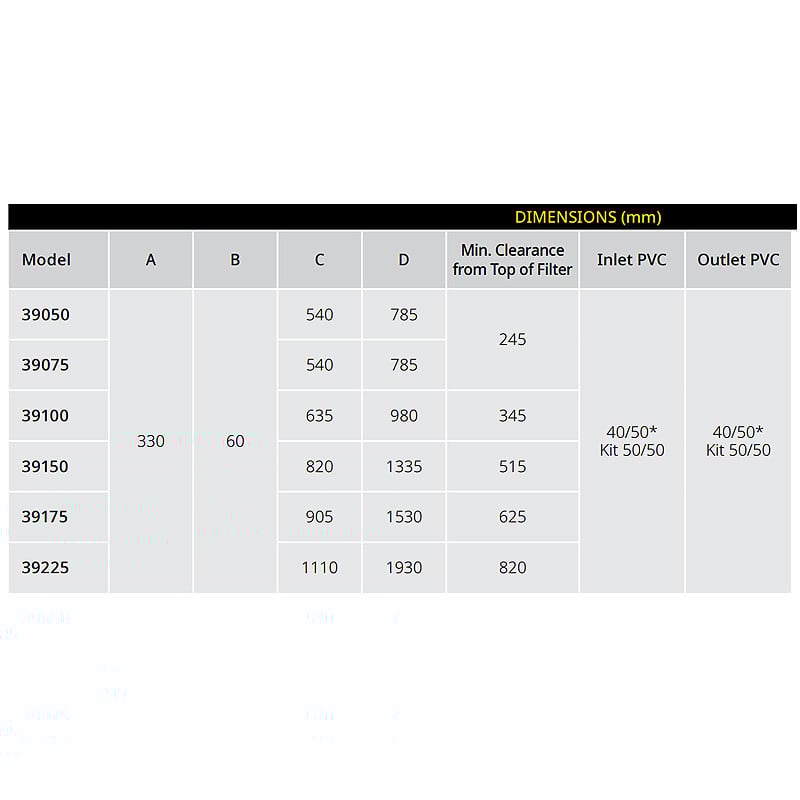

DRAWINGS

LITERATURE

Davey CrystalClear 39075 Cartridge Filter Brochure Davey CrystalClear 39075 Cartridge Filter Brochure
