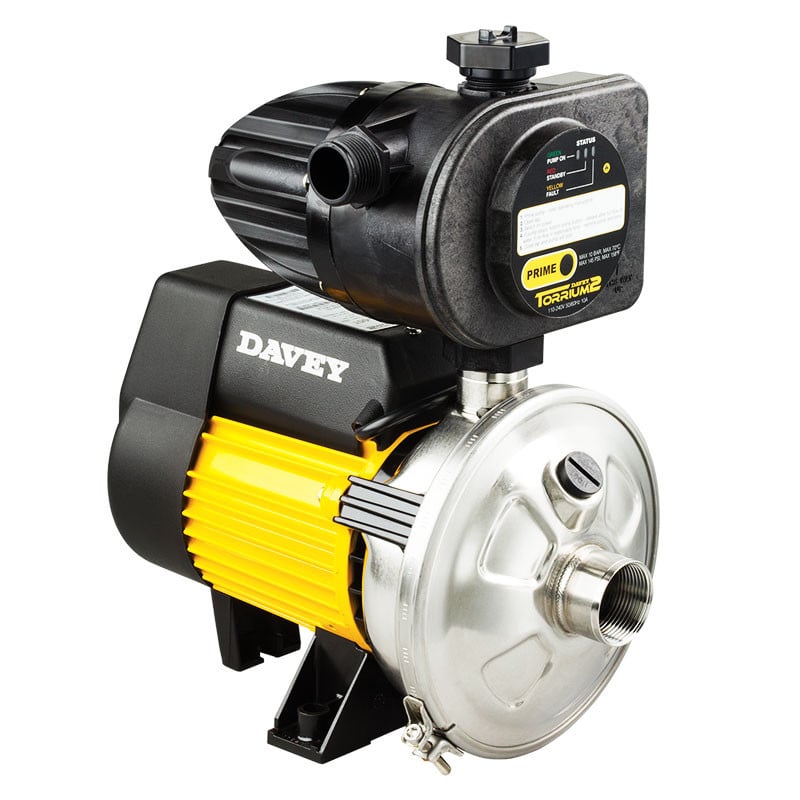

PRODUCT INFORMATION
The economical HM range with Torrium2 allows for maximum flow rates of 250 lpm, and up to 69m head, the HM range has axial suction and vertical discharge with a compact design for ease of install.
Applications
- Household and domestic water supply
- Farming and agricultural water systems
- Irrigation and turf watering systems
- Automatic general water transfer
FEATURES & BENEFITS
Horizontal multistage centrifugal pump with all hydraulic parts in stainless steel:
- Suitable for high water temperatures
- Corrosion & wear resistant
Axial suction & vertical discharge:
- Compact design
- Easy to install
Stainless steel impellers with high efficiency impeller profile
and thick self-centring impeller neck rings for:
- High efficiency
- Reduced power consumption
- Low noise output
Air purging valve and stage porting:
- Easier priming
- Less susceptible to air leaks
- Improved dependability
Impellers mounted directly on extended motor shaft:
- Maximise performance per stage
- High efficiency
- Long motor & pump life
- Increased wear resistance
Pump casing assembly attached to motor bracket at 8 points with o-ring seal:
- Complete stainless casing
- Better sealing
- Longer service life
Davey built, totally enclosed fan cooled (TEFC) electric motor:
- Single-phase motors have built in thermal overload protection with automatic reset and 1.8m long power lead and Australian 3 pin plug.
- Sealed and greased for life motor bearings
- Over sized drive bearing
- Longer life
- Easy service
- Economical & quiet running
TECHNICAL DATA
OPERATING LIMITS
| Maximum continuous flow rate | 200 lpm |
| Maximum operating pressure | 700 kPa* |
| Maximum current | 10 amp |
| Cut-in pressure range | 80% of pump shut-off head |
| Maximum water temperature | 65ºC |

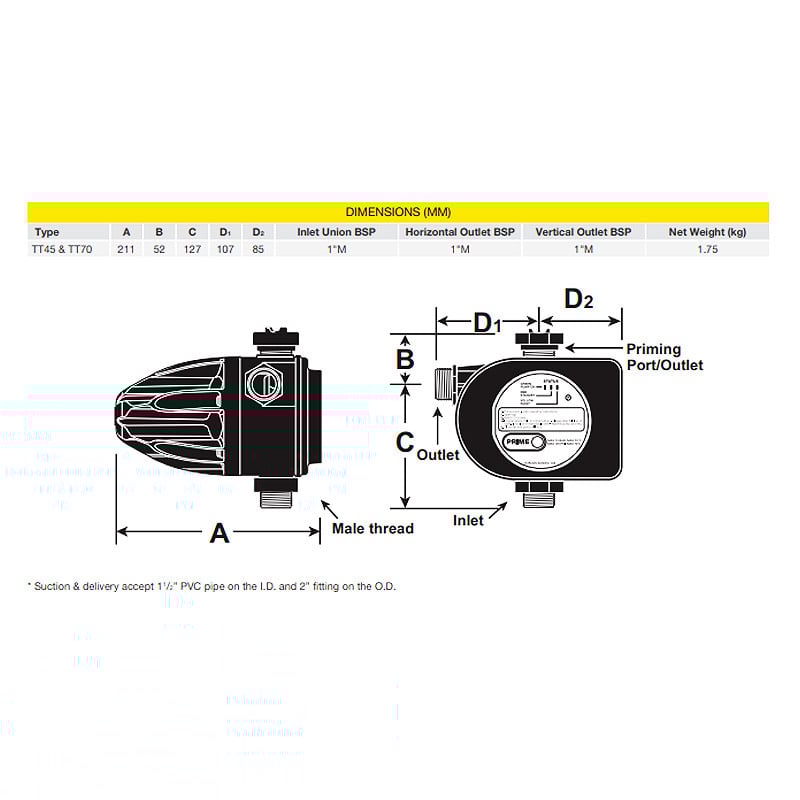

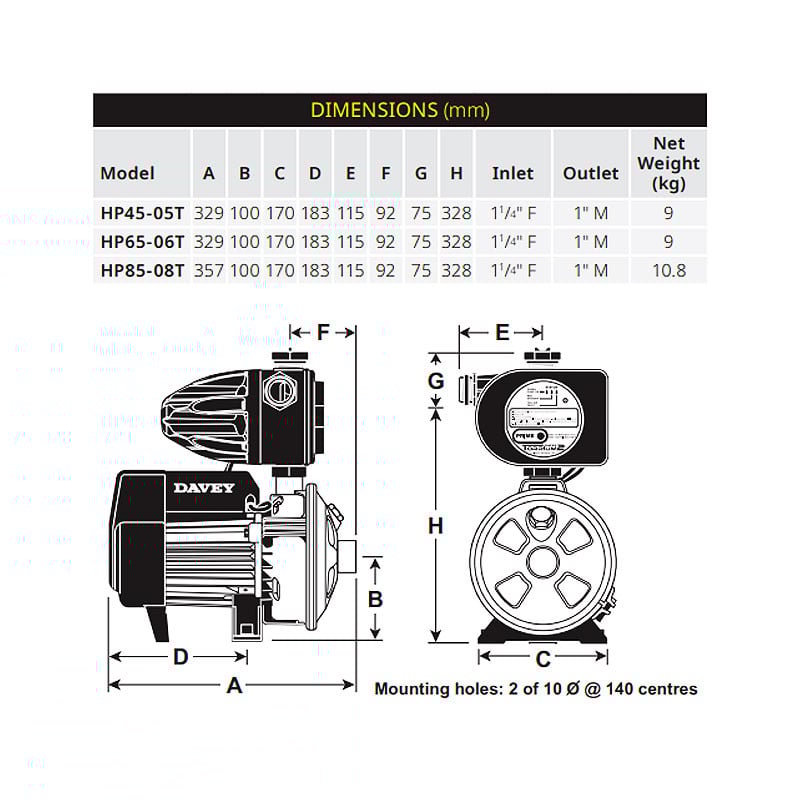

DRAWINGS
 |
 |
LITERATURE
 |
Davey HP65-06T Multistage Pressure Pump Brochure |
