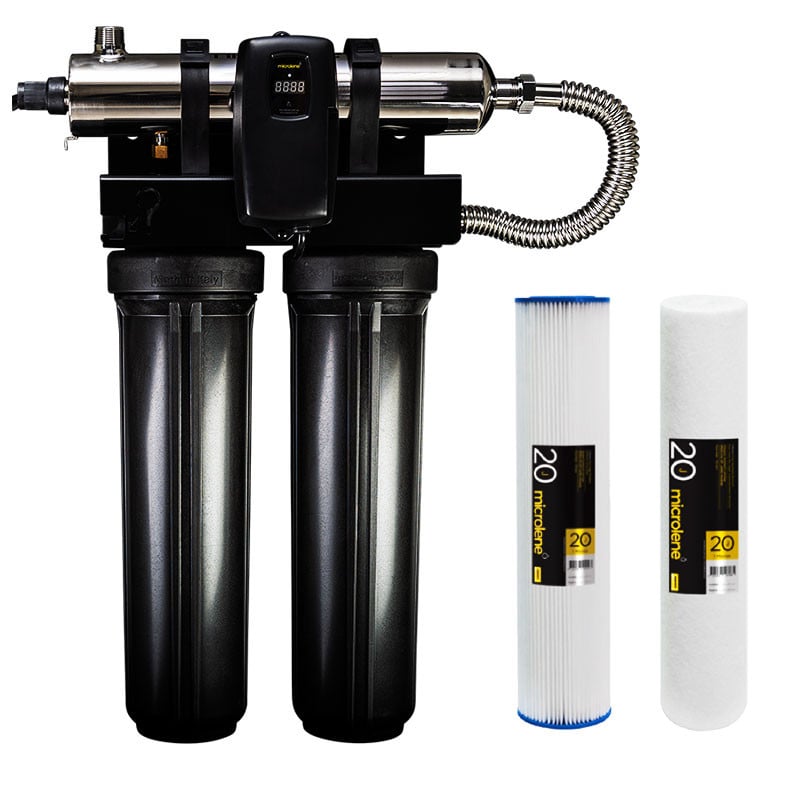

Davey KMCS Microlene 3 Stage UV System



Centurion Smart Wall mounted 3 Stage UV System


Filtration and disinfection of:

  • Rainwater
  • Bore or surface water – subject to water quality Suits small to medium homes potable water supply

Industry leading warranty:

  • 10 years on stainless UV chamber
  • 3 years on electronic controller
  • 14 months on lamps, sensors and sleeves
  • 12 months on filter housings


Microlene's proven three-stage filtration and ultraviolet disinfection systems can provide continuous clean and safe water from your rainwater tanks. Note: Microlene disinfection systems cannot remove dissolved metals, chemicals or toxins from the water. Additional treatment is required for these contaminants.

In conjunction with pre-filtration, UV is the best practical option for treating drinking water and is widely used in disinfecting the drinking supplies of not just individual homes, but entire towns.

Simplistic in operation, these systems feature a tricolour LED that indicates system status and a 4-digit display to indicate lamp life remaining. Pressing the button will change the display to indicate total running time. When the UV lamp is on and within its operating age, the LED will be green. When the UV lamp is not on or the lamp life has expired, the LED will be illuminated red and an audible buzzer will be sounding. To remedy this condition, the UV lamp must be replaced with a new genuine Microlene UV lamp.

Centurion MCS features:

  • Special filter design with O-ring groove for fail-safe installation
  • High maximum operating pressure 827kPa (120 psi), and single manifold heads (no potential leaks between heads)
  • Tri Colour LED display that indicates system status and a 4-digit display to indicate lamp life remaining
  • 316L stainless steel, axial flow chambers allow for optimum efficiency plus lamp and sleeve service without the need to drain the water
  • Coated UV lamps for consistent UV output throughout life
  • 10,000 hour LP lamps – longest residential lamplife on the market
  • Ready for quick installation and use
  • 10 year limited warranty on UV chambers
  • Splash-proof controller with constant current electronic ballast designed to IP54 ingress protection rating

Note: Cannot treat water contaminated by metals, chemicals or algal toxins.



Flow Rates (subject to dosage, UVT and demand %UVT) Recommended 56.8 l/min @ 30mJ As a general guide, most households do not exceed 50 lpm demand at the same time. For example, 3 outlets turned on at the same time at an average flow rate of 9.3 lpm creates a demand of 27.9 lpm (this flow rate through the chamber will in fact increase the mJ UV dosage rate being applied to and treating the water) at this flow rate the water will in fact be treated at 61mJ @ 95% UVT which is over double the industry recommended 30mJ rating.
Maximum system pressure 827kPa (120 PSI)
Water temperature range 0 – 40°C
Maximum ambient temperature 50°C
Lamp life 10,000 hrs (14 months)



UV lamp Replace 14 months
UV quartz sleeve Clean 2 – 6 months



Chamber Polished 316L Stainless Steel A249 pressure rated tubing
Wall mounting bracket Powder coated steel
Chamber connections 1” Male NPT (AU supplied KMCS has BSP adaptor included)
Filter Housing connections 1” Female NPT (AU supplied KMCS has 1” NPT to 1” BSP male nipple included for incoming pipework.



Part code Description
MCS-C Cover
KMCS Complete unit with filter cartridges
20PP20J Poly pleated 20 micron rated cartridge (housing 1)
1PS20J Poly spun 1 micron rated cartridge (housing 2)
MC-HOLP High output UV lamp (O-ring included)
MC-HOSL Quartz sleeve (O-ring included)
MCS-CONT MCS controller
MC-CONT-PC Controller power cord - IEC x AUS/NZ 3 Pin male
DM130033 Temperature Relief Valve - Thermal bleed valve activates when water temperature exceeds 32-35°C
DM160018 Replacement Dual Cap and twin housing assembly
DM310177 Filter housing replacement O-Ring
WFH45 Replacement filter housing spanner
DM310039 Replacement sleeve spring

Note: Keyed technology (lamp key) is not used on the MCS/KMCS Keys found with new lamps can be discarded. Keys are only used with the MCXS/KMCXS Xtra Smart Controller


Supply Voltage 90-265V ~
Supply frequency 50-60Hz
Power (Total) 57W
Phase 1
Lamp 45W
Max input current 0.24A
Max output current 800mA

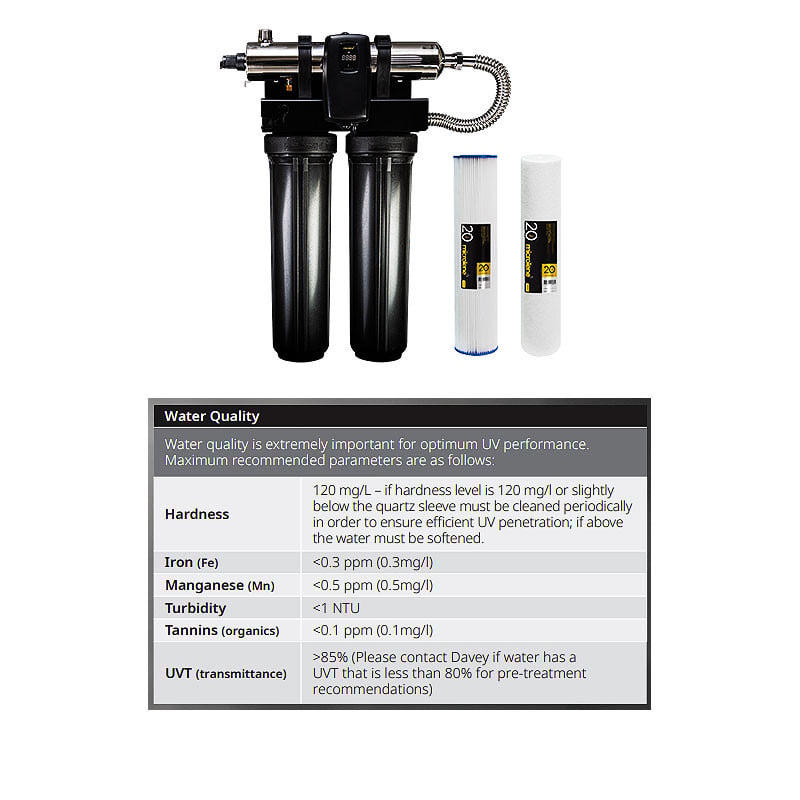

Water quality is extremely important for optimum UV performance. Maximum recommended parameters are as follows:

Hardness 120 mg/L – if hardness level is 120 mg/l or slightly below the quartz sleeve must be cleaned periodically in order to ensure efficient UV penetration; if above the water must be softened.
Iron (Fe) <0.3 ppm (0.3mg/l)
Manganese (Mn) <0.5 ppm (0.5mg/l)
Turbidity <1 NTU
Tannins (organics) <0.1 ppm (0.1mg/l)
UVT (transmittance) >85% (Please contact Davey if water has a UVT that is less than 80% for pre-treatment recommendations)



Flow Rate (@ 16 mJ/cm2 @ 95% UVT) 114 L/min
Flow Rate (@24.2 mJ/cm2 @ 95% UVT) 70 l/min
Flow Rate (@ 30 mJ/cm2 @ 95% UVT) 56.8 L/min
Flow Rate (@ 40 mJ/cm2 @ 95% UVT) 45.4 L/min

NOTE: Flow rates are based on flow velocity of 8.2 ft/sec (2.5 m/sec), flow rate limited to 84 L/min for 1" port before significant pressure drop is realised.
