PRODUCT INFORMATION
Ultra Violet Water Disinfection Kits
Davey Microlene UV water disinfection kits are a proven 3 stage treatment solution for a safe and effective means of eliminating harmful bacteria from drinking water supplies.
- Kit options utilising separate housings and UV units provide flexibility for installs where rack systems may not be suitable. Also allows for easy add-ons such as an additional single housing for utilising a carbon filter for taste and odour if required.
- Filtration and disinfection of rainwater
- Small cottage through to large homes and small commercial applications.
- Suitable for bore and surface water – subject to water quality
FEATURES & BENEFITS
Benefits of Microlene's UV Systems and Housing Kits

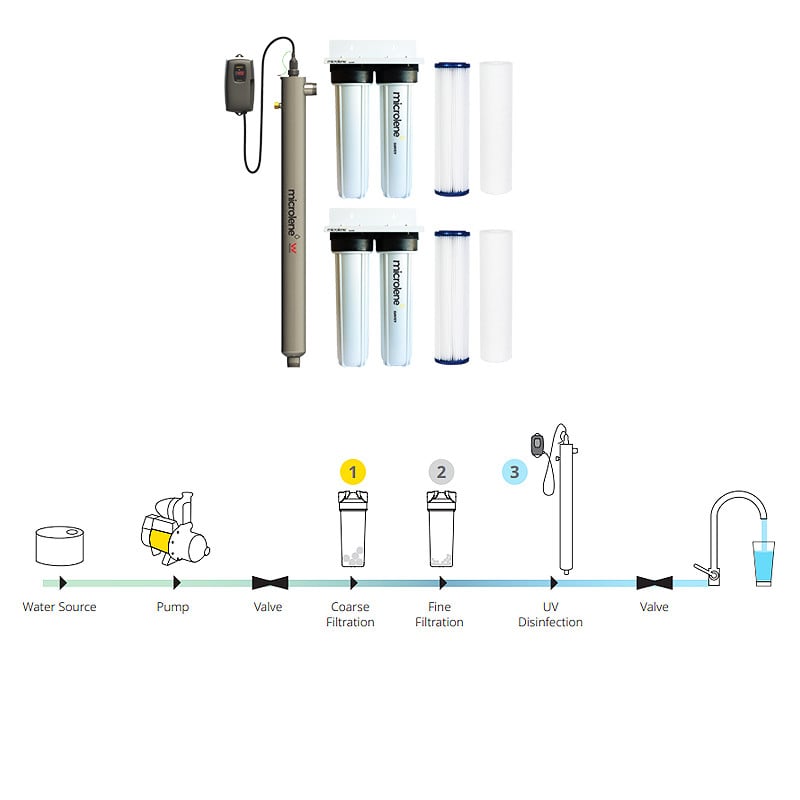

Microlene’s proven three-stage Filtration and Ultraviolet disinfection kits can provide continuous clean, safe and fresh tasting water from your rainwater tank. In conjunction with pre-filtration, UV is the best practical option for treating drinking water and is widely used in disinfecting the drinking supplies of not just individual homes, but entire towns.

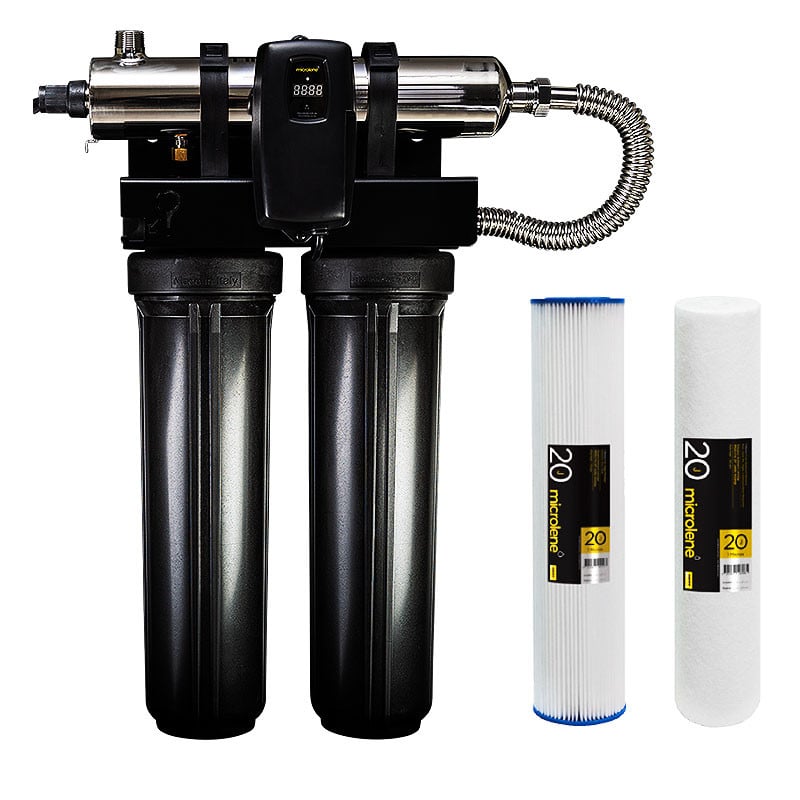

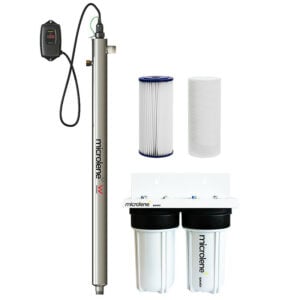

The KUV kits are supplied as individual components for flexibility during installs where a normal rack system may not be suitable. The UV kits consists of:
- 20 micron pre-filtration for the removal of dirt, rust, sediment and debris reduction step 1
- 1 micron depth filtration for parasitic cyst reduction and further sediment reduction to reduce ‘shadowing’ of pathogens step 2
- Microlene UV water disinfection kits with low pressure lamp and tube quartz sleeve for easy cleaning and high performance step 3
- Universal flow direction. Flexibility for installing in the space and direction as required.
- LED lamp count down timer and audible alarm, with set limit of 9,000 hours continuous use on UV24, UV57, UV80 (which is 12 months), and 10,000 hours continuous use on the UV151 (14 months) ensuring only disinfected water is delivered*
- Microlene kits should be connected via PVC plumbing which is not included with the kits as every install is different.
Note: Cannot treat water contaminated by metals, chemicals or algal toxins. *Subject to routine maintenance outlined
TECHNICAL DATA
OPERATING LIMITS
| Model |
KUV24 | KUV57A | KUV80A | KUV151A |
| Flow | Standard Output | Standard Output | Standard Output | High Output |
| 16mJ/cm2 @ 95% UVT | 41 lpm | 110 lpm | 150 lpm | 295 lpm |
| 30mJ/cm2 @ 95% UVT | 23 lpm | 57 lpm | 79 lpm | 151 lpm |
| 40mJ/cm2 @ 95% UVT | 17 lpm | 45 lpm | 59 lpm | 120 lpm |
| Max System Pressure | 860kPa (125psi) | 860kPa (125psi) | 860kPa (125psi) | 860kPa (125psi) |
| Electrical | 90-265V/50-60Hz. 1A Max. | 90-265V/50-60Hz. 1A Max. | 90-265V/50-60Hz. 1A Max. | 90-265V/50-60Hz. 1A Max. |
| Operating Water Temperature | 0 - 40° C | 0 - 40° C | 0 - 40° C | 0 - 40° C |
| Maximum Ambient Temperature | 50° C | 50° C | 50° C | 50° C |
| Lamp Life (Hours) | 9,000 | 9,000 | 9,000 | 10,000 |
SERVICE
Intervals will vary depending on incoming water quality
| 20 micron Poly Pleated filter | Wash every 3 months, replace every 12 |
| 1 micron Polyspun filter | Non-washable, replace every 6 – 12 months |
| UV Lamp | Replace every 9,000 hours on UV24, UV57 & UV80, and every 10,000 hours on UV151 |
| Quartz Sleeve | Clean every 3 – 6 months |
| Lamp Life (Hours) | 9,000 - 10,000 |
MATERIALS OF CONSTRUCTION
| Part |
Material |
| Filters | |
| Filter housing | Glass reinforced polypropylene |
| 20 micron filter | Pleated polyester fabric |
| 1 micron filter | Polyspun fabric |
| Microlene UV Water Disinfection Unit | |
| Chamber | 304 Stainless Steel (UV151 has 316 Stainless Steel) |
| Lamp | Low pressure – high intensity |
| Sleeve | Quartz |
ELECTRICAL DATA
| Model |
KUV24 | KUV57A | KUV80A | KUV151A |
| Supply Voltage | 90-265V | 90-265V | 90-265V | 90-265V |
| Supply frequency | 50-60Hz. 1A Max | 50-60Hz. 1A Max | 50-60Hz. 1A Max | 50-60Hz. 1A Max |
| Lamp | 22 | 50 | 42 | 101 |
SIZING
| Model |
KUV24 | KUV57A | KUV80A | KUV151A |
| Filter housings | 10” standard (W10PR x 2) | 10” Jumbo (AS10J x 1) | 20” Jumbo (AS20J x 1) | 20” Jumbo (AS20J x 2) |
| Filter housing connections | 20mm (3/4”) F | 25mm (1”) F | 25mm (1”) F | 25mm (1”) F |
| Pre filter | 10” Standard 20 Micron x 1 | 10” Jumbo 20 Micron x 1 | 20” Jumbo 20 Micron x 1 | 20” Jumbo 20 Micron x 2 |
| Secondary filter | 10” Standard 1 Micron x 1 | 10” Jumbo 1 Micron x 1 | 20” Jumbo 1 Micron x 1 | 20” Jumbo 1 Micron x 2 |
| UV Connections | 20mm (3/4”) M | 25mm (1”) M | 25mm (1”) M | 40mm (1½”) M |

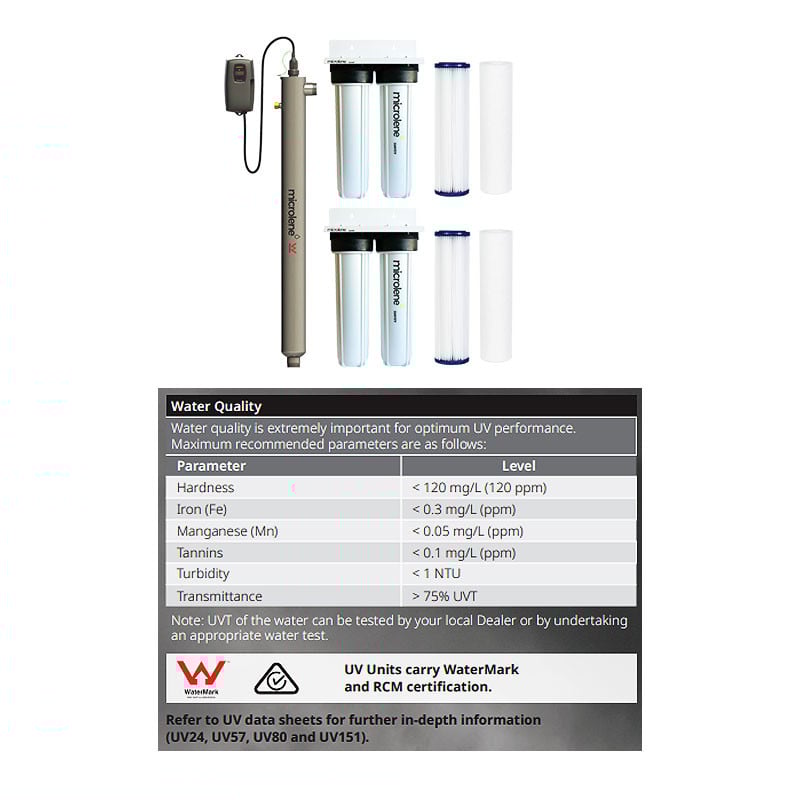

Water quality is extremely important for optimum UV performance. Maximum recommended parameters are as follows:
| Parameter | evel |
| Hardness | < 120 mg/L (120 ppm) |
| Iron (Fe) | < 0.3 mg/L (ppm |
| Manganese (Mn) | < 0.05 mg/L (ppm) |
| Tannins | < 0.1 mg/L (ppm) |
| Turbidity | < 1 NTU |
| Transmittance | > 75% UVT |
Note: UVT of the water can be tested by your local Dealer or by undertaking an appropriate water test.
