FEATURES & BENEFITS

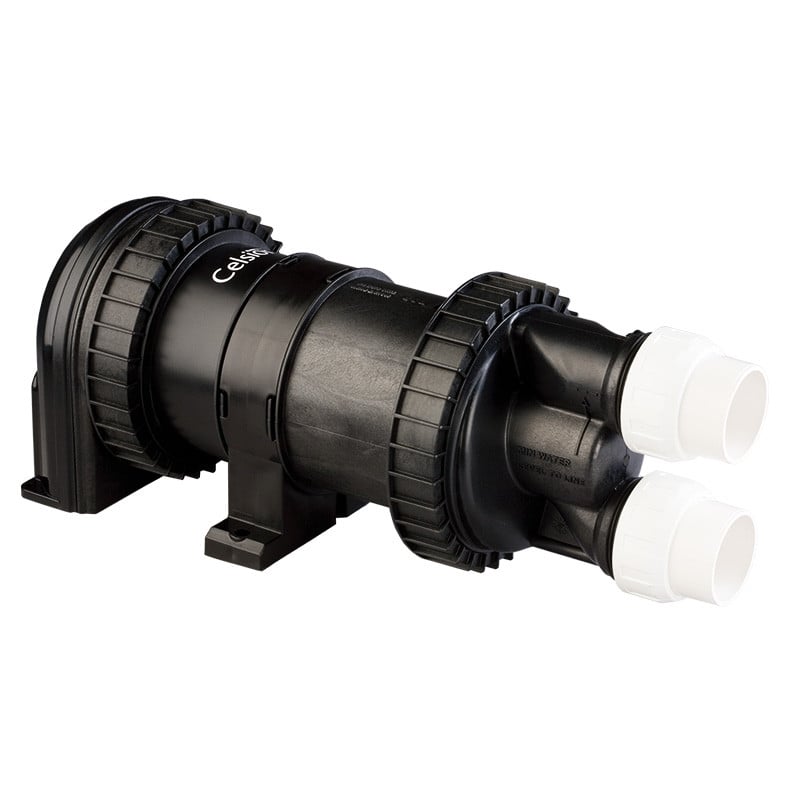

Celsior, SPA BATH PUMP
- Suitable for spa baths containing up to 12 jets
- Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining the water temperature
- Motor jacket design makes them up to 50% quieter than traditional spa bath pumps
TECHNICAL DATA
| Model No. |
Description | Input (HP/W) |
Heater Input (W) |
Effective Heating (W) |
Effective Energy Use (%) |
| Built-in Air Switch Heat Maintenance Pump | Built-in Air Switch Heat Maintenance Pump | ||||
| C200A | Celsior C200A | 0.94-690 | - | 635 | 92 |
| C270A | Celsior C270A | 1.25-930 | - | 869 | 93.4 |
| C400A | Celsior C400A | 2-1500 | - | 1410 | 94 |
| Built-in Air Switch with Boost Heat | Built-in Air Switch with Boost Heat | ||||
| C200AB | Celsior C200AB | 0.94-690 | 1000 | 1635 | 96.6 |
| C270AB | Celsior C270AB | 1.25-930 | 1000 | 1869 | 96.8 |
| C400AB | Celsior C400AB | 2-1500 | 1000 | 2410 | 96.4 |
| Electronic Touchpad Controlled with Boost Heat (Ensure touchpad & overlay are ordered as separate items – refer below) | Electronic Touchpad Controlled with Boost Heat (Ensure touchpad & overlay are ordered as separate items – refer below) | ||||
| C200TB | Celsior C200TB | 0.94-690 | 1000 | 1635 | 96.6 |
| C270TB | Celsior C270TB | 1.25-930 | 1000 | 1869 | 96.8 |
| C400TB | Celsior C400TB | 2-1500 | 1000 | 2410 | 96.4 |
A = Air Button Controlled Heat Maintenance Pump, B = Boost Heat In-built Heater Element, T = Touchpad Controlled
| Model No. | Description |
| Touchpad Controls | |
| TBCS | Touchpad Kit, Chrome – Includes overlay, chrome clip on cover & 3m lead |

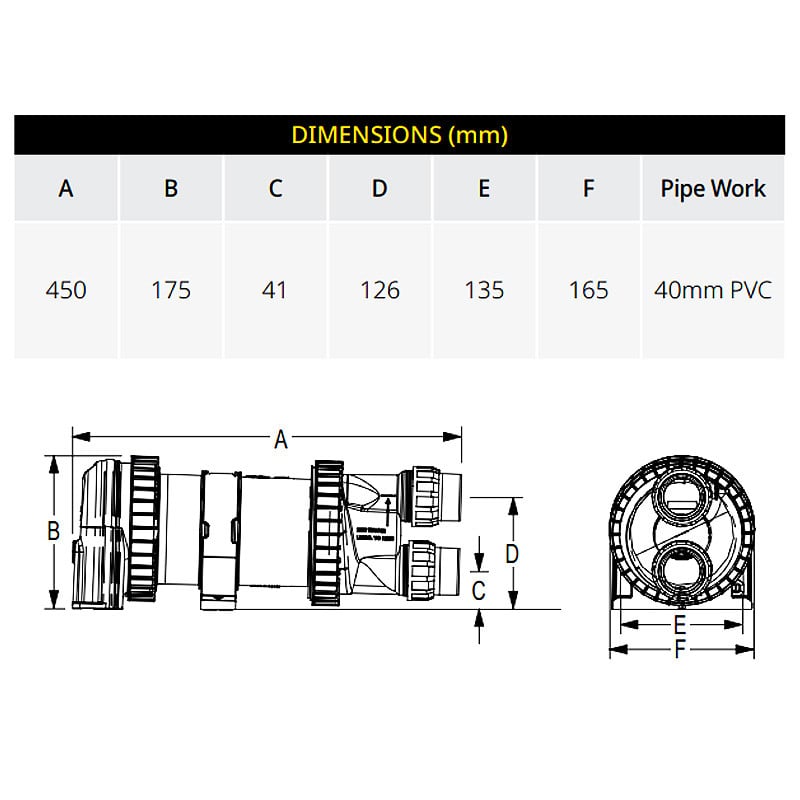

DRAWINGS
 |
 |
LITERATURE
 |
Davey Celsior C270A Spa Bath Pump Brochure |
