PRODUCT INFORMATION
For 88 years and still counting, Davey has been manufacturing products that help protect and enhance people’s lives. Whether you need perfect pressure, healthy drinking water, protection from fire and flood, a clean, relaxing pool or spa, or water to run your farm or business, you can depend on Davey.
Traditionally servicing the domestic water pumping, water treatment and swimming pool & spa markets, Davey has in recent years expanded its focus and product portfolio to include the commercial pumping, irrigation and commercial pool markets. Backed by specialists in our commercial team, we can also design customised systems to suit project requirements.
FEATURES & BENEFITS

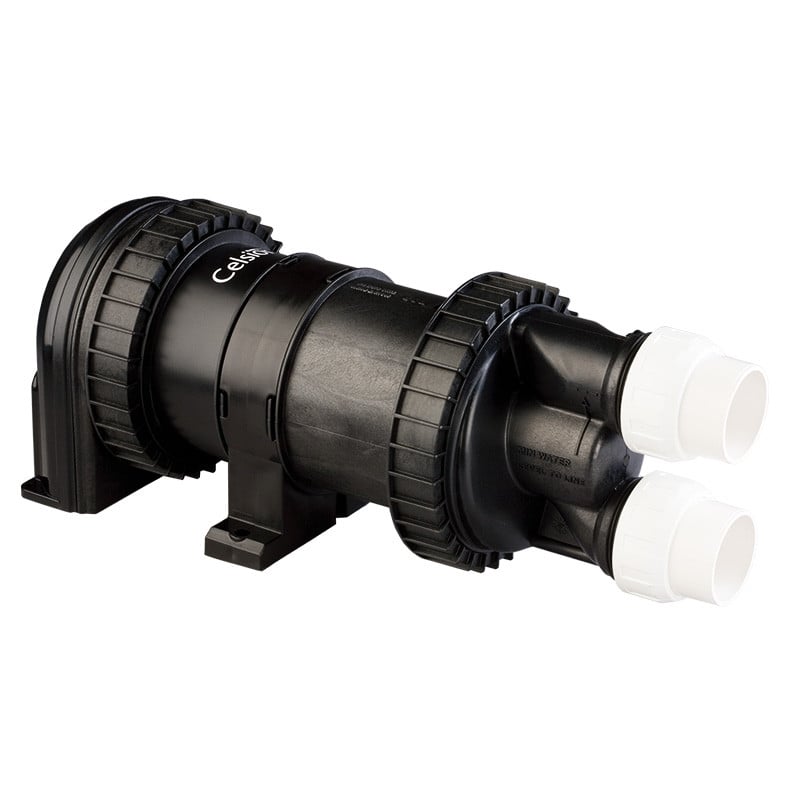

Celsior, SPA BATH PUMP
- Suitable for spa baths containing up to 12 jets
- Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining the water temperature
- Motor jacket design makes them up to 50% quieter than traditional spa bath pumps
TECHNICAL DATA
| Model No. |
Description | Input (HP/W) |
Heater Input (W) |
Effective Heating (W) |
Effective Energy Use (%) |
| Built-in Air Switch Heat Maintenance Pump | Built-in Air Switch Heat Maintenance Pump | ||||
| C200A | Celsior C200A | 0.94-690 | - | 635 | 92 |
| C270A | Celsior C270A | 1.25-930 | - | 869 | 93.4 |
| C400A | Celsior C400A | 2-1500 | - | 1410 | 94 |
| Built-in Air Switch with Boost Heat | Built-in Air Switch with Boost Heat | ||||
| C200AB | Celsior C200AB | 0.94-690 | 1000 | 1635 | 96.6 |
| C270AB | Celsior C270AB | 1.25-930 | 1000 | 1869 | 96.8 |
| C400AB | Celsior C400AB | 2-1500 | 1000 | 2410 | 96.4 |
| Electronic Touchpad Controlled with Boost Heat (Ensure touchpad & overlay are ordered as separate items – refer below) | Electronic Touchpad Controlled with Boost Heat (Ensure touchpad & overlay are ordered as separate items – refer below) | ||||
| C200TB | Celsior C200TB | 0.94-690 | 1000 | 1635 | 96.6 |
| C270TB | Celsior C270TB | 1.25-930 | 1000 | 1869 | 96.8 |
| C400TB | Celsior C400TB | 2-1500 | 1000 | 2410 | 96.4 |
A = Air Button Controlled Heat Maintenance Pump, B = Boost Heat In-built Heater Element, T = Touchpad Controlled
| Model No. | Description |
| Touchpad Controls | |
| TBCS | Touchpad Kit, Chrome – Includes overlay, chrome clip on cover & 3m lead |

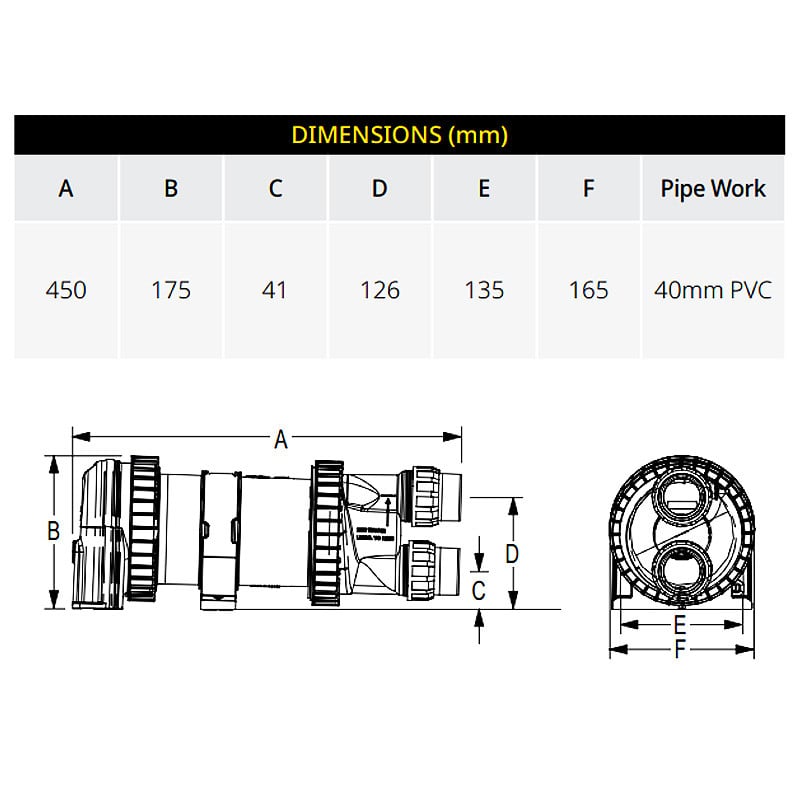

DRAWINGS
 |
 |
LITERATURE
 |
Davey Celsior C400AB Spa Bath Pump Brochure |
