PRODUCT INFORMATION

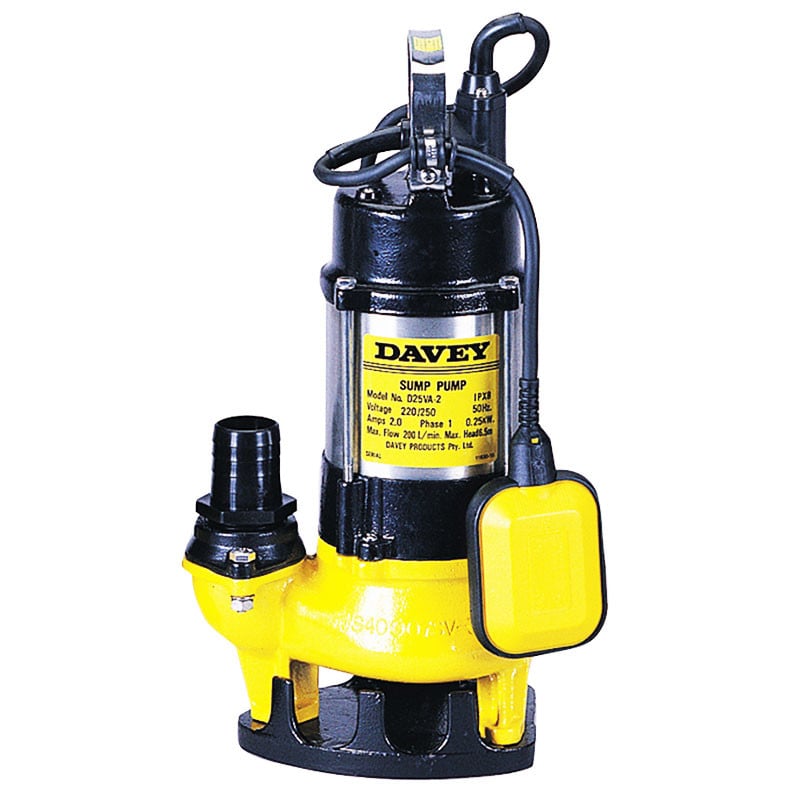

VORTEX SUMP PUMPS
A Davey all-rounder, the General Purpose Vortex Sump Pumps are able to pump clean or grey water of neutral pH, with some soft or fine solids.
Suitable applications include sump emptying, septic effluent disposal, water transfer or pumping of light slurries and factory waste.
APPLICATION
- Grey and black water pumping
- Sump emptying.
- Septic effluent disposal
- Water transfer
- Pumping of light slurries and factory waste
FEATURES & BENEFITS
WHY CHOOSE DAVEY SUBMERSIBLE DRAINAGE PUMPS?
Semi vortex, open impeller, centrifugal design
- Able to pump soft solids in suspension
- Less susceptible to blockage
D15VA and D15VAGMA models feature a special recirculation port to keep soft solids agitated in sump, improving ability to pump away such solids.
Double mechanical shaft seal in oil bath with hard faced silicon carbide/ceramic seal on pump side (D15VA and D15VAGMA models have single seals).
- Added motor protection
- Long service life
Sand slinger lip sea
- Added protection
- Long service life
Corrosion resistant 304 stainless steel motor shell, shaft, strainer and fasteners with a high quality paint finish.
- Long service life
- Attractive, lasting appearance
Automatic resetting thermal overload.
- Protected against overloading
HO7RNF oil resistant leads, 10 metres long with 3 pin power plug.
- Easy to connect to power supply
- Longer life in dirty water
TECHNICAL DATA
MATERIALS OF CONSTRUCTION
| PART | MATERIAL |
| Impeller | Polycarbonate |
| Pump casing | Cast iron (D15VA & D15VAGMA -glass filled polycarbonate) |
| Mechanical seal (pump end) | Silicon carbide / ceramic oil in bath |
| Mechanical seal (motor end D25VA & D40VA) | Carbon / ceramic |
| Shaft seal elastomer | Nitrile rubber |
| Pump shaft | 304 stainless steel |
| O-rings | Nitrile rubber |
| Motor shell | 304 stainless steel |
| Handle | 304 stainless steel |
| Fasteners | 304 stainless steel |
| Float & power supply leads | HO7RN-F oil resistant |
OPERATING LIMITS
| D15VA D15VAGMA |
D25VA | D40VA | |
| Capacities | 140 lpm | 200 lpm | 240 lpm |
| Heads to | 7m | 6.5m | 7.5m |
| Maximum submergence | 12m | 12m | 12m |
| Maximum operating temperature | 50ºC | 50ºC | 50ºC |
| Maximum soft solids | 20mm O.D. | 25mm O.D. | 35mm O.D |
ELECTRICAL DATA
| Model | Output (watts)* | Start (Amps) | Run (Amps) |
| D15VA | 150 | 9.0 | 1.5 |
| D15VAGMA | 150 | 9.0 | 1.5 |
| D25VA | 250 | 12.0 | 2.0 |
| D40VA | 400 | 10.5 | 3.7 |
D15VAGMA FLOAT CUT-IN & CUT-OUT LEVELS
| Pump Start | 230mm above base |
| Pump Stop | 140mm above base |
SUITABLE FLUIDS
Clean or “grey water” of neutral pH containing up to 10% small soft solids or 1% fine solids. Some wear should be expected while pumping hard solids in suspension.
INSTALLATION & PRIMING
Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation.
Don’t use this product for recirculating or filtering swimming pools, spas, etc. While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating.
Don’t pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life.
Keep your pump clean, particularly in situations where lint, hair or fibrous materials may get bound around the pump shaft. Regular inspection and cleaning will extend pump life.
Make room for the float switch to operate. Automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible.
Don’t run your pump dry.

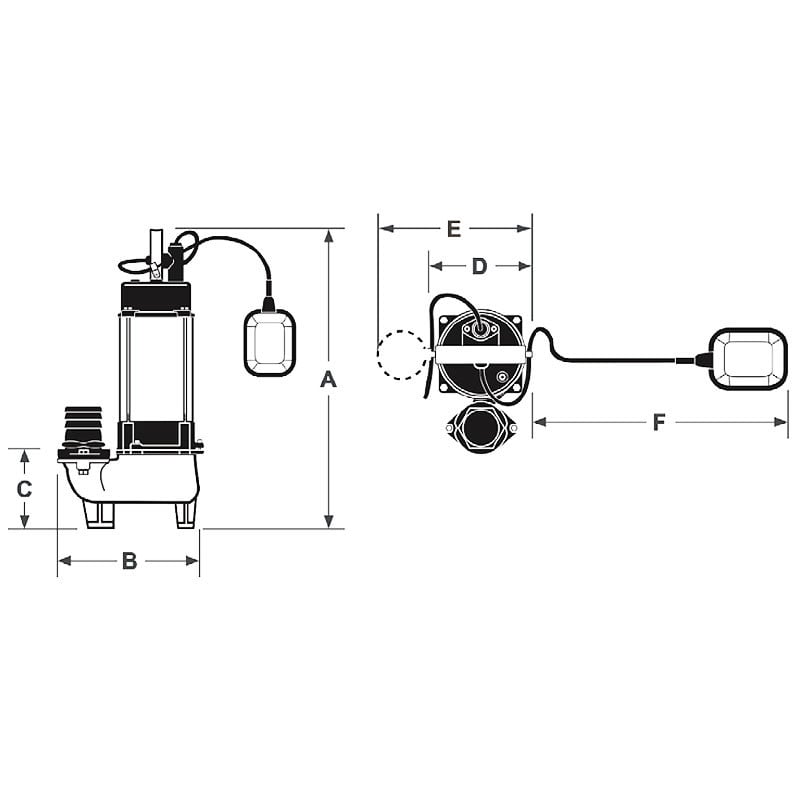

DRAWINGS
 |
 |
LITERATURE
 |
Davey D25VA Submersible Drainage Pump Brochure |
