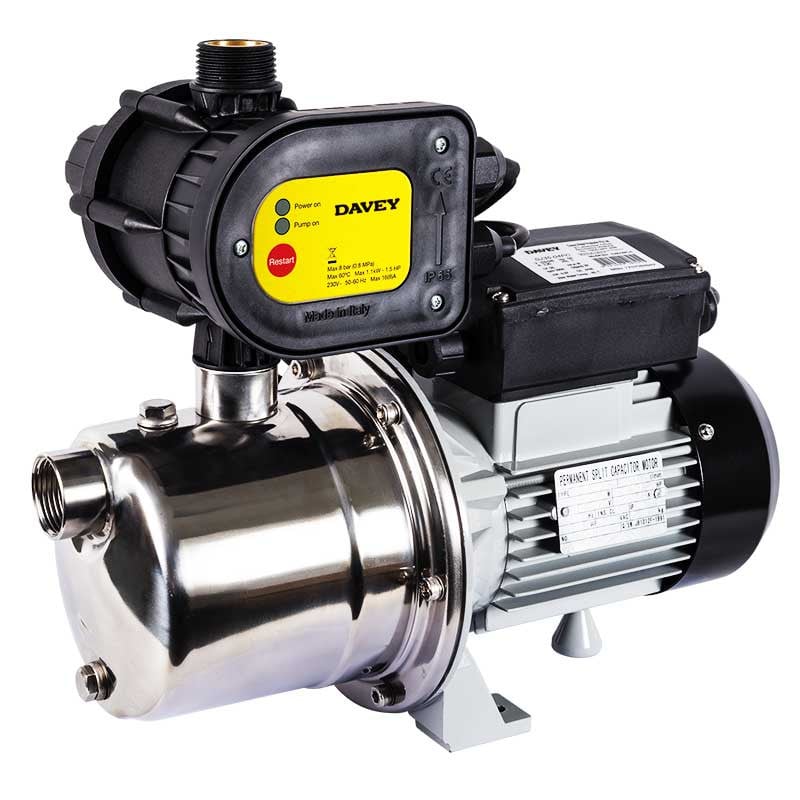

PRODUCT INFORMATION
VALUE FOR MONEY DOMESTIC GARDEN PUMP RANGE.
Perfect for garden watering and intermittent use on holiday homes the SJ Garden Watering System includes automatic models, suitable for connection permanently to a power supply and will start and stop according to flow demands.
Models in the range:
- SJ35-04PC - with press control
- SJ60-08PC - with press control
- The SJ35-04PC is also available without automatic pressure control (SJ35-04).
FEATURES & BENEFITS
Pump
Single stage jet assisted centrifugal pump:
- Higher operating pressures
- Less moving parts for increased dependability.
- Self priming for easier installation.
Corrosion resistant and stainless steel pump components:
- Longer life when pumping a variety of water qualities • Reduced friction within the casing and impellers
High quality purpose built 2 pole, 50Hz, IP55 TEFC pump motors, designed to Davey’s high quality specifications:
- Permanent split capacitor starting for dependable and frequent starting every time.
- In-built thermal overload for long motor life and protection against motor damage due to jamming .
- High quality sealed bearings for longer life
- Fitted with a power lead and three pin plug for ease of connection to power supply.
- Resists ingress of dust and dirt.
Hydraulic assembly attached to motor bracket at 8 points with oring seal to the stainless steel pump casing:
- Better sealing
- Longer service life
Designed with the serviceman and installer in mind:
- Suction and discharge are close for easier installation
- Quality components throughout for long life and easier maintenance.
Every pump is performance and pressure tested in the factory to ensure quality and reliability.
Mondial Press
In-built check valve for easier installation.
In-built spring and diaphragm shock absorber:
- No need for pressure tanks on many installations
No adjustments for operation:
- Constant non-cycling pump operation Solid state electronic control circuit with “tropicalisation” treatment:
- Longer life
Loss of prime protection:
- Saves pump from damage when water supplies run out
TECHNICAL DATA
OPERATING LIMITS
| Flow capacities to | 80 lpm |
| Pressure heads up to | 42m |
| Maximum operating pressure | 600 kPa |
| Maximum incoming (suction) pressure | 140 kPa |
| Maximum ambient temperature | 50ºC |
| Maximum water temperature | 45ºC |
| Minimum water temperature | 1ºC |
| Single phase (supplied with 3 pin plug) | 1 x 230V ± 10% |
| Frequency | 50Hz |
| Protection (motor) | IP55 |
| Suitable fluids | Clean potable water of neutral pH containing no solids or abrasives |
ELECTRICAL DATA
| Model | SJ35-04 | SJ60-08 |
| Nominal rpm | 2900 | 2900 |
| Volts / hertz / phase | 220-240 / 50 / 1 | 220-240 / 50 / 1 |
| IP rating / insulation | 55 / Class F | 55 / Class F |
| Amps | 2.35 | 4.8 |
| kW (P1) / (P2) | 0.53 / 0.37 | 1.16 / 0.9 |
| Capacitor | 13μF | 20μF |
| Power lead | 1.8m with Aust/NZ 3 pin plug | 1.8m with Aust/NZ 3 pin plug |
MATERIALS OF CONSTRUCTION
| PART | MATERIAL |
| Pump | Pump |
| Impellers | 304 stainless steel |
| Pump casing | 304 stainless steel |
| Pump shaft | 304 stainless steel |
| Seal ring (stationary): SJ35-04 | Ceramic |
| Seal ring (stationary): SJ60-08 | Silicon Carbide |
| Seal ring (rotating) | Carbon |
| Seal ring elastomer | EPDM |
| Seal spring: SJ35-04 | 304 stainless steel |
| Seal spring: SJ60-08 | 316 stainless steel |
| Orings | EPDM |
| Jet / venturi / coverplace | Glass filled thermoplastic |
| Motor shell | Aluminium |
| Shell finish | Polyester |
Press Control
| Housing | Glass fibre reinforced polyamide PA 6 GF 30% |
| Diaphragm | EPDM |
| Spring | Steel C 72 UNI 3545 |
| Flow valve | Brass OT 58 UNI 5705 / 65 |
| Check valve | Glass fibre reinforced polyamide PA 6 GF 30% |
| Control box | Self extinguishing thermoplastic resin VO |
| Printed circuit | Vetronite |
GARDEN WATERING FLOW RATE GUIDE
The SJ35-04 pump models can supply a variety of garden watering applications,
such as:
- A garden hose with a spray nozzle fitted, or;
- A garden spray system with up to 25 microjet sprays, or;
- A garden dripper system with up to 200 garden drippers (4 litres per hour drippers), or;
- Two small impact sprinklers
The larger SJ60-08 model is capable of up to double the above,
though still suitable for running a single garden hose.
With the correct selection of pipework, valves and automatic irrigation controller, the range of models can even be used to power a fully automated watering system.
Your garden watering professional can give you the best advice on how to utilise the valuable rainwater you have captured for the most efficient usage in your garden.

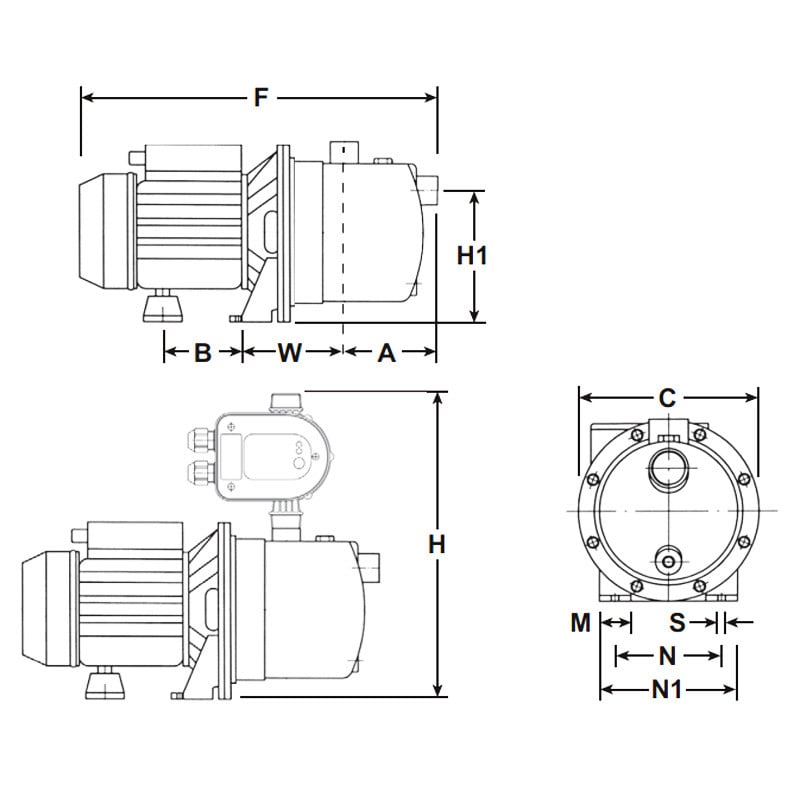

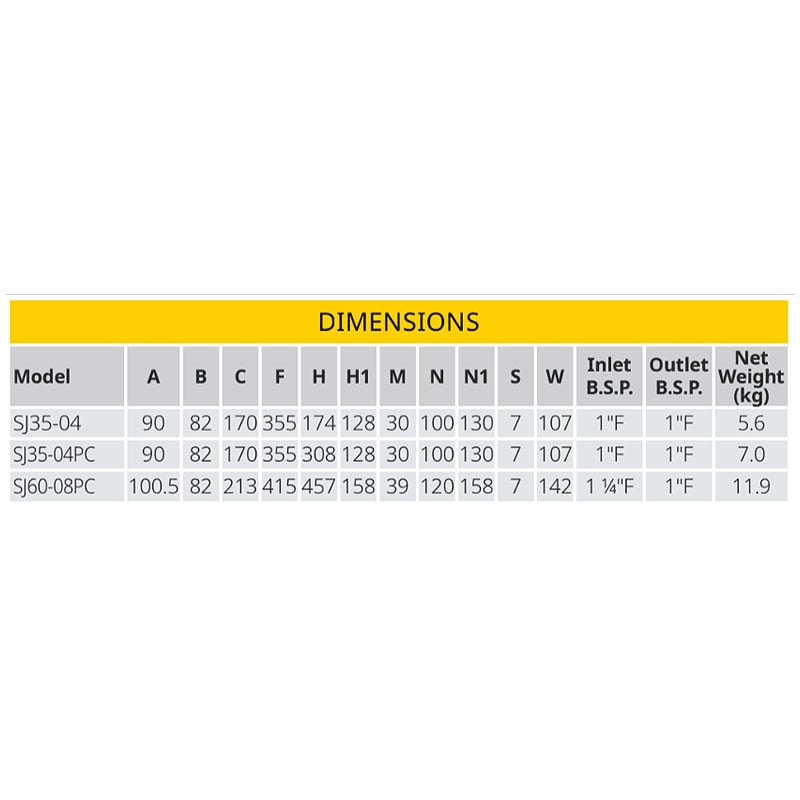

DRAWINGS
 |
 |
