PRODUCT INFORMATION
MULTI-FIT AND VERSATILE

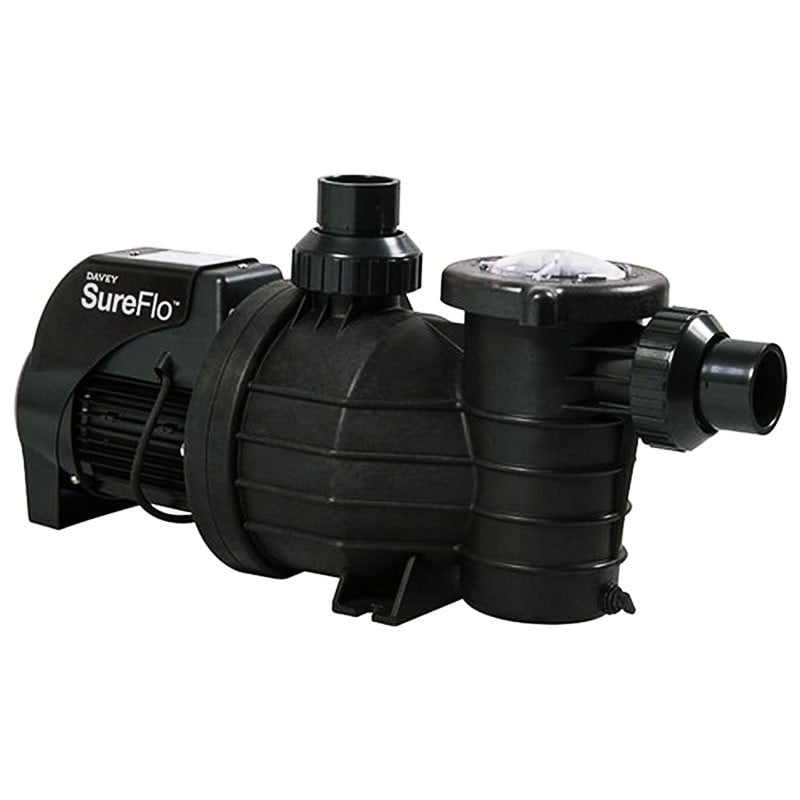

- Davey SureFlo DSF1350 with a flow rate of 300lpm at 10m head
- Specifically designed to filter and circulate swimming pool water
- Suitable for both in-ground and above ground backyard pools
- Ideal for solar pool heating and aquaculture applications
- Self-aligning barrel unions* so great to retrofit other brands of pool pumps
- Designed and manufactured with high quality materials316 stainless steel motor shaft
- Noryl impeller and
- Viton mechanical seal
APPLICATION: Ideal for in-ground and above-ground pools, large swim spas, and plunge pools. Also suitable for solar pool heating. Models to suit pools up to 90,000 litres.
FEATURES & BENEFITS
THE DAVEY SUREFLO RANGE IS SPECIFICALLY DESIGNED TO CIRCULATE SWIMMING POOL WATER FOR FILTRATION AND SANITISING APPLICATIONS.
- Reliable – Universal, multi-fit and versatile pump that suits multiple applications:
- Constructed from strong corrosion resistant and UV materials for long and reliable working life
- Heavy duty, totally enclosed motor protects against the elements for long operating life
- Built-in, self-resetting thermal overload protects the motor against damage from over-heating
- High Quality – Corrosion resistant Noryl impeller for longer lasting trouble free performance
- Long Lasting – High performance silicon carbide Viton mechanical seal for long life in pool water
- High Strength – 316 stainless steel motor shaft
- High Performance – Powerful pumping delivering optimum flow rates for rapid pool water turnover
- Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring
- Fully serviceable, allowing for easy maintenance and repair
- Drain plugs enabling simple water drainage for easy maintenance
- 3m power lead with 10amp Australian three pin plug fitted to all models
- 3 year warranty

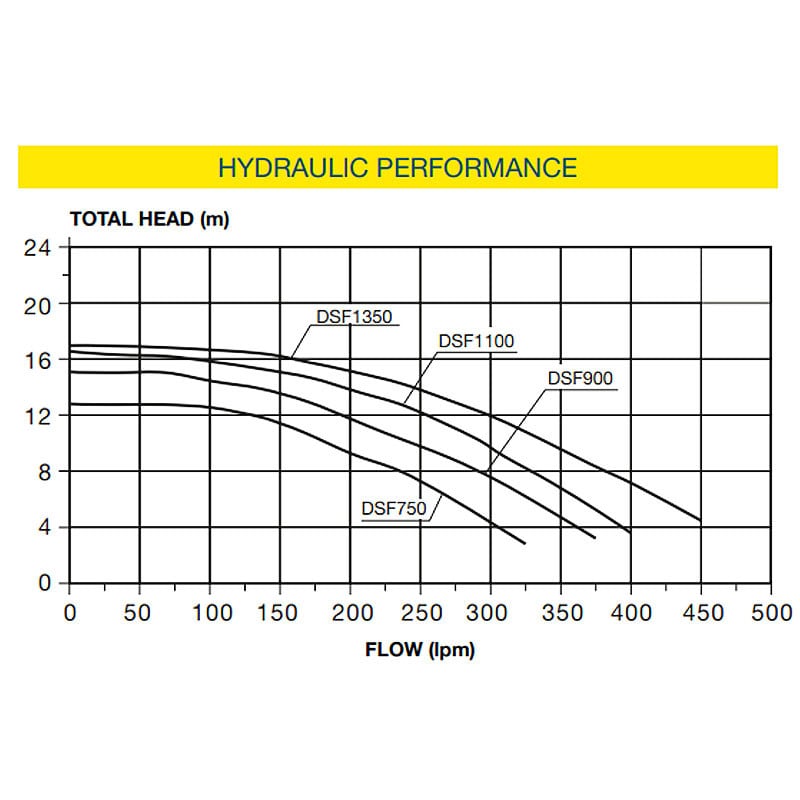

TECHNICAL DATA
ELECTRICAL DATA
| Type | DSF750 | DSF900 | DSF1100 | DSF1350 |
| Voltage (V) | 220/240 | 220/240 | 220/240 | 220/240 |
| Phase | Single | Single | Single | Single |
| Supply Freq (Hz) | 50 | 50 | 50 | 50 |
| Run current (A | 3.8 | 4.6 | 5.8 | 6.2 |
| Motor Input Power (W/hP) | 750 | 900 | 1100 | 1350 |
| Motor Output Power (W/hP) | 550 | 650 | 750 | 1000 |
| RPM | 2900 | 2900 | 2900 | 2900 |
| Enclosure Class (IP) | 55 | 55 | 55 | 55 |
| Insulation Class | F | F | F | F |
| Approval No. | TUV020457EA | TUV020457EA | TUV020457EA | TUV020457EA |
OPERATING LIMITS
| Max water temperature | 40°C |
| Max ambient temperature | 40°C |
| Noise level (AS 5102.2) | 60 - 65dBa |
DRAWINGS
 |
 |
LITERATURE
 |
Davey StarFlo SF DSF1350 Pool Pump Brochure |
