PRODUCT INFORMATION
TOUGH AND VERSATILE
- Ideal for in-ground and above ground pools, large swim spas and plunge pools
- Also suitable for solar pool heating applications.
- Universal, multi-fit design suits pools up to 140,000 litres.
APPLICATION: Ideal for in-ground and above ground pools, large swim spas and plunge pools. Also suitable for solar pool heating. Models to suit pools up to 140,000 litres.
FEATURES & BENEFITS
DESIGNED TO FILTER AND CIRCULATE POOL WATER
- Double insulated to water circuit
- Provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
- Reliable - Universal, multi-fit and versatile pump that suits multiple applications:
- Constructed of strong corrosion-resistant and UV materials for long and reliable working life
- Heavy duty, totally enclosed motor protects against the elements for long operating life
- Built-in, self-resetting thermal overload protects the motor against damage from over-heating
- High Quality – Corrosion-resistant Noryl impeller for longer lasting trouble-free performance
- Long Lasting – High-performance silicon carbide Viton mechanical seal for long life in pool water
- High Strength – 316 stainless steel motor shaft
- High Performance – Powerful pumping delivering optimum flow rates for rapid pool water turnover
- Fully serviceable, allowing for easy maintenance and repair
- Drain plugs enabling simple water drainage for easy maintenance
- 3m power lead with 10amp Australian three-pin plug fitted to all models
TECHNICAL DATA
ELECTRICAL DATA
| Model |
DSF300 | DSF420 |
| Voltage (V) | 220-240 | 220-240 |
| Phase | Single | Single |
| Supply frequency (Hz) | 50 | 50 |
| Run current (A) | 5.8 | 8.3 |
| Motor input power (W) | 1100 | 1650 |
| Motor output power (W) | 750 | 1300 |
| RPM | 2900 | 2900 |
| Enclosure class (IP) | 55 | 55 |
| Insulation class | F | F |
| Approval No. | TUV02147EA | TUV02147EA |
OPERATING LIMITS
| Max water temperature | 40°C |
| Max ambient temperature | 50ºC |
| dBa @ 1 metre | 62 - (DSF300) 65 - (DSF420) |

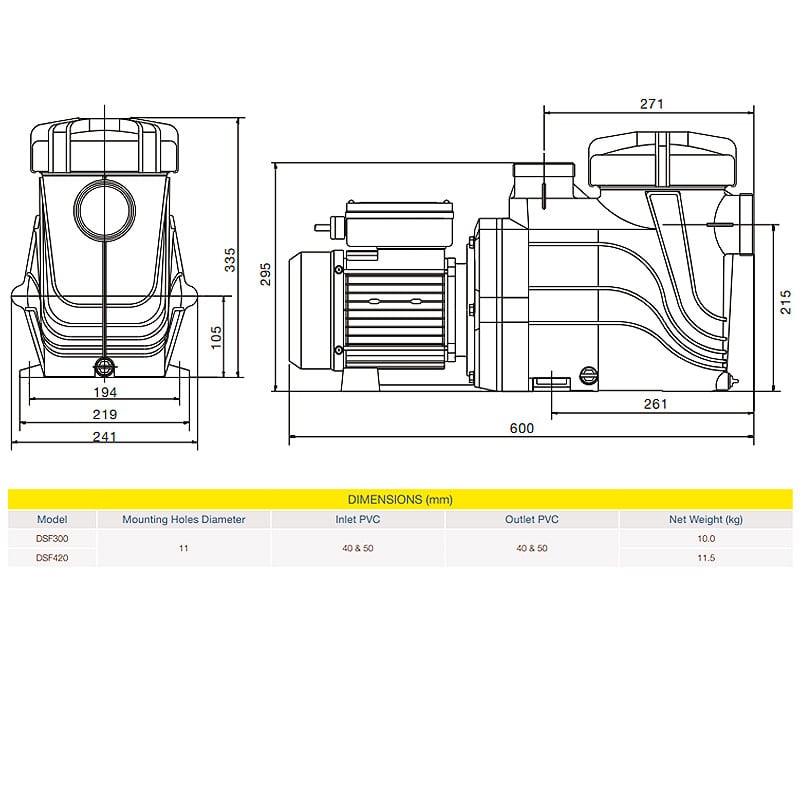

DRAWINGS
 |
 |
LITERATURE
 |
Davey StarFlo® DSF300 Pool Pump Brochure |
