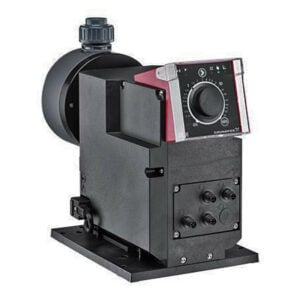

SMART Digital diaphragm dosing pump with internal brushless motor drive. High-end solution for complex and demanding applications (Digital Dosing Advanced).
FEATURES & BENEFITS
The SMART Digital DDA is a compact positive displacement, diaphragm dosing pump with variable-speed drive (PMS motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The mounting plate allows quick installation and service. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover.
The dosing head is composed of:
- Long lifetime and universal, chemically resistant full double PTFE diaphragm.
- Ball valves for highest dosing accuracy.
- Deaeration valve for easy startup.
- Pressure sensor.
Operation modes:
- Manual dosing from 0.1 to 100%.
TECHNICAL DATA
TECHNICAL
Type key: | DDA 60-10 AR-PV/T/C-F-31U3U3IG |
Max. Flow: | 120 l/h |
Min flow: | 150 ml/h |
Turn-down ratio: | 1:800 |
Approvals |
CE,CSA-US,NSF61,RCM |
Valve type: |
Standard |
Maximum viscosity at 100 %: |
100 mPas |
Maximum viscosity in slow mode 50 %: | N/A mPas |
Maximum viscosity in slow mode 25 %: | N/A mPas |
Accuracy of repeatability: | 5 % |
MATERIALS:
Dosing head: |
PVDF (Polyvinylidene fluoride) |
Valve ball: | Ceramic |
Gasket: |
PTFE |
INSTALLATION
Range of ambient temperature: | 0 .. 45 °C |
Maximum operating pressure: | 7 bar |
Installation set: | NO |
Installation type: | No installation set |
Pump inlet: | Conn.pack U3 (hose ID.19mm &.. |
Pump outlet: |
Conn.pack U3 (hose ID.19mm &.. |
Max. Suction lift during operation: | 3 m |
Max. Suction lift during priming: |
1.5 m |
LIQUID
Pumped liquid: | Water |
Liquid temperature range: |
0 .. 0 °C |
Selected liquid temperature: |
20 °C |
Density |
998.2 kg/m³ |
ELECTRICAL DATA:
P1 max: | 62 W |
Mains frequency: |
50 / 60 Hz |
Rated voltage: |
1 x 100-240 V |
Enclosure class (IEC 34-5): |
IP65 / NEMA 4X |
Length of cable: |
1.5 m |
Type of cable plug: |
Australia, New Zealand, Taiwan |
Inrush current: | 70A at 240V (35A/100V) for 2ms |
DRAWINGS
LITERATURE
Grundfos DDE 120-7 99246459 Digital Dosing Pump Brochure |
