PRODUCT INFORMATION
JP PM is a booster that consists of a pressure manager and a self-priming, single-stage centrifugal pump. JP PM is designed for various garden and domestic applications and has dry-running protection.
Suitable for:
- Attic
- Bathroom
- Domestic groundwater intake
- Domestic water pressure boosting
- Domestic rainwater harvesting
FEATURES & BENEFITS

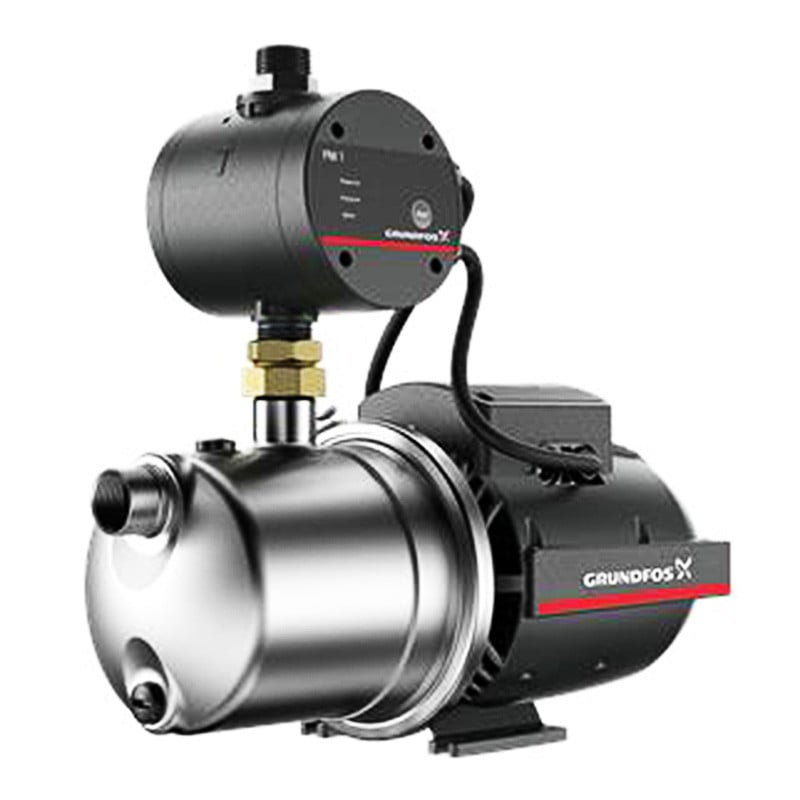

Grundfos JP 4-54 PM1 booster consists of a Grundfos JP pump and a pressure manager. The JP 4-54 PM1 provides the comfort of constant water pressure with automatic start and stop matched to consumption by the intelligent pressure manager. The pressure manager starts the pump at 1.5 bar and the pump keeps running as long as there is flow.
The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.
The JP 4-54 PM1 incorporates dry running protection that automatically stops the pump in case of dry running. This means lower risk of pump damage and lower maintenance costs. The anti-cycling function will stop the pump in time in case of a minor leakage in the system, or if a tap has not been closed completely. When cycling occurs, the pump stops, and an alarm will be indicated. A non-return valve for backflow prevention is already integrated.
The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air-cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.
TECHNICAL DATA
LIQUID
Pumped liquid | Water |
Liquid temperature range | 0 .. 40 °C |
Selected liquid temperature | 20 °C |
Density | 998.2 kg/m³ |
TECHNICAL
Rated flow |
4 m³/h |
Rated head: | 46 m |
Primary shaft seal | BBVP |
Approvals | CE,WM,C-TICK |
Curve tolerance | ISO9906:2012 3B |
Pump version | A |
Adjustable start pressure: | N |
Start pressure: | 1.5 bar |
Rated speed | 2800 rpm |
MATERIALS
Pump housing | Stainless steel, EN 1.4301, AISI 304 |
Impeller | Composite |
Material code | A |
INSTALLATION
Minimum ambient temperature | 0 °C |
Max. ambient | 40 °C |
Maximum operating pressure | PN 6 bar |
Pump inlet | G1 |
Pump outlet | G1 |
Electrical data
Power input - P1 | 1130 W |
Rated power - P2 | 0.746 kW |
Mains frequency | 50 Hz |
Rated voltage | 1 x 230 V |
Rated current | 5.1 A |
Starting current | 17.8 A |
Rated speed | 2800 rpm |
Capacitor size - run | 16 µF/450 V |
Enclosure class (IEC 34-5) | IP44 |
Insulation class (IEC 85) | F |
Length of cable | 1.5 m |
Type of cable plug | AUS |

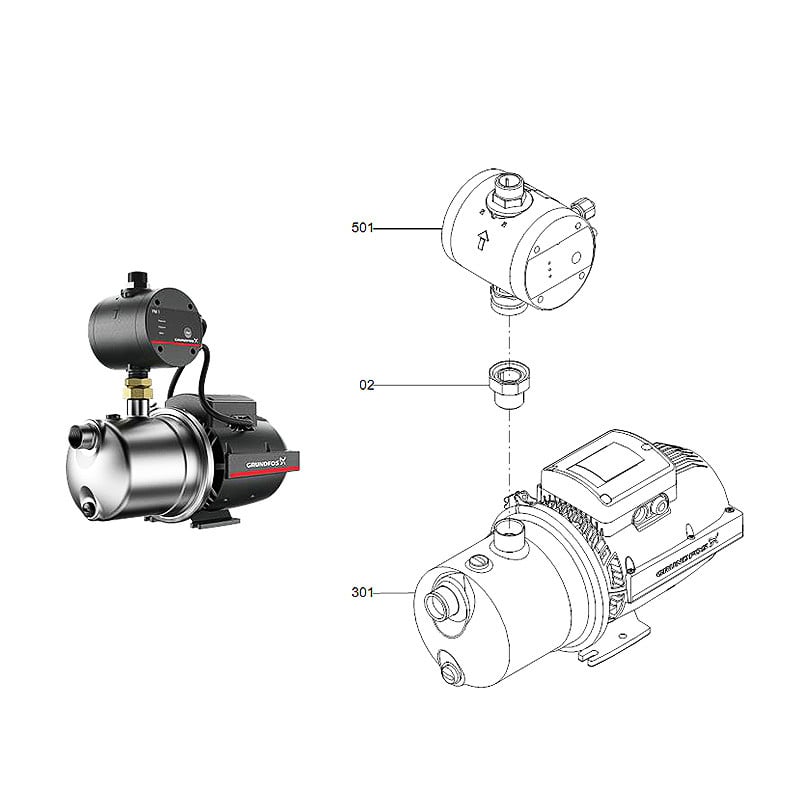

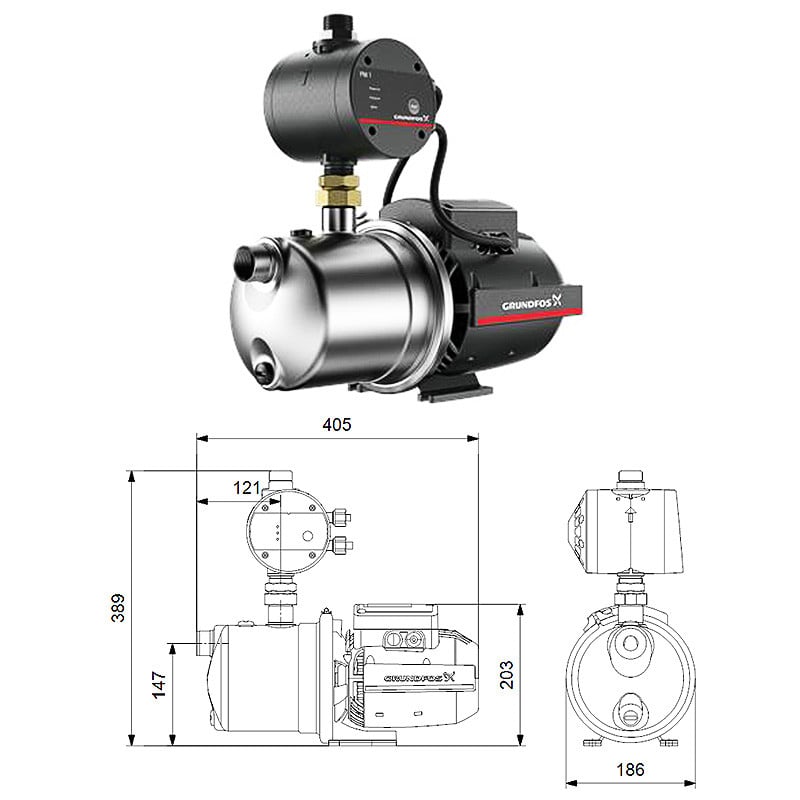

DRAWINGS
LITERATURE
Grundfos Jet 4-54PM Pump Brochure |
