PRODUCT INFORMATION

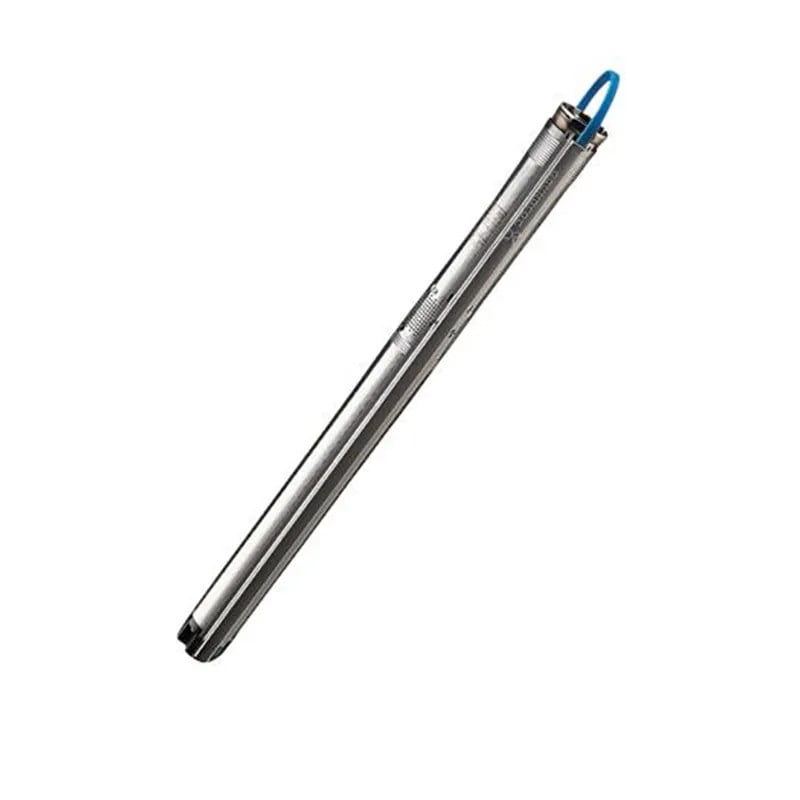

Grundfos SQE 3-40 N 3 Stage 0.7kW Submersible Pump
Suitable for:
- Basement
- Garden
- Domestic ground water intake
- Kitchen
- Domestic water pressure boosting
- Ground water intake
FEATURES & BENEFITS
3" multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has "floating" impellers, each with its own tungsten carbide/ceramic bearing.
The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.
The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.
TECHNICAL DATA
| Stages | 3 |
| Approvals | CE,PCBC,RCM,EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO |
| Pump No | 96080722 |
| Valve | pump with built-in non-return valve |
MATERIALS
| Pump | Stainless steel DIN W.-Nr. 1.4401 AISI 316 |
| Impeller | Composite |
INSTALLATION
| Maximum ambient pressure | 15 bar |
| Pump outlet | Rp 1 1/4 |
| Minimum borehole diameter | 76 mm |
LIQUID
| Pumped liquid | Water |
| Liquid max temp | 0 .. 35 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
ELECTRICAL DATA
| Motor type | MSE3N |
| Power input - P1 | 1 kW |
| Rated power | 0.7 kw |
| Power factor | 5,3 A |
| Rated speed | 10700 rpm |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | Y |
| Thermal protec | internal |
| Length of cable | 1.5 m |
| Motor No | 96195294 |
LITERATURE
 |
Grundfos SQE 3-40 N Submersible Groundwater Pump Brochure |
