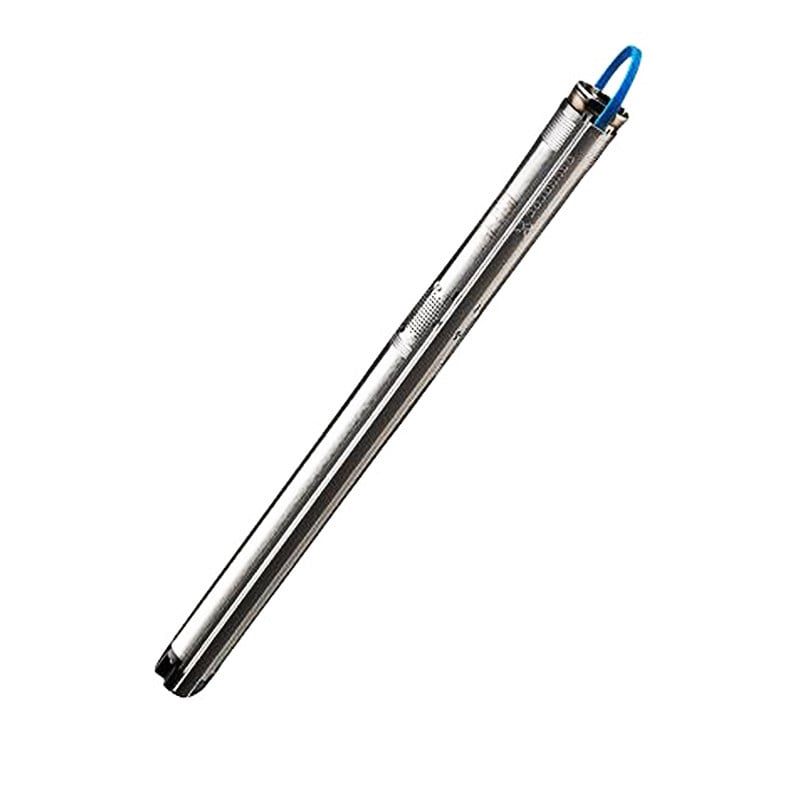

Grundfos SQE 5-15 N 1 Stage 0.7kW Submersible Pump

SKU:
SQE 5-15 N

PRODUCT INFORMATION

Grundfos SQE 5-15 N 1 Stage 0.7kW Submersible Pump

Suitable for.

  • Basement
  • Garden
  • Domestic groundwater intake
  • Kitchen
  • Domestic water pressure boosting
  • Groundwater intake

FEATURES & BENEFITS

At only 3” in diameter, the Grundfos SQ(E) submersible pump is extremely compact and ideal for small or restricted boreholes.

In addition to the features and benefits shared with the renowned SP submersible pump, the SQ(E) offers a number of motor protection and wear-reducing features that makes it the obvious choice for groundwater extraction at domestic or small waterworks, for irrigation systems, or for irrigation systems.

TECHNICAL DATA

Pump speed on which pump data are based
10700 rpm
Rated flow
5 m³/h
Rated head
11 m
Stages
1
Approvals CE,PCBC,RCM, EAC,CN Rohs
Exempt,Morocco,UKCA,SEPRO
Curve tolerance ISO9906:2012 3B
Pump No 96080723
Model B
Valve pump with built-in non-return valve



MATERIALS

Pump
Stainless steel
DIN W.-Nr. 1.4401
AISI 316
Impeller Composite
Impeller
Stainless steel, DIN W.-Nr. 1.4401



INSTALLATION

Maximum ambient pressure
15 bar
Pump outlet
Rp1 1/4
Minimum borehole diameter
76 mm



LIQUID

Pumped liquid Water
Liquid temperature range
0 .. 35 °C
Selected liquid temperature
20 °C
Density
998.2 kg/m³



ELECTRICAL DATA

Motor type MS3-N
Power input - P1 1 kW
Rated power - P2
0.7 kW
Power (P2) required by pump
0.33 kW
Mains frequency
50 Hz
Rated voltage
1 x 200-240 V
Rated current
5.3 A
Power factor
1.00
Rated speed
10700 rpm
Start. method
direct-on-line
Enclosure class (IEC 34-5)
IP68
Insulation class (IEC 85)
F
Built-in motor protection
Y
Thermal protec
internal
Length of cable
1.5 m
Cable kit Y
Motor No
96195294

DRAWINGS

LITERATURE

Grundfos Home & Garden Range Pump GRUNDFOS SQ(E) SUBMERSIBLE PUMPS Brochure
