PRODUCT INFORMATION

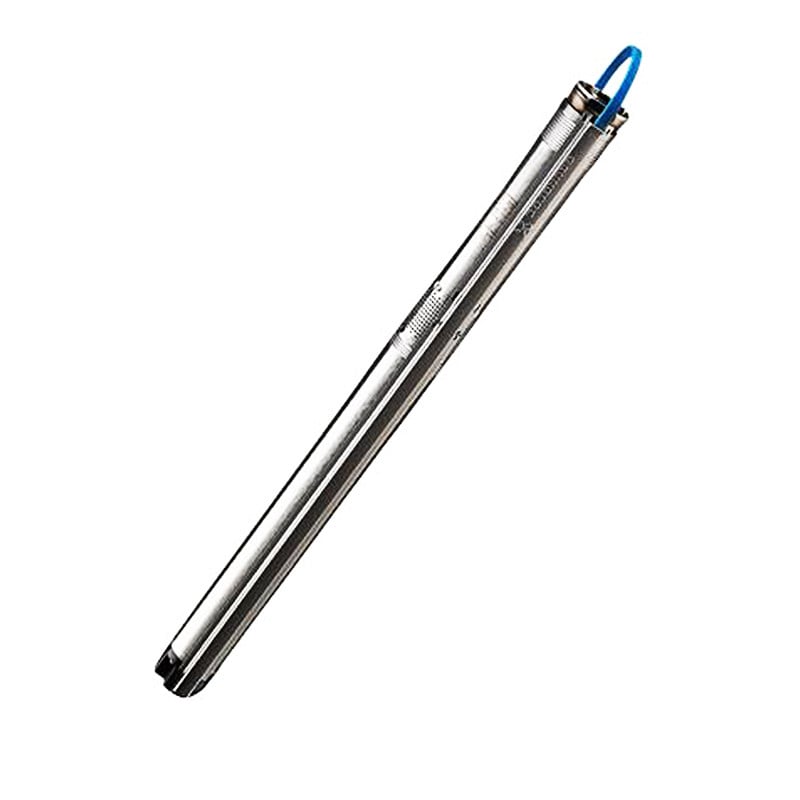

Grundfos SQE 7-15 N 1 Stage 0.7kW Submersible Pump
Suitable for.
- Basement
- Garden
- Domestic groundwater intake
- Kitchen
- Domestic water pressure boosting
- Groundwater intake
FEATURES & BENEFITS
At only 3” in diameter, the Grundfos SQ(E) submersible pump is extremely compact and ideal for small or restricted boreholes.
In addition to the features and benefits shared with the renowned SP submersible pump, the SQ(E) offers a number of motor protection and wear-reducing features that makes it the obvious choice for groundwater extraction at domestic or small waterworks, for irrigation systems, or for irrigation systems.
TECHNICAL DATA
| Pump speed on which pump data are based |
10700 rpm |
| Rated flow |
7 m³/h |
| Rated head |
9 m |
| Stages |
1 |
| Approvals | CE,PCBC,RCM, EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO |
| Curve tolerance | ISO9906:2012 3B |
| Pump No | 96080725 |
| Model | B |
| Valve | pump with built-in non-return valve |
MATERIALS
| Pump |
Stainless steel DIN W.-Nr. 1.4401 AISI 316 |
| Impeller | Composite |
| Impeller |
Stainless steel, DIN W.-Nr. 1.4401 |
INSTALLATION
| Maximum ambient pressure |
15 bar |
| Pump outlet |
Rp1 1/4 |
| Minimum borehole diameter |
76 mm |
LIQUID
| Pumped liquid | Water |
| Liquid temperature range |
0 .. 35 °C |
| Selected liquid temperature |
20 °C |
| Density |
998.2 kg/m³ |
ELECTRICAL DATA
| Motor type | MS3-N |
| Power input - P1 | 1 kW |
| Rated power - P2 |
0.7 kW |
| Power (P2) required by pump |
0.48kW |
| Mains frequency |
50 Hz |
| Rated voltage |
1 x 200-240 V |
| Rated current |
5.3 A |
| Power factor |
1.00 |
| Rated speed |
10700 rpm |
| Start. method |
direct-on-line |
| Enclosure class (IEC 34-5) |
IP68 |
| Insulation class (IEC 85) |
F |
| Built-in motor protection |
Y |
| Thermal protec |
internal |
| Length of cable |
1.5 m |
| Cable kit | Y |
| Motor No |
96195294 |
DRAWINGS
 |
 |
LITERATURE
 |
GRUNDFOS SQ(E) SUBMERSIBLE PUMPS Brochure |
