PRODUCT INFORMATION
SB is a submersible multistage booster designed for domestic applications. SB requires an external control unit like Grundfos PM1 or PM2 enabling complete pump control with user friendly interface.
Suitable for.
- Controls & Digital Groundwater Management
- Attic
- Basement
- Bathroom
- Garden
- Kitchen
- Living space
- Domestic water pressure boosting
- Domestic rainwater harvesting
- Solar Controls & Digital Water Management
- Solar Water Treatment Fertigation & Dosing
- Community water supply
FEATURES & BENEFITS
Grundfos SB 3-45 AW is a submersible pump designed for the pumping of clean water for domestic and rainwater applications. It is silent when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.
The SB 3-45 AW is equipped with a 15 m supply cable, and the maximum installation depth is 10 m below the water level, with a liquid temperature ranging from 0 °C to 40 °C.
The SB 3-45 AW is ideal for operation in a well or ground tanks, as it easily prevents solid particles from entering the pump. The maximum particle size is 1 mm.

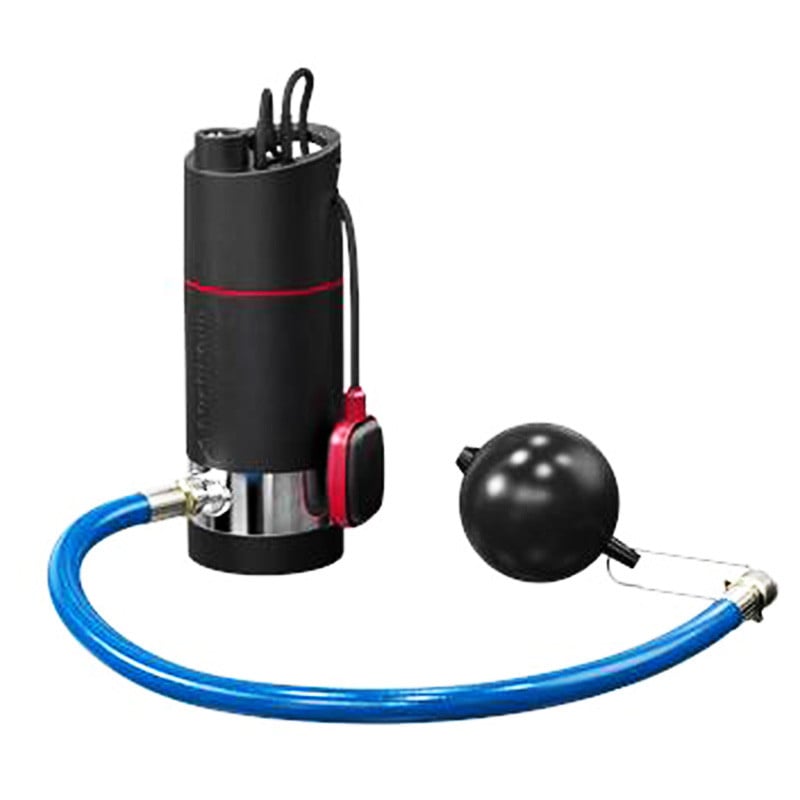

The pump is equipped with a side inlet/flexible hose with floating suction strainer.
The single-phase model is effectively protected against any accidental overload by built-in thermal protection.
The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.
TECHNICAL DATA
| Rated flow | 2.83 m³/h |
| Rated head | 30.1 m |
| Maximum head | 45 m |
| Impellers | 4 |
| Max. Particle | 1 mm |
| Approvals | CE |
| Curve tolerance | ISO9906:2012 3B |
| Return valve | NO |
| Rated speed | 2800 rpm |
MATERIALS
| Pump housing | Composite, PP - GF30 |
| Impeller | Composite, PPO-20GF |
INSTALLATION
| Range of ambient temperature | -10 .. 50 °C |
| Type of inlet connection | FLOATING STRAINER |
| Pump outlet |
G 1" |
| Pressure rating for connection |
PN 6 |
| Maximum installation depth | 10 m |
LIQUID
| Pumped liquid | Water |
| Liquid temperature range | 0 .. 40 °C |
| Selected liquid temperature | 20 °C |
| Density | 998.2 kg/m³ |
| pH-value range | 4-9 |
ELECTRICAL DATA
| Power input P1 |
1.05 kW |
| Rated power - P2 |
0.62 kW |
| Mains frequency |
50 Hz |
| Rated voltage |
1 x 220-240 V |
| Rated current |
48 A |
| Starting current |
12 A |
| Cos phi |
0.94 |
| Rated speed |
2800 rpm |
| Capacitor size - run |
12 µF/450 V |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) |
F |
| Built-in motor protection | YES |
| Length of cable | 15 m |
| Cable type |
H07RN-F 3G1 |
| Type of cable plug | AUS |

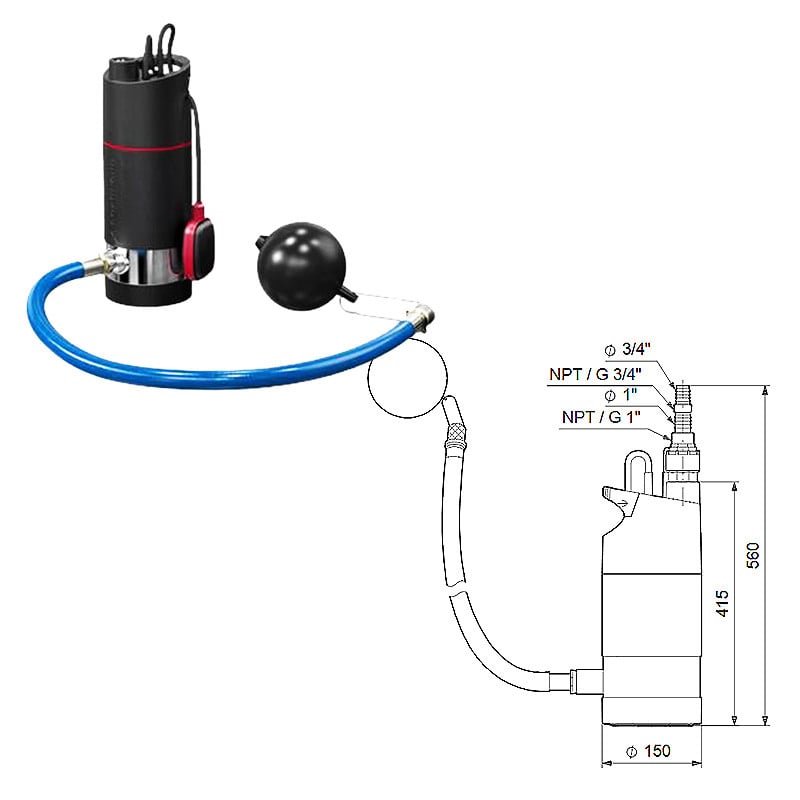

DRAWINGS
 |
 |
LITERATURE
 |
Grundfos Submersible Booster 3-45AW Brochure |
