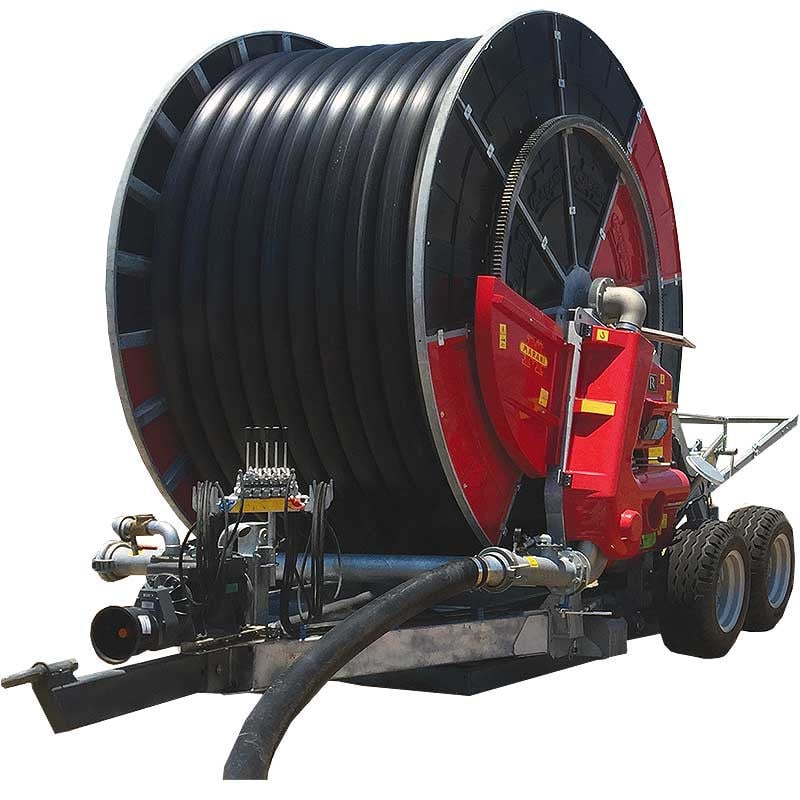

PRODUCT INFORMATION
Marani assemble and offers to their customers the fourth generation turbine system, providing excellent results even at very low pressures: 2-3 bar when using the spray boom and 5-6 bar when using the rain gun.
The choke-flow turbine with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable form a performance point of view.
The turbine is made with a special aluminium alloy and machined using automatic machine tools. The current turbine-gearbox system has eliminated the transmission belt and the external bypasses.
The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.
STANDARD EQUIPMENT
- Hydraulic lifting device of trolley
- PTO
- Winding handle
- Hydraulic rotation of turntable
- Hot galvanized chassis and reel
- Pressure gauge (glycerine bath)
- Hydraulic feet
- Safety guards
- Water Inlet Shut-Off Valve
- Hydraulic lift of drawbar
- Tachometer
- Speed equalizer
- Hydraulic system by rapid couplings to tractor
- Turbine mounted on the gearbox with built-in bypass
- Flexible connection pipe with storage reel
- 4 Speed gearbox
- Galvanized 5 wheel raingun trolley mounted on variable hard rubber wheels
- Four-wheel chassis kit as standard
SIZES AVAILABLE
- 10mm x 600m
- 125mm x 450m
- 125mm x 500m
TECHNICAL DATA
| Model | Pressure at Inlet (BAR) | Flow Rate (L/M) | Wetted Width at 80% (Mtr) |
| 110/600 | 4.8 – 11.5 | 522 – 1149 | 59 – 86 |
| 125/450 | 4.6 – 11.0 | 848 – 1901 | 70 – 102 |
| 125/500 | 4.7 – 11.4 | 848 – 1774 | 70 – 102 |
| Description | Code |
| ITS080B 110mm x 600m (A) | ITS080B110600 |
| ITS080B 125mm x 450m (D) | ITS080B125450 |
| SIME Reflex | 140052KIT |
| Nelson SR150 Gun | Nelson SR150 Gun |
| Komet 160 Ultra | 5010255KIT |
| ITS080B 125mm x 500m (B) | ITS080B125500 |
| SIME Explorer Big Gun 25° | 140055KIT |
| SIME Mariner Big Gun | 140075KIT |
| SIME Gemini 25° 2 Speed | 140085KIT |
| Nelson SR200 Gun | SR200K |
| Komet 202 Ultra Kit | 5010256KIT |
| Option | Code |
| Ma-Rain 26 Kit c/w solar panel and pressure switch | 35462704KIT |
| Ma-Rain 56 Kit | 35510120SKIT |
| Emptying Compressor | 81670000 |

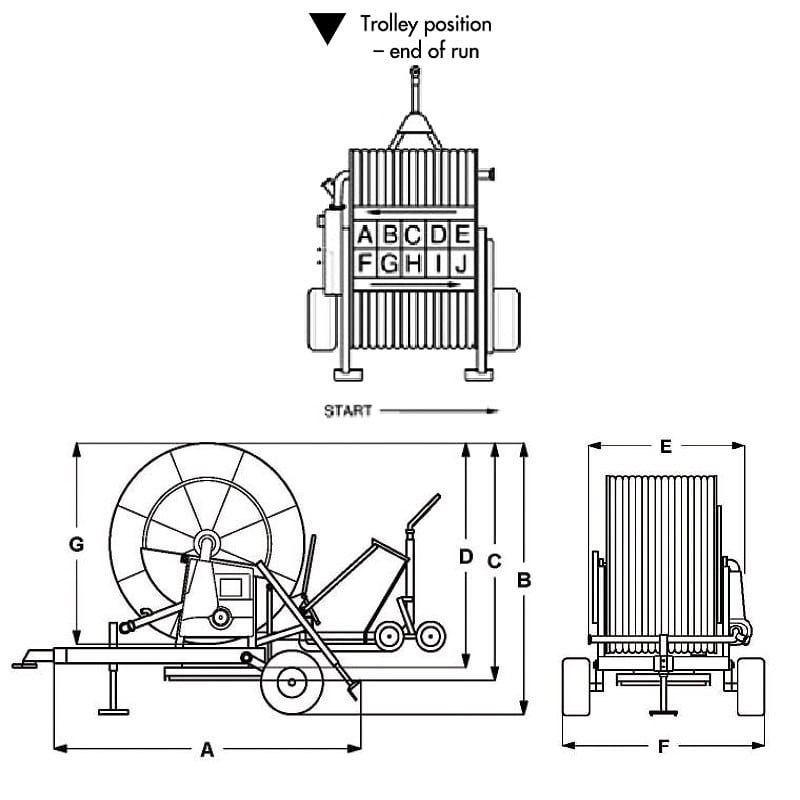

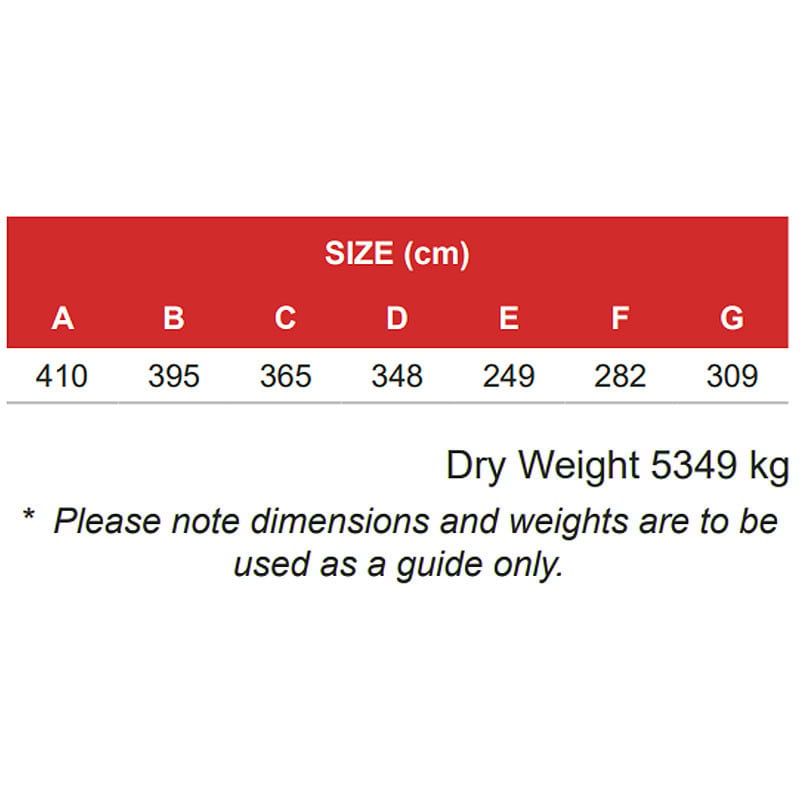

DRAWINGS
 |
 |
LITERATURE
 |
ITS080B Marani Hard Hose Irrigator Range |
