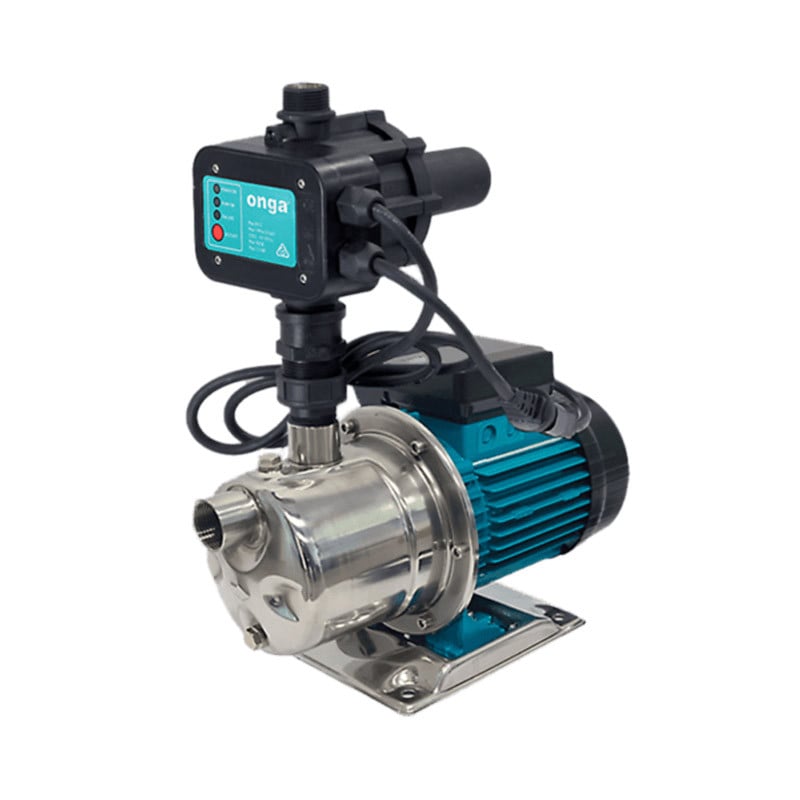

Onga JS90-PC JS Series Pressure Pump with Presscontrol
Onga’s jet-assisted The new JS range of household pressure pumps feature a strong stainless steel pump casing with precision moulded jet, venturi and impeller for efficiency and great performance under high suction lift applications.The new Italian made JS series is now mounted on a stable, high quality stainless steel base for protection from corrosion. With 3 models in the range, the JS is also available with a Presscontrol or Pressure Switch and Tank making a perfect household water pressure system.
APPLICATION:
The JS Series pressure system is ideal for installations with below ground water source, domestic water supply systems with continuous or intermittent duty. It is perfect for small farms, gardening irrigation and for all other general water transfer requirements.
FEATURES & BENEFITS
- Enclosed fan-cooled motor
- Protection rating IP 44
- Insulation class F
- Singe phase power supply with permanently activated capacitor
- Thermal protection incorporated in motor winding
- Continuous duty
TECHNICAL DATA
| REF. |
COMPONENT | MATERIAL |
| 1 | PUMP BODY | Stainless steel X5 CrNi 1810 (AISI 304) |
| 2 | MOTOR CASING | Die-cast aluminium |
| 3 | IMPELLER | Technopolymer with stainless steel shim ring |
| 4 | DIFFUSER MONO BLOCK GROUP VENTURI TUBE-NOZZLE | Technopolymer |
| 5 | SHAFT | Stainless steel X 12 CrNiS 1809 (AISI 416) |
| 6 | MECHANICAL SEAL | Graphite |
| 7 | COUNTERFACE | Ceramic |
| 8 | SEAL HOLDER PLATE | Technopolymer (JS45 and JS60) Stainless steel X5 CrNi 1810 ( AISI 304) JS90 |
| 9 | GASKETS | NBR 70 Shore |
