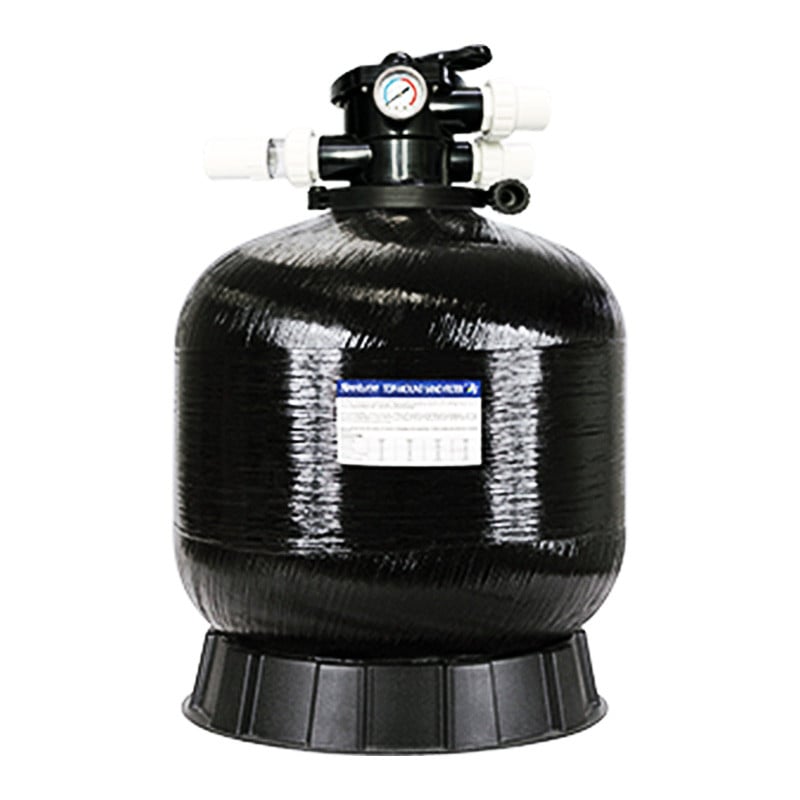

Pool Pro Neptune SF500 Sand Filter

Pool Pro Neptune SF500 Sand Filter

SKU:
SF500

PRODUCT INFORMATION

Neptune SF500 20` Fibrelgass Sand Filter 40mm Valve.

  • 20` filter with standard multiport valve.
  • 40mm valve port size.
  • 11.10m³/h max flow rate.
  • 0.22m² filter area.
  • Stainless steel clamp lock.
  • Oil filled back centre mount pressure gauge.
  • Australian design.
  • UV treated tank.
  • Suitable for all filter media: sand, zeolite & glass.
  • 10 year warranty on tank, 2 year warranty on MPV, 1 year warranty on all other parts.
  • Spare parts available.
  • Also available in 7 other models/sizes.

FEATURES & BENEFITS

Neptune Sand Filters are made of spun fiberglass, are built to last and include many great features:

  • Top quality Austrian made Praher multi port valve.
  • Stainless steel clamp lock designed to allow 360 degree rotation to assist with installation.2
  • Top diffuser ensures even distribution of water over the filter media.
  • Oil filled lower mount pressure gauge.
  • Materials are reliable, non-corrosive and designed for all weather conditions.
  • UV treated to be able to work in direct sunlight.
  • Suitable for all filter media; sand, zeolite and glass.
  • Warranty: 10 years on tank, 2 years on multi port valve for SF500-SF800. 5 years on tank, 1 year on standard valve for ECSF900 & ECSF1200.

TECHNICAL DATA

Filter Size
Model Valve Type Valve Port Size Filter Area (m2 ) Max Flow Rate
20 inch SF500 Praher 40mm / 1.5” 0.22 185 Lpm 11.10m3 /h
25 inch SF650 Praher 40mm / 1.5” 0.32 260 Lpm 15.60m3 /h
28 inch SF700 Praher 50mm / 2.0” 0.40 325 Lpm 19.50m3 /h
32 inch SF800 Praher 50mm / 2.0” 0.50 415 Lpm 24.9m3 /h
36 inch ECSF900 Standard 50mm / 2.0” 0.64 520 Lpm 31.20m3 /h
48 inch ECSF1200 Standard 50mm / 2.0” 1.13 860 Lpm 51.60m3 /h



PRODUCT DIMENSIONS

Model
 A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Sand Kg / Bags Zeolite Kg / Bags Coarse Glass Kg / Bags Fine Glass Kg / Bags
20 inch SF500 535 500 845 670 730 235 80 / 4 60 / 4 25 / 2 40 / 3
25 inch SF650 635 500 950 775 835 300 140 / 7 105 / 7 45 / 3 60 / 4
28 inch SF700 710 500 1020 877 960 390 220 / 11 165 / 11 60 / 4 105 / 7
32 inch SF800 800 753 1200 1002 1085 425 260 / 13 195 / 13 75 / 5 120 / 8
36 inch ECSF900 900 780 1300 1090 1172 480 470 / 24 345 / 24 150 / 10 225 / 15
48 inch ECSF1200 1200 1000 1600 1468 1550 740 860 / 43 645 / 3 270 / 18 405 / 27

LITERATURE

Pool Pro Neptune SF500 Sand Filter Pool Pro Neptune SF500 Sand Filter Brochure
