PRODUCT INFORMATION

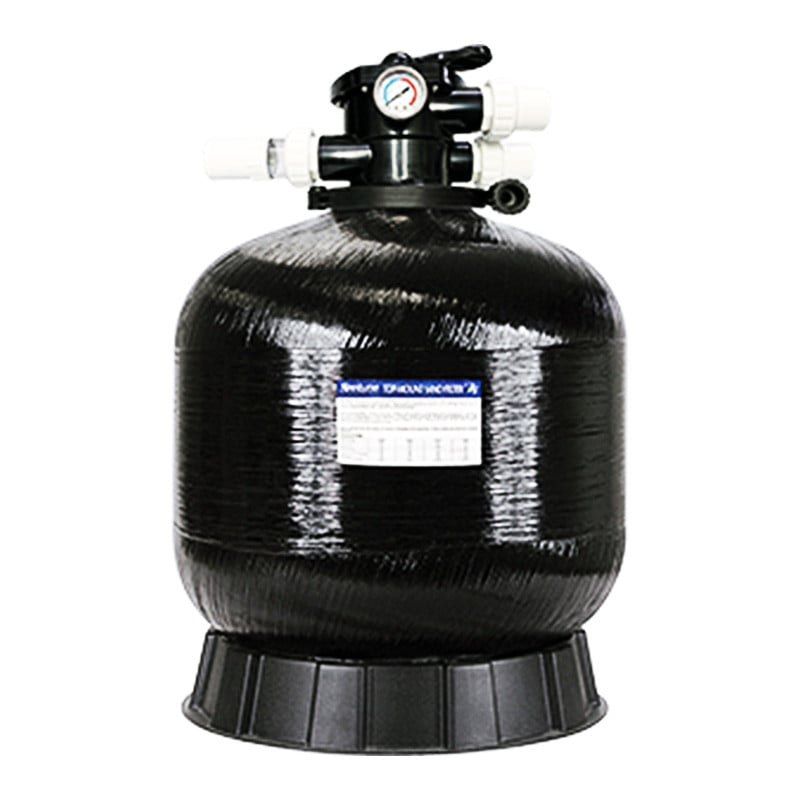

Neptune SF800 32` Fibreglass Sand Filter 50mm Valve.
- 32` filter with standard multiport valve.
- 50mm valve port size.
- 24.9m³/h max flow rate.
- 0.5m² filter area.
- Stainless steel clamp lock.
- Oil filled back centre mount pressure gauge.
- Australian design.
- UV treated tank.
- Suitable for all filter media: sand, zeolite & glass.
- 10 year warranty on tank, 2 year warranty on MPV, 1 year warranty on all other parts.
- Spare parts available.
- Also available in 7 other models/sizes.
FEATURES & BENEFITS
Neptune Sand Filters are made of spun fiberglass, are built to last and include many great features:
- Top quality Austrian made Praher multi port valve.
- Stainless steel clamp lock designed to allow 360 degree rotation to assist with installation.2
- Top diffuser ensures even distribution of water over the filter media.
- Oil filled lower mount pressure gauge.
- Materials are reliable, non-corrosive and designed for all weather conditions.
- UV treated to be able to work in direct sunlight.
- Suitable for all filter media; sand, zeolite and glass.
- Warranty: 10 years on tank, 2 years on multi port valve for SF500-SF800. 5 years on tank, 1 year on standard valve for ECSF900 & ECSF1200.
TECHNICAL DATA
Filter Size |
Model | Valve Type | Valve Port Size | Filter Area (m2 ) | Max Flow Rate |
20 inch | SF500 | Praher | 40mm / 1.5” | 0.22 | 185 Lpm 11.10m3 /h |
25 inch | SF650 | Praher | 40mm / 1.5” | 0.32 | 260 Lpm 15.60m3 /h |
28 inch | SF700 | Praher | 50mm / 2.0” | 0.40 | 325 Lpm 19.50m3 /h |
32 inch |
SF800 | Praher | 50mm / 2.0” | 0.50 | 415 Lpm 24.9m3 /h |
36 inch | ECSF900 | Standard | 50mm / 2.0” | 0.64 | 520 Lpm 31.20m3 /h |
48 inch | ECSF1200 | Standard | 50mm / 2.0” | 1.13 | 860 Lpm 51.60m3 /h |
PRODUCT DIMENSIONS
Model |
A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Sand Kg / Bags | Zeolite Kg / Bags | Coarse Glass Kg / Bags | Fine Glass Kg / Bags |
20 inch SF500 | 535 | 500 | 845 | 670 | 730 | 235 | 80 / 4 | 60 / 4 | 25 / 2 | 40 / 3 |
25 inch SF650 | 635 | 500 | 950 | 775 | 835 | 300 | 140 / 7 | 105 / 7 | 45 / 3 | 60 / 4 |
28 inch SF700 | 710 | 500 | 1020 | 877 | 960 | 390 | 220 / 11 | 165 / 11 | 60 / 4 | 105 / 7 |
32 inch SF800 | 800 | 753 | 1200 | 1002 | 1085 | 425 | 260 / 13 | 195 / 13 | 75 / 5 | 120 / 8 |
36 inch ECSF900 | 900 | 780 | 1300 | 1090 | 1172 | 480 | 470 / 24 | 345 / 24 | 150 / 10 | 225 / 15 |
48 inch ECSF1200 | 1200 | 1000 | 1600 | 1468 | 1550 | 740 | 860 / 43 | 645 / 3 | 270 / 18 | 405 / 27 |
LITERATURE
Pool Pro Neptune SF800 Sand Filter Brochure |
