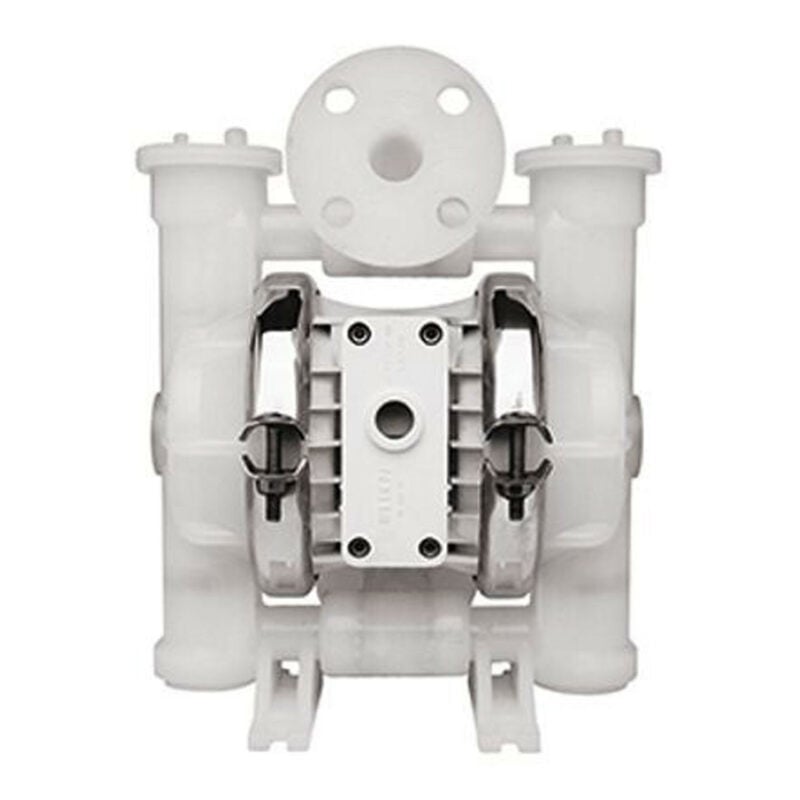

Wilden P2 AODD Pump, 25mm Pro-Flo, Clamped PVDF, ANSI

SKU:
P2-PVDF-ANSI

PRODUCT HELP

Below are two guides to help you with product selection; temperature limits and a chemical guide. For further information please check features and specifications.

TEMPERATURE LIMITS

Please Note: It is IMPORTANT to also read Section 1 of the applicable Wilden Brochure which explains Pump and Diaphragm temperature limits. This will help you with selecting the correct pump for you application.

Diaphragm Material Temperature Limit
Acetal –29°C to 82°C
Buna-N –12°C to 82°C
Geolast® –40°C to 82°C
Neoprene –18°C to 93°C
Nordel® EPDM –51°C to 138°C
Nylon –18°C to 93°C
PFA –7°C to 107°C
Polypropylene 0°C to 79°C
Polyurethane –12°C to 66°C
PVDF –12°C to 107°C
PTFE 4°C to 104°C
PTFE with EPDM-backed 4°C to 137°C
PTFE with Neoprene-backed 4°C to 93°C
Saniflex™ –29°C to 104°C
Viton® FKM –40°C to 177°C
Wil-Flex™ (Santoprene) –40°C to 107°C

CHEMICAL GUIDE

The Wilden chemical resistance guide is compiled from numerous reliable sources and cross-checked; however, it is only intended as an additional source of information. Diaphragm life not only depends on a diaphragm’s chemical compatibility with the process fluid but also on the process conditions. These conditions will vary depending on the abrasiveness of your process fluid, temperature, size of diaphragm, pumping media and lift conditions. Consult your authorized Wilden distributor regarding which diaphragm material will work best for your application requirements.

PRODUCT INFORMATION

As part of the Wilden® Pro-Flo® Series of AODD pumps, this pump has been specifically designed to increase productivity while reducing air and energy consumption. It utilizes a clamped-band design for easy assembly and disassembly. Designed for difficult applications, this pump is perfect for dangerous/valuable chemical applications and wastewater applications where flow, efficiency and routine maintenance are required.

CERTIFICATIONS

Wilden Pump & Engineering LLC has met the criteria for placing the CE mark on our product line. On December 3, 1999, Wilden fully self-certified its product line by meeting all the regulations of the Machinery and PED (Pressure Equipment) Directives. Every pump manufactured by Wilden will now receive the CE mark. Each pump box will also include a Safety Supplement manual in the eleven official languages of the European Community.

FEATURES

FEATURE DESCRIPTION
Robustness Fitted with robust Pro-Flo ADS
Fast Maintenence Clamped connections for faster maintenance
No Priming Self Priming
Run Dry Dry run without damage
Shearing Shear-sensitive
Longevity Longest Mean Time Between Repair (MTBR)
Temperature Tolerance Superior anti-freezing
Reliability Increased On/Off reliability

SPECIFICATIONS

SPECIFICATION DESCRIPTION
Series Pro-Flo
Model P2
Inlet 25mm (1")
Outlet 25mm (1")
Air Inlet 6mm (0.25")
Material PVDF
Assembly Clamped
Connection Type ANSI
Piston Traditional
Stroke Full Stroke
Max Flow Rate 140 lpm (37 gpm)
Wetted Path Material PVDF
Gearing 1:1
Max Air Pressure 125 psi
Max. Solids Passage 3.2 mm (1/8")
Weight 10 kg (23 lbs)
Size (HxWxD) 356 x 296 x 231(mm)
Please Note: Specification's are a guild only and may change without notice. Please also read the applicable Wilden Brochure for full specifications. E&OE.

LITERATURE AND DRAWINGS

Wilden General Brochure (WIL-18040-C)
Wilden Original Plastic Brochure (WIL-10010-C)
Wilden P2 Plastic EOM (WIL-10150-E)
