PRODUCT INFORMATION

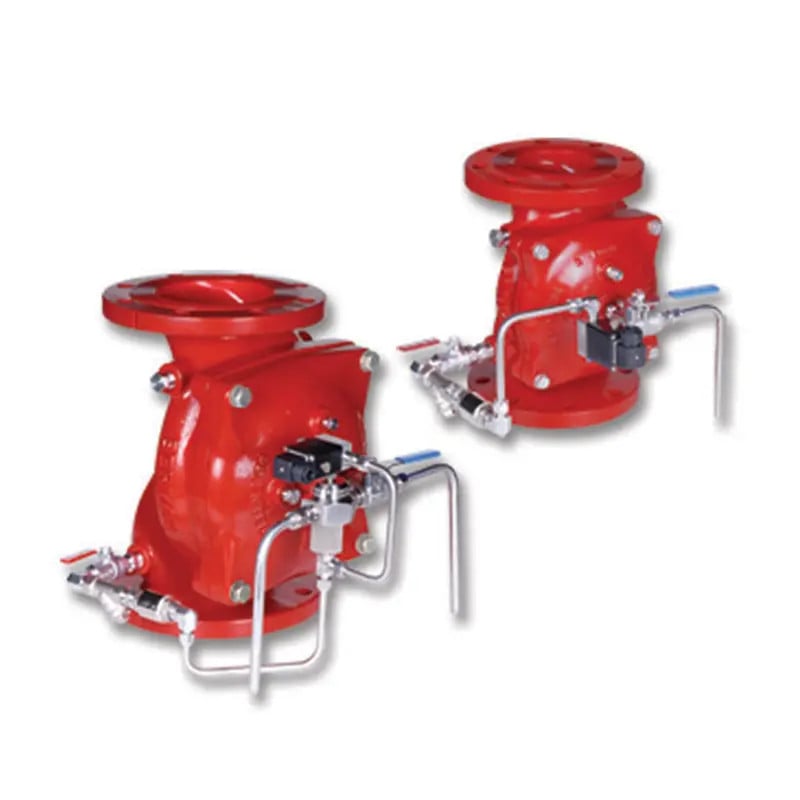

Bermad FP 400E-3X Solenoid Activated Remote Controlled Monitor Valve

Bermad Remote Controlled On-Off valves replace motor driven valves or actuated quarter turn valves. They are especially suitable for oscillating or remote controlled monitors, and for installation in modern foam systems where a shut-off function is required. The hydraulic actuation by a compact solenoid saves resources, while providing maximum safety.

FEATURES & BENEFITS

• 3-Way control system – Avoids continuous releasing
• Smooth opening and closing characteristics – Prevents water surge
• One-piece molded elastomeric moving part – No maintenance required
• Quick cover removal – Minimal downtime

TECHINCAL DATA

OPERATION

The Model FP 400E-3X is an on/off solenoid controlled valve designed to open and close drip-tight in response to an electric signal. It is a line pressure driven, diaphragm actuated globe valve. The valve uses line-pressure [1] to develop maximum hydraulic power and does not require external power. Through the override cock valve [2], the 3-way solenoid [3] either applies upstream pressure to the valves control chamber [4] to close the main valve, or vents the control chamber allowing the main valve to open. For 4” valves and larger, an accelerator [5] quickens valve reaction. The Model FP 400E-3X can be supplied in either the standard normally closed (energize to open) or the optional failsafe open (energize to close) configuration. The solenoid can be supplied in various voltages and specifications. The Check Valve [6] traps high pressure peaks, ensuring that the valve remains locked in the closed position to maintain drip-tight sealing.

LITERATURE

Bermad FP 400E-3X Solenoid Activated Remote Controlled Monitor Valve Brochure
