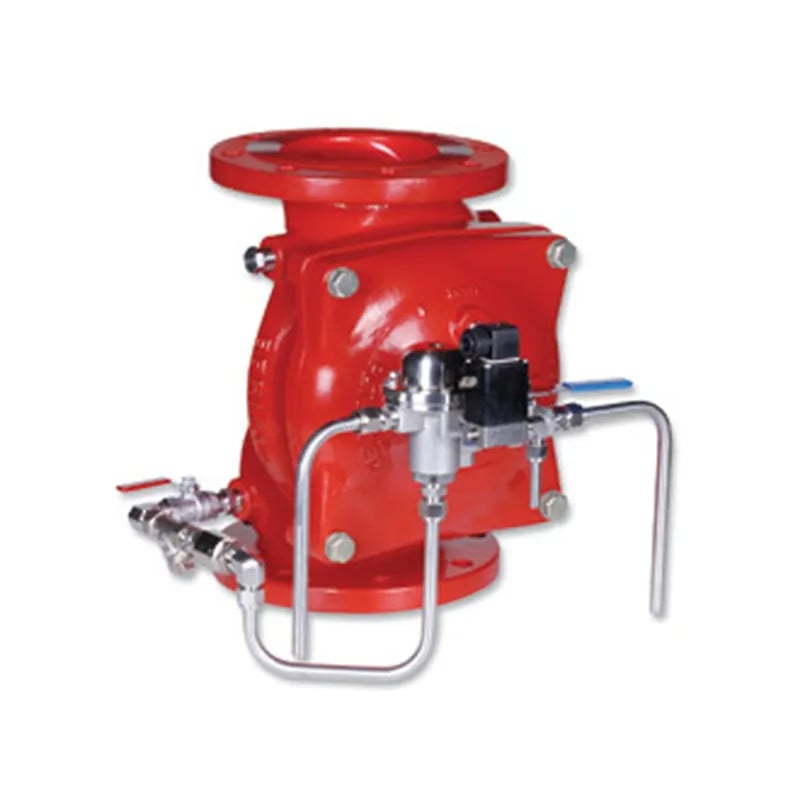

Bermad FP 400E-6X Electro-Pneumatically Operated Remote Controlled Monitor Valve
These Bermad Remote Controlled On-Off valves replace motor driven valves or actuated quarter turn valves. They are especially suitable for oscillating or remote controlled Monitors, and for installation in modern foam systems where a shut-off function is required. The Electro Pneumatic actuation by a compact solenoid saves resources, while providing maximum safety also in seawater and foam concentrate applications.
FEATURES & BENEFITS
- 3-Way control system – Avoids continuous releasing
- Simple design – Cost effective
- Smooth opening and closing characteristics – Prevents water surge
- One-piece molded elastomeric moving part – No maintenance required
- Quick cover removal – Minimal downtime
- Remote reset – Shut-off on remote command
TECHINCAL DATA
OPERATION
The Model FP 400E-6X is an on/off solenoid controlled valve designed to open and close drip-tight in response to an electric signal, using external pneumatic pressure (see data for minimum air pressure supply). It is a line pressure driven, diaphragm actuated globe valve, which harnesses line pressure [1] to develop maximum hydraulic power. Dry pilot line pneumatic pressure [2] is applied, through a 3-Way Solenoid [3], to a 3-way Relay Valve (HRV-3) [4], opening it. Through the override cock valve [5], the HRV-3 applies upstream pressure to the valve’s control chamber [6] closing the main valve. The Model FP 400E-6X can be supplied in either the standard normally closed (energize to open) or the optional fail safe open (energize to close) configuration. The solenoid can be supplied in various voltages and specifications. The Check Valve [7] traps high pressure peaks, ensuring that the valve remains locked in the closed position to maintain drip-tight sealing
