Bermad FP 400E-5X Hydraulically Operated Remote Controlled Monitor Valve

SKU:
FP-400E-5X

PRODUCT INFORMATION

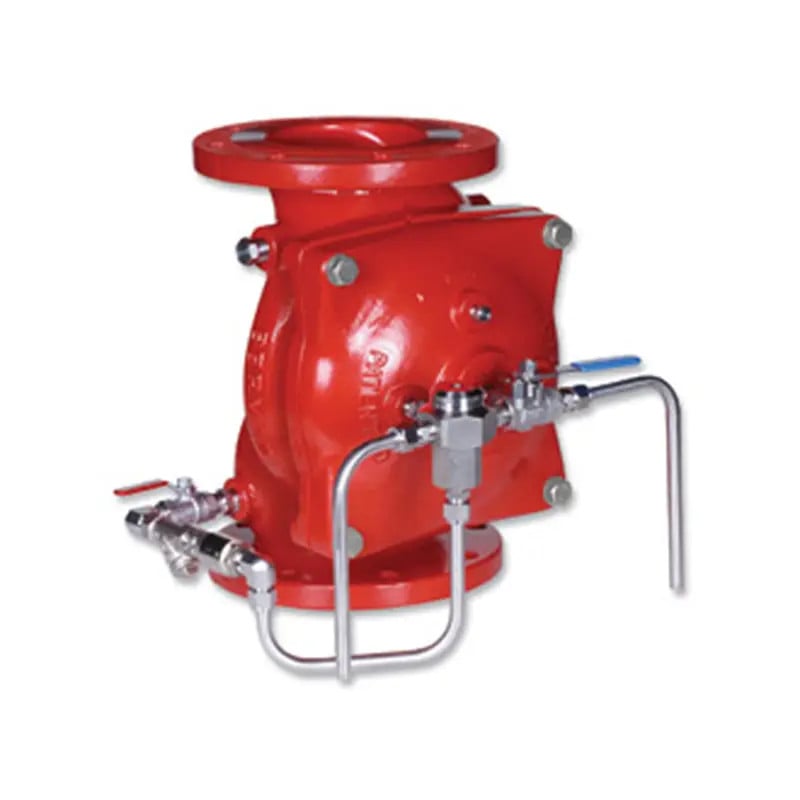

Bermad FP 400E-5X Hydraulically Operated Remote Controlled Monitor Valve

Bermad Remote Controlled On-Off valves replace motor driven valves or actuated quarter turn valves. They are especially suitable for oscillating or remote controlled monitors, and for installation in modern foam systems where a shut-off function is required.

The Hydraulic actuation features boosted local pressure release from the valve’s control chamber, providing maximum safety in systems with long hydraulic remote control piping lines.

FEATURES & BENEFITS

  • 3-Way control system – Avoids continuous releasing
  • Simple design – Cost effective
  • Smooth opening and closing characteristics – Prevents water surge
  • One-piece molded elastomeric moving part – No maintenance required
  • Quick cover removal – Minimal downtime
  • Remote reset – Shut-off on remote command

TECHINCAL DATA

OPERATION

The Model FP 400E-5X is an on/off solenoid controlled valve designed to open and close drip-tight in response to an electric signal, using external pneumatic pressure (see data for minimum air pressure supply). It is a line pressure driven, diaphragm actuated globe valve, which harnesses line pressure [1] to develop maximum hydraulic power. Dry pilot line pneumatic pressure [2] is applied, through a 3-Way Solenoid [3], to a 3-way Relay Valve (HRV-3) [4], opening it. Through the override cock valve [5], the HRV-3 applies upstream pressure to the valve’s control chamber [6] closing the main valve.

The Model FP 400E-5X can be supplied in either the standard normally closed (energize to open) or the optional fail safe open (energize to close) configuration. The solenoid can be supplied in various voltages and specifications. The Check Valve [7] traps high pressure peaks, ensuring that the valve remains locked in the closed position to maintain drip-tight sealing

LITERATURE

Bermad FP 400E-5X Hydraulically Operated Remote Controlled Monitor Valve Bermad FP 400E-5X Hydraulically Operated Remote Controlled Monitor Valve Brochure
