PRODUCT INFORMATION

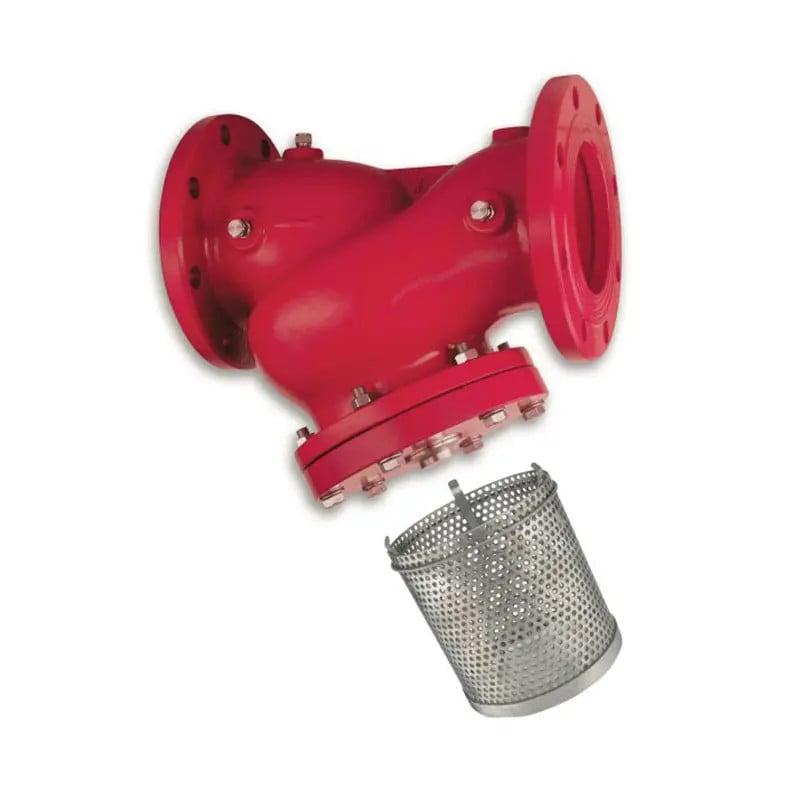

Bermad FP-70F Strainer

The BERMAD FP 70F Strainer is designed to remove foreign matter such as stones, sticks, etc, from the pipeline. It is recommended to install the strainer upstream from control valves, flow meters and other system appliances.

FEATURES & BENEFITS

• Large trap capacity
• Low pressure loss
• Blow-off port for easy cleaning

TECHINCAL DATA

• Patterns: “Y” (globe) & angle
• Size Range: 11/2 - 20” (40-500 mm)
• End Connections (Pressure Ratings):
• Flanged: ISO PN16, PN25
• (ANSI Class 150, 300)
• Threaded: BSP or NPT
• Others: Available on request
• Working Temperature: Water up to 80˚C (180˚F)
• Standard Materials:
• Body: Ductile Iron
• Cover: Steel
• Screen / Basket: Stainless Steel 304
• Seals: NBR (Buna N)
• Coating:
• RAL 3002 (Red), Electrostatic Polyester Powder or
• High Build Epoxy Fusion-Bonded (optional)

LITERATURE

Bermad FP-70F Strainer Brochure
