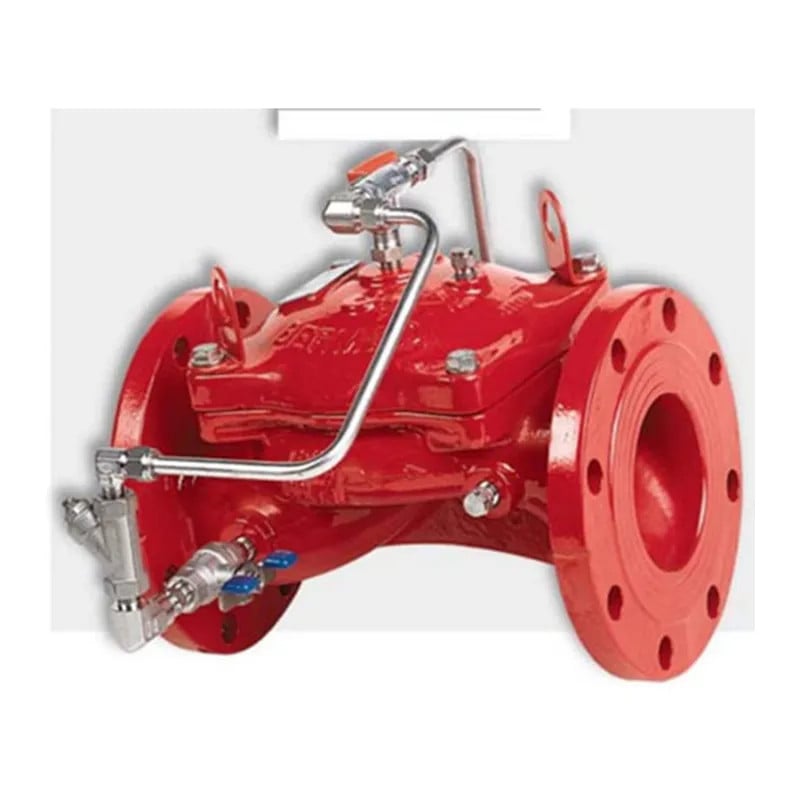

Bermad FP 405-11 Manually-Operated Monitor Valve
APPLICATION:
- Quick and easy manual opening requires only 1/4 turn of pilot handle
- High flow capacity
- One piece vulcanized diaphragm
- No distortion due to high differential pressure Reliability
- Quick cover removal – minimal downtime
- Simple design – cost-effective
- Unobstructed flow-path with no supporting ribs
FEATURES & BENEFITS
- Quick & easy operation ־ Requires only ¼ turn of the pilot valve handle
- One-piece molded elastomeric moving part –
- No maintenance required
- In-line, quick cover removal ־ Minimal downtime
- Simple design ־ Cost effective
- Unobstructed flow path ־ No supporting ribS
TECHINCAL DATA
OPERATION
The BERMAD Model FP 405-11 is a simply designed, manually operated, on/off valve. It is particularly suited for monitors and industrial high capacity hydrants. The Model FP 405-11 is held closed by line-pressure [1] applied to the control chamber [2] of the valve. The closed valve prevents the water (or water foam) from passing through the valve, keeping the downstream piping dry. In the set position, the line pressure is applied to the control chamber of the valve. The pressure holds the main valve’s diaphragm and plug against the valve seat [3]. Seal is drip tight. The Check Valve [4] traps high pressure peaks ensuring that the valve remains locked in the closed position to maintain drip tight sealing.To open, a ¼ turn of the Manual Release Pilot [5] handle releases pressure from the control chamber through the opened Manual Release Valve. The diaphragm plug is then pushed open by the upstrim force at its bottom, allowing water to flow into the system
LITERATURE
 |
Bermad FP 405-11 Manually-Operated Monitor Valve Brochure |
