PRODUCT INFORMATION

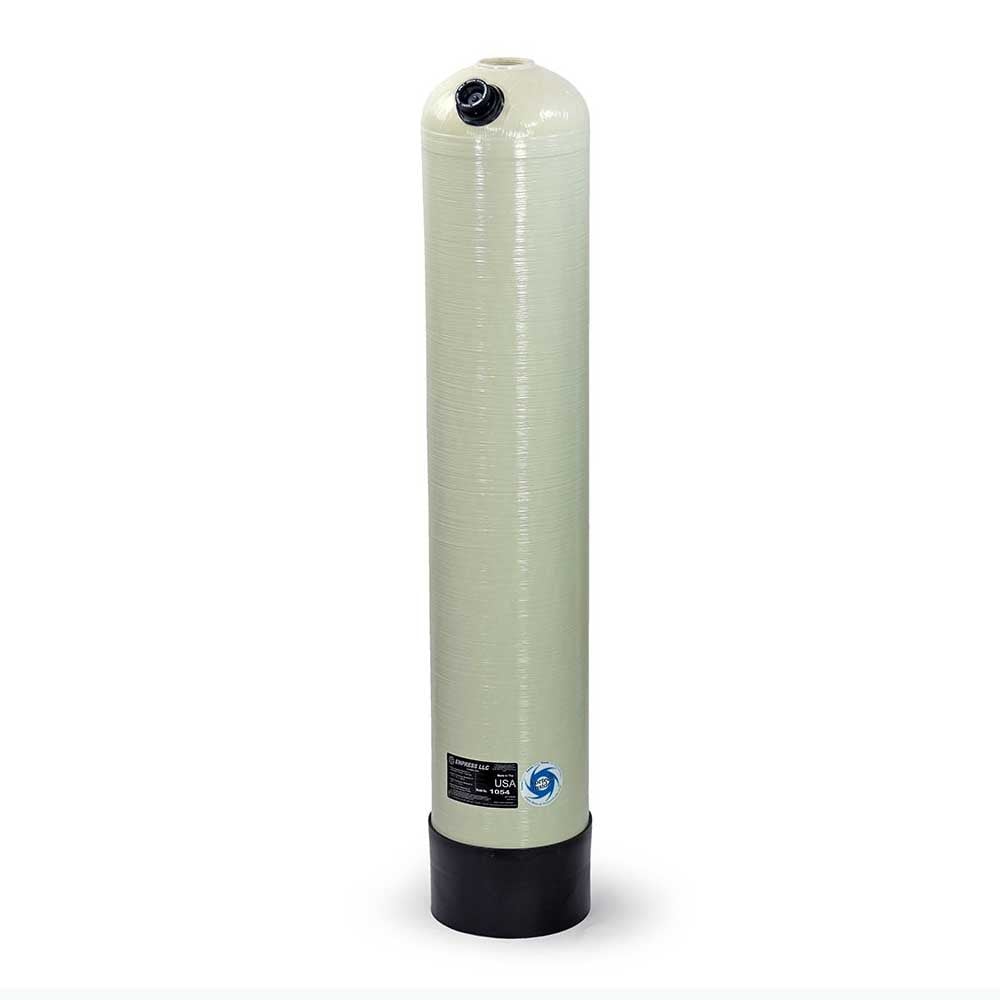

Clack Dome Hole Tanks
Clack Corporation introduces a revolutionary design for Dome Hole Tanks. The tanks have a large dome opening with a proprietary coarse thread design. Opens easily to refill media as needed and is easy to clean, allowing no media to be trapped in threads. The plug has two safety lock positions to help prevent an accidental discharge if the tank is not properly depressurized. When the tank is depressurized, press in on the center of the plug to disengage the lock before unthreading the plug.
Now available in 10”x54”, 12”x52”
and 13”x54” sizes.
FEATURES & BENEFITS

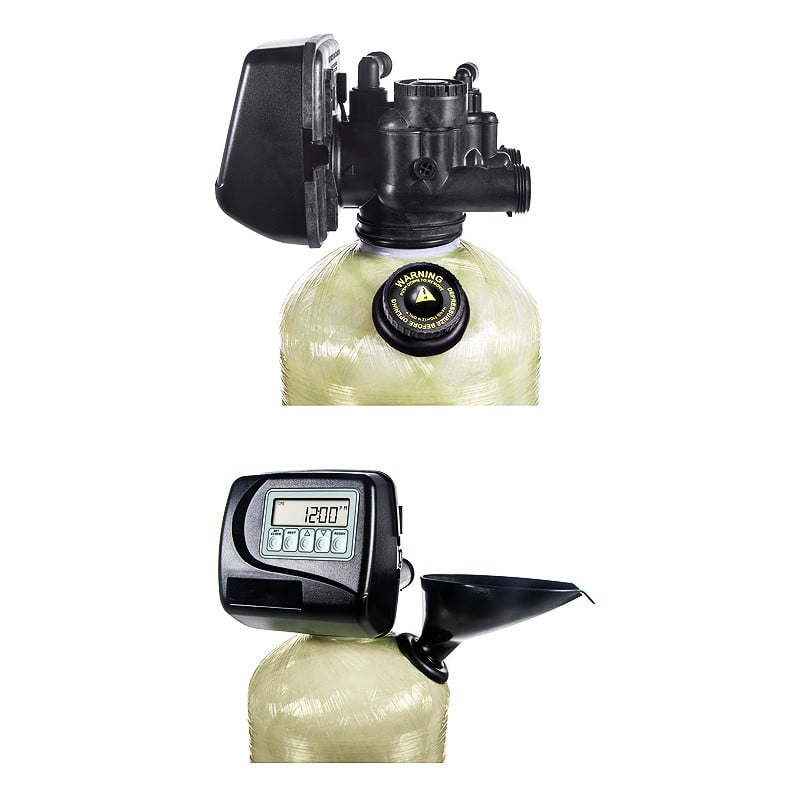

Dome Hole Funnel
Clack designed a unique funnel to be used for refilling media when it’s needed. The funnel fits securely in the dome hole with an extra wide open area for easy filling. The “hands free” funnel has a groove lock to keep it in the proper orientation while filling.
Shim o-rings are available that provide 60° and 120° offsets for Clack Control Valves and In/ Out heads to assure proper “Valve to Dome Hole” orientation, if needed
TECHNICAL DATA
Dome Hole Tanks
| ORDER NUMBER |
DESCRIPTION | EVEN BOX QUANTITY |
| C81054*61E10 |
10x54 (color) Dome Hole MT | 16 |
| C81252*61E10 |
12x52 (color) Dome Hole MT | 9 |
| C81354*61E10 | 13x54 (color) Dome Hole MT | 9 |
| D1340 | Dome Hole Funnel | 16 |
| V3786 |
Shim 60 Degree Clack Valve & Head Only | Order as needed |
| V3787 | Shim 120 Degree Clack Valve & Head Only | Order as needed |
OPERATING PARAMETERS AND SPECIFICATIONS
- Maximum operating pressure: 150 psi
- Maximum operating temperature: 120°F
- For filtration applications
- Capacities from 16 to 28 gallons
- 10-year warranty
- Safety factor: 4:1
- Minimum burst at 600 psi
- Tested to 100,000 cycles / 0-150 psi without leakage
LITERATURE
 |
Clack Dome Hole Tanks Brochure |
