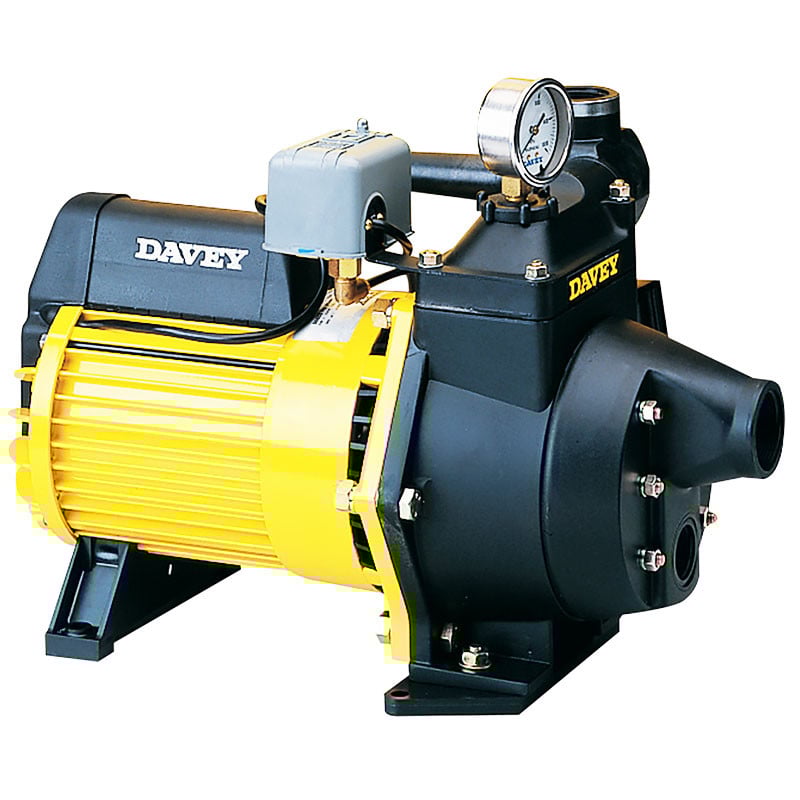

Rugged, Reliable Single Stage Jet Assisted Pump.
Used in conjunction with Deep Well injector kits, these pumps are Ideal for supplying high-pressure water from bores to 42m depth for:
- Water supply
- Tank filling
- Stock watering
- Sprinkler supply.
Pumps can also be used in applications where pump needs to be horizontally offset from the water supply.
FEATURES & BENEFITS
- High TEFC - IP rating for long-term protection against vermin, dust, and water.
- Manufactured from quality corrosion-resistant materials.
- Pump casing made from marine grade aluminium for high tensile strength, with a unique internal Rilsan® casing injection moulded for wet areas, providing outstanding resistance to aggressive water.
- Versatile pump - convertible to match different suction lifts
- Easily converted to automatic or manual operation
- Pumping system can be used for ‘offset’ installations
- Automatic Demand Response (ADR) fitted to provide peak performance and loss of prime discharge shut down.
- 165D available with 3 phase motor
- • Low maintenance
- O-ring seal hand tightened priming plug for easy operation
PUMP
- Single stage jet assisted centrifugal*
- Marine grade aluminium pump body with Rilsan® lining
- ADR valve fitted
- Pressure switch fitted
- Pressure gauge supplied
MOTOR
- Davey manufactured
- 2 pole, 2900rpm, 50Hz
- Class F insulation, IP56
- Permanently split, P2 metal jacket ‘fail safe’ capacitors designed for single phase motors
- Double contact seal C3, high temperature greased bearings
- Inbuilt thermal overload protection with automatic reset in all 1ø models
*Note: Pump requires correctly installed and selected Deep Well Injector Kit to operate as per the included performance data
TECHNICAL DATA
OPERATING LIMITS
| Model | 125D |
| Maximum capacity (@140kPa, 6m suction) lpm | 96 |
| Maximum water temperature | 50°C |
| Minimum water temperature | 1°C |
| Outlet size | 1 1/2" BSP(F) |
| Suction pipe sizes | Refer injector kit |
ELECTRICAL DATA
| Model | HS60-08T |
| Supply voltage (1ø) | 220-240 |
| Supply voltage (3ø) | N/A |
| Output power (kW) | 1.4 |
| Maximum rated current (A) @ 240V / 415V | 8.5 |
| Locked rotor current (A) @ 240V / 415V | 25 |
| Insulation class | F |
| IP rating | IP56 |
| Starting (1ø) | P.S.C |
MATERIALS OF CONSTRUCTION
| PART | MATERIAL |
| Suction cover | Aluminium-Rilsan® lined |
| Pump body | Aluminium-Rilsan® lined |
| Discharge port | Aluminium-Rilsan® lined |
| Diffuser | Glass filled Nory |
| Backplate | Glass filled Noryl |
| Impeller | Glass filled polycarbonate |
| Seal ring (stationary) | Ceramic |
| Seal ring (rotating) | Carbon |
| O-rings | Nitrile rubber |
| Priming plug | Nylon |
| Shaft | 304 stainless steel |
| Motor shell | Aluminium |
| Motor shell finish | Polyester powder coat |
| Capacitor cover | Polypropylene |
| Terminal box cover | Polypropylene |
| Mounting feet | Xenoy® |
INJECTOR OD (MAX.)
| Type | To Suit | Max. OD |
| 23100 | Nominal 4" Bore | 85 |
| 23125 | Nominal 5" Bore | 111 |
INSTALLATION & PRIMING
- To prime, fill pump body, suction and pressure pipes, and injector through priming plug hole and replace plug.
Note: For complete details consult the installation and operating instructions.
DRAWINGS
 |
 |
LITERATURE
 |
Davey 095D1 Single Stage Jet Assisted Pump Brochure |
