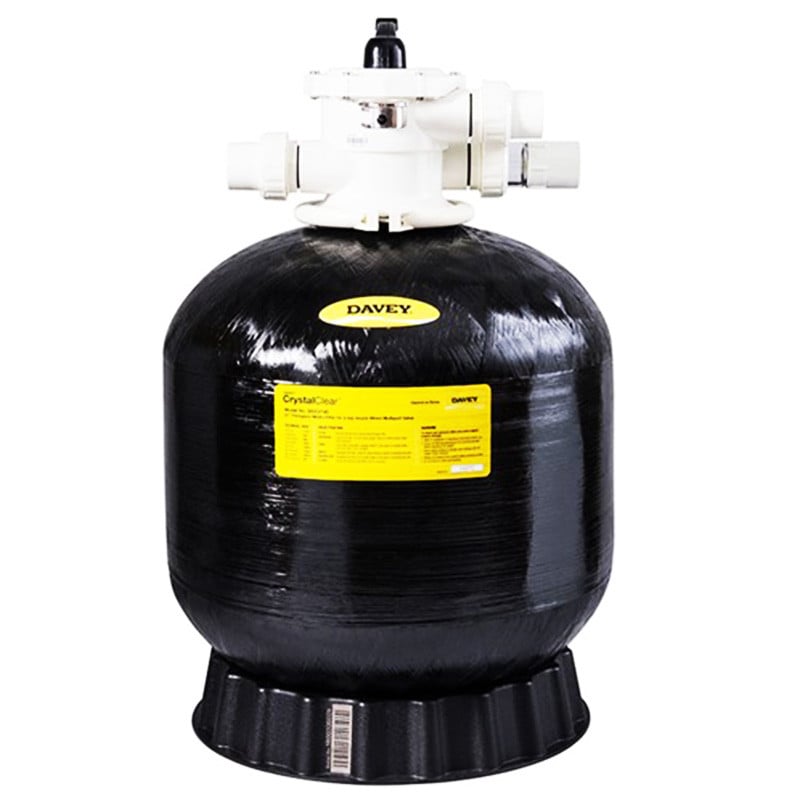

Davey CrystalClear® DCC2550 Media Filter

SKU:
DCC2550

PRODUCT INFORMATION

For 88 years and still counting, Davey has been manufacturing products that help protect and enhance people’s lives. Whether you need perfect pressure, healthy drinking water, protection from fire and flood, a clean, relaxing pool or spa, or water to run your farm or business, you can depend on Davey.

APPLICATION: Ideal for inground and above-ground pools, Suitable for salt, mineral salt and freshwater pools. Models suitable for pools up to 95,000 litres.

FEATURES & BENEFITS

PREMIUM FIBREGLASS MEDIA FILTERS

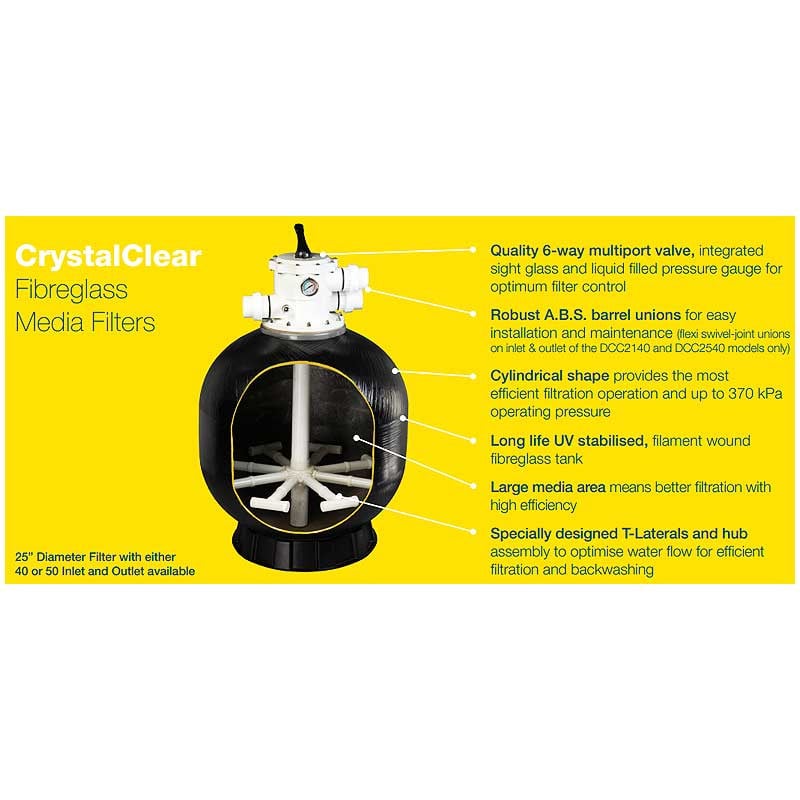

  • Specially designed “T-Lateral” System to maximise water flow for efficient filtration and backwashing
  • Virtually maintenance-free and easy to use
  • Constructed from strong corrosion and UV-resistant bobbin wound-reinforced fibreglass, providing long and reliable working life
  • Computer designed providing optimal tank strength and filtration performance
  • Large diameter tank for maximum filtration area
  • Up to 370 kpa operating pressure
  • Built-in waste port sight glass for high visibility of water during backwashing
  • Stainless steel liquid-filled pressure gauge makes it easy to see when backwashing is required
  • Suitable for sand, Zelbrite and glass media

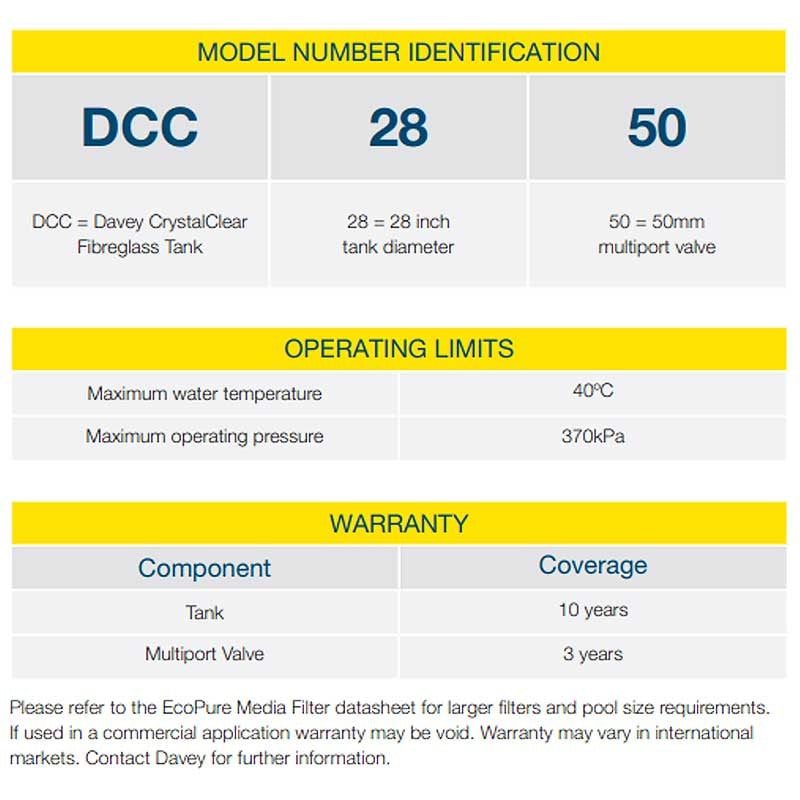

TECHNICAL DATA

PERFORMANCE DATA MEDIA REQUIRED

Model
Size (inches) Sand Required (kg/bags) Zelbrite Required (kg/bags) Glass Required
Fine/ Medium (kg/bags) - Medium/Coarse (kg/bags
Maximum Flow Rate (lpm) Minimum Backwash Flow Rate (lpm 6 Hour Turnover (litres) Filtration Area (m2) Max. Water Temp (ºC)/ Operating Pressure (kPa)
DCC2140 21'' 85/5 64/5 45/3 - 30/2 185 123 66,600 0.22 40/370
DCC2540 25'' 145/8 109/8 75/5 - 30/2 260 173 93,600 0.32 40/370
DCC2550 25'' 145/8 109/8 75/5 - 30/2 285 173 102,600 0.32 40/370
DCC2850 28’’ 215/11 161/11 105/7 - 45/3 336 224 120,960 0.38 40/370

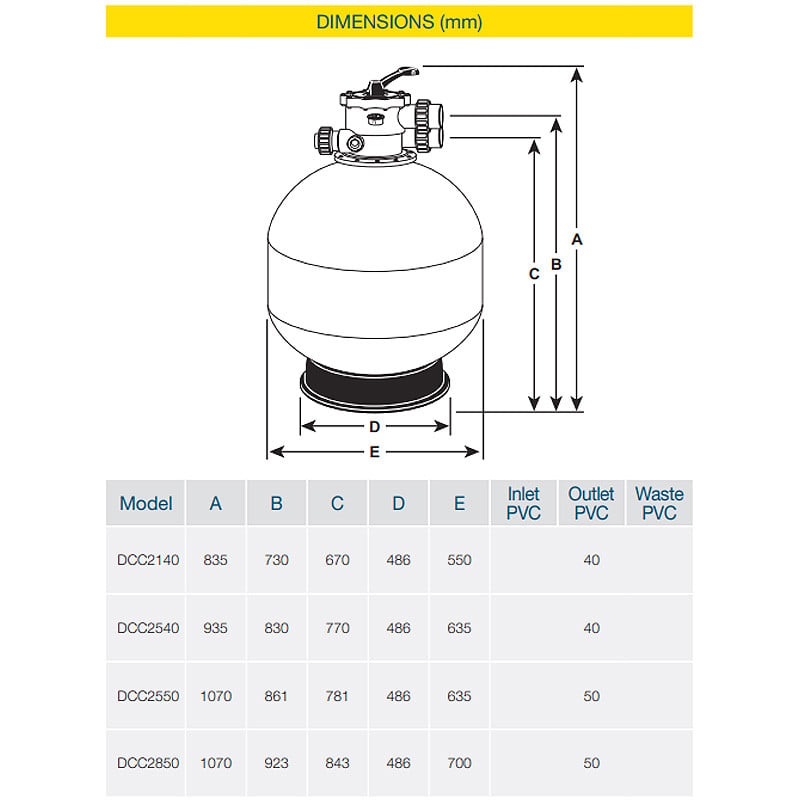

DRAWINGS

LITERATURE

Davey CrystalClear DCC2140 Media Filter Brochure Davey CrystalClear DCC2550 Media Filter Brochure
