PRODUCT INFORMATION
REVOLUTIONARY WATER COOLED POOL PUMPS
APPLICATION: Ideal for filtration, auto pool cleaning, backwashing, water features and spa jet operation. Also ideal with solar, gas and heat pump spa & pool heating.
FEATURES & BENEFITS
SUPER-QUIET OPERATION AND HIGH EFFICIENCY
- Super-Quiet – Designed with a unique water-cooled motor which captures noise and vibrations, allowing super-quiet operation, rated between 54 and 56 dBa. Your neighbours won’t even know it’s there.
- Long Lasting – Silensor is designed for long service life in an outdoor, poolside environment and replaces highly corrodible metal components with high performance, long-life plastics for low maintenance and dependable service – year after year
- Dependable – Silensor incorporates unique dry run protection to minimise pump damage if no water is available to the pump. It also includes a unique mechanical seal protection for long service life and reduced maintenance
- Convenient – Patented water-cooled motor, Silensor does not require air ventilation, and gives installers more flexibility with pump positioning
- Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
- SLS models are an ideal replacement for many other pool pump models and are designed to retrofit with minimal hassle
- SLL models feature a large 4.5 litre leaf basket for long intervals between cleaning
- Other Great Features
- Rust-proof casing - Heavy duty motor impeller - 316 stainless steel pump shaft
- Motor shell protection with new Armourspray VC (Epoxy)
TECHNICAL DATA
ELECTRICAL DATA
| Type | SLS100 | SLS150 | SLS200 | SLS300 | SLL200 | SLL300 | SLL400 |
| Voltage (V) | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 |
| Supply Freq (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Motor Input Power (W/hP | 740/1.0 | 860/1.2 | 1090/1.5 | 1400/1.9 | 1130/1.5 | 1400/1.9 | 1760/2.4 |
| Motor Output Power (W/hP) | 525/0.7 | 620/0.8 | 775/1.0 | 960/1.3 | 830/1.1 | 960/1.3 | 1200/1.6 |
| RPM | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Enclosure Class (IP) | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Insulation Class | F | F | F | F | F | F | F |
| Approval No | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA |
| Lead Length | 3m | 3m | 3m | 3m | 3m | 3m | 3m |
OPERATING LIMITS
| Max water temperature | 40°C |
| Max ambient temperature | 40°C |
| Noise level (AS 5102.2) | 54 to 56dBa |

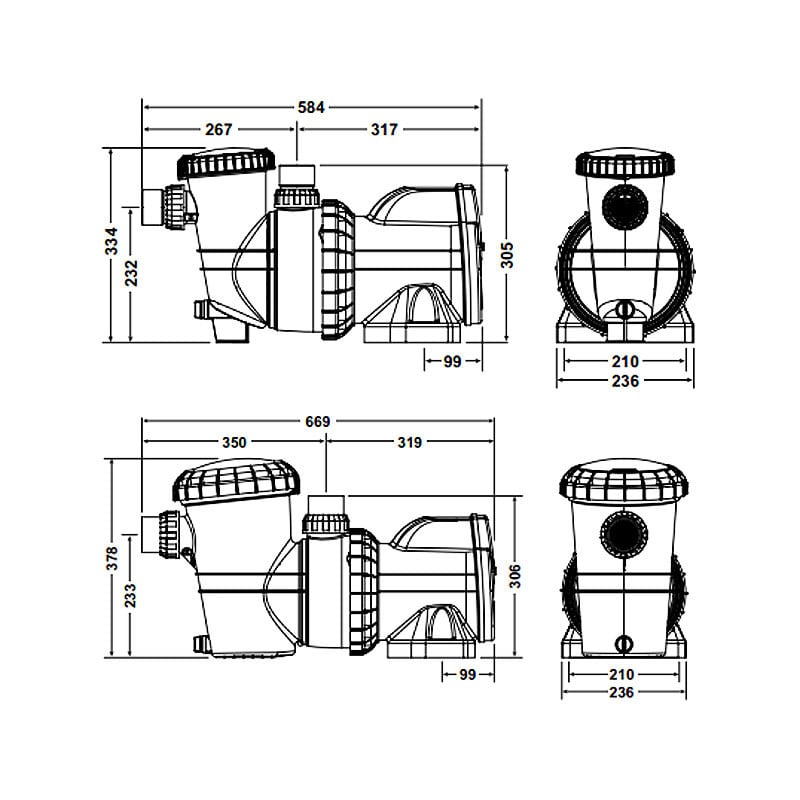

DIMENSIONS
| Type | Mounting Holes Diameter | Inlet PVC | Outlet PVC | Net Weight (kg) |
| SLS100 | 10 x 34 | 40 | 40 | 11.0 |
| SLS150 | 10 x 34 | 40 | 40 | 11.0 |
| SLS200 | 10 x 34 | 40 | 40 | 11.5 |
| SLS300 | 10 x 34 | 40 | 40 | 11.5 |
| SLL200 | 10 x 34 | 40 / 50 | 40 / 50 | 12.5 |
| SLL300 | 10 x 34 | 50 | 50 | 12.5 |
| SLL400 | 10 x 34 | 50 | 50 | 13.0 |
DRAWINGS
 |
 |
LITERATURE
 |
Davey SLS300 Water Cooled Pool Pumps Brochure |
