PRODUCT INFORMATION

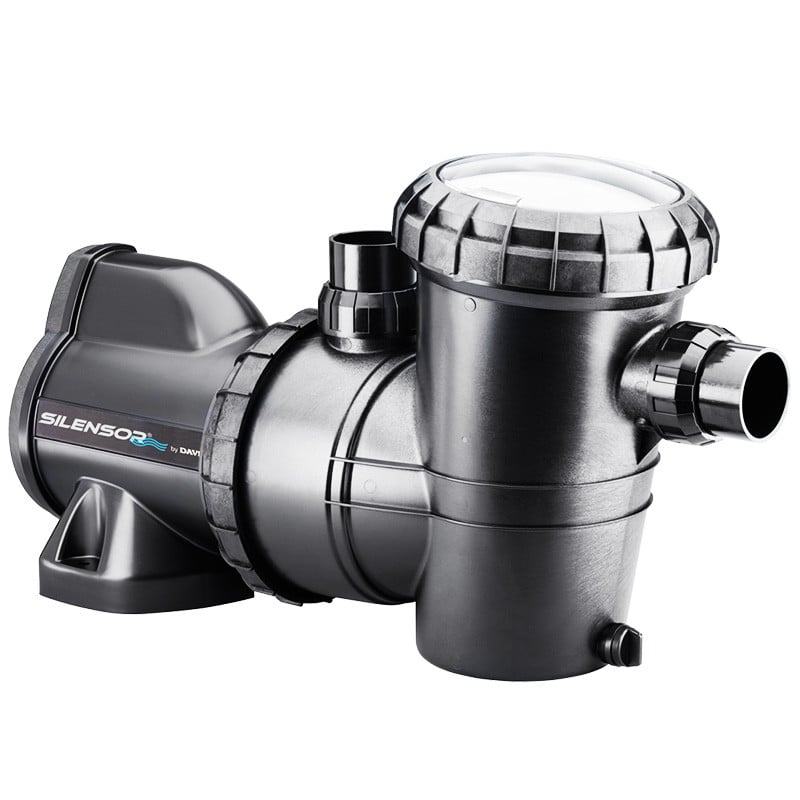

SILENSOR
With a revolutionary Water Cooled motor design, the Silensor pool pump offers efficient use all year round. A super quiet noise level allows you to run your pump at any time, day or night, making this the perfect single speed pool pump for any residential use, for filtration, water features, cleaning, backwash of residential media filters with ease.
Suitable for saltwater pools and available in single and three phase models, with flows up to 24m3/hr, the Silensor doesn't require ventilation meaning more flexibility for the installer and an automatic built-in thermal cut-out meaning there's no need for a separate safety switch.
APPLICATION
- Auto pool cleaning
- Backwashing
- Water features and spa jet operation
- Solar, gas and heat pump spa & pool heating.

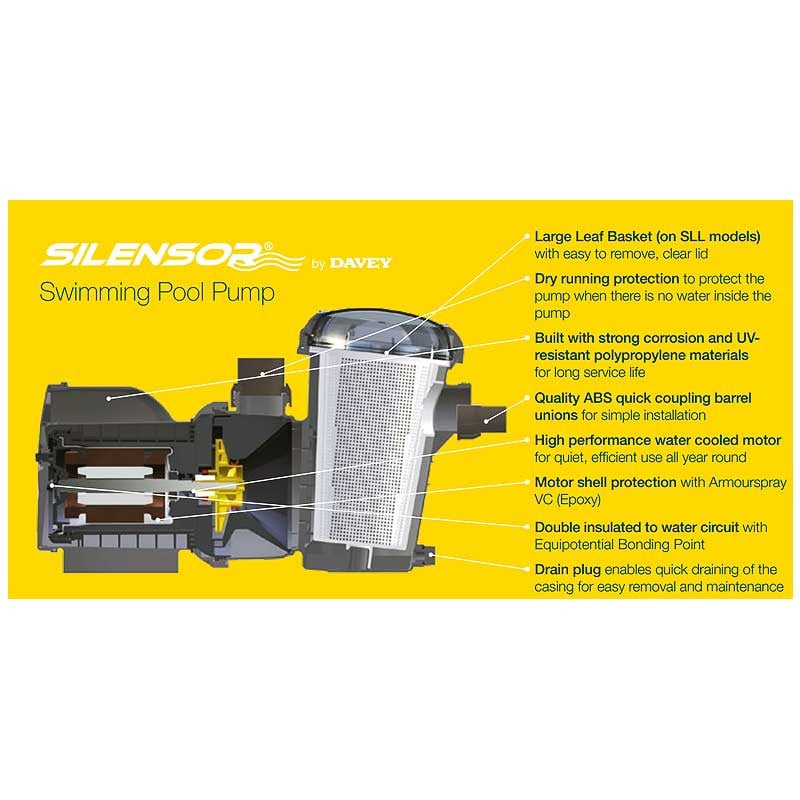

FEATURES & BENEFITS
SUPER-QUIET OPERATION AND HIGH EFFICIENCY
- Super-Quiet – Designed with a unique water-cooled motor which captures noise and vibrations, allowing super-quiet operation, rated between 54 and 56 dBa. Your neighbours won’t even know it’s there.
- Long Lasting – Silensor is designed for long service life in an outdoor, poolside environment and replaces highly corrodible metal components with high performance, long-life plastics for low maintenance and dependable service – year after year
- Dependable – Silensor incorporates unique dry run protection to minimise pump damage if no water is available to the pump. It also includes a unique mechanical seal protection for long service life and reduced maintenance
- Convenient – Patented water-cooled motor, Silensor does not require air ventilation, and gives installers more flexibility with pump positioning
- Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
- SLS models are an ideal replacement for many other pool pump models and are designed to retrofit with minimal hassle
- SLL models feature a large 4.5 litre leaf basket for long intervals between cleaning
- Other Great Features
- Rust proof casing - Heavy duty motor impeller - 316 stainless steel pump shaft
- Motor shell protection with new Armourspray VC (Epoxy)
TECHNICAL DATA
ELECTRICAL DATE
| Type | SLS100 | SLS150 | SLS200 | SLS300 | SLL200 | SLL300 | SLL400 |
| Voltage (V) | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 | 220/240 |
| Supply Freq (Hz) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Motor Input Power (W/hP | 740/1.0 | 860/1.2 | 1090/1.5 | 1400/1.9 | 1130/1.5 | 1400/1.9 | 1760/2.4 |
| Motor Output Power (W/hP) | 525/0.7 | 620/0.8 | 775/1.0 | 960/1.3 | 830/1.1 | 960/1.3 | 1200/1.6 |
| RPM | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 | 2850 |
| Enclosure Class (IP) | 56 | 56 | 56 | 56 | 56 | 56 | 56 |
| Insulation Class | F | F | F | F | F | F | F |
| Approval No | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA | A/10EA |
| Lead Length | 3m | 3m | 3m | 3m | 3m | 3m | 3m |
OPERATING LIMITS
| Max water temperature | 40°C |
| Max ambient temperature | 40°C |
| Noise level (AS 5102.2) | 54 to 56dBa |

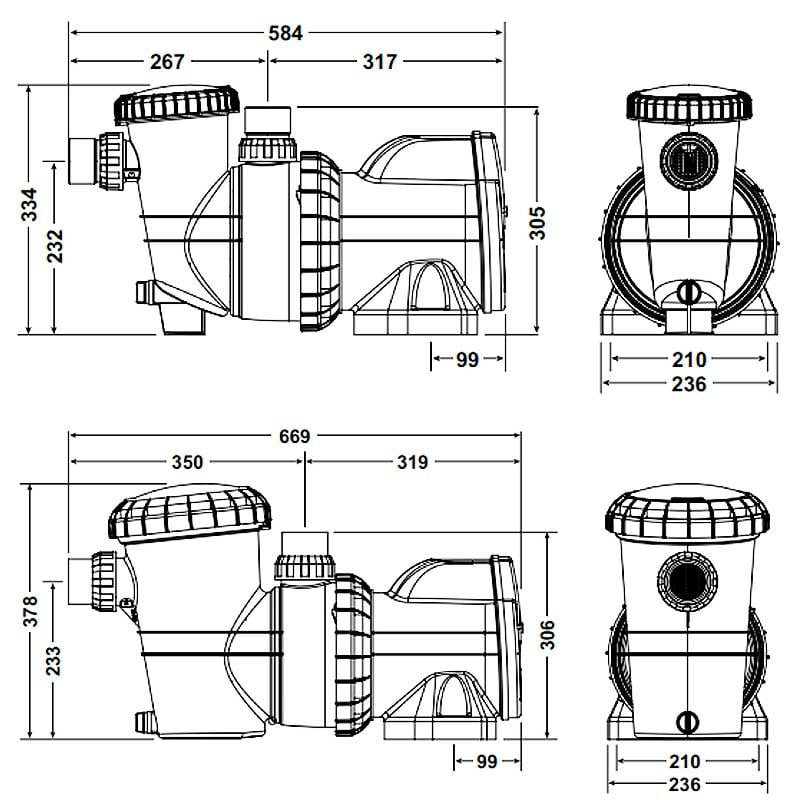

DRAWINGS
 |
 |
LITERATURE
 |
Davey SLS200 Water Cooled Pool Pumps Brochure |
