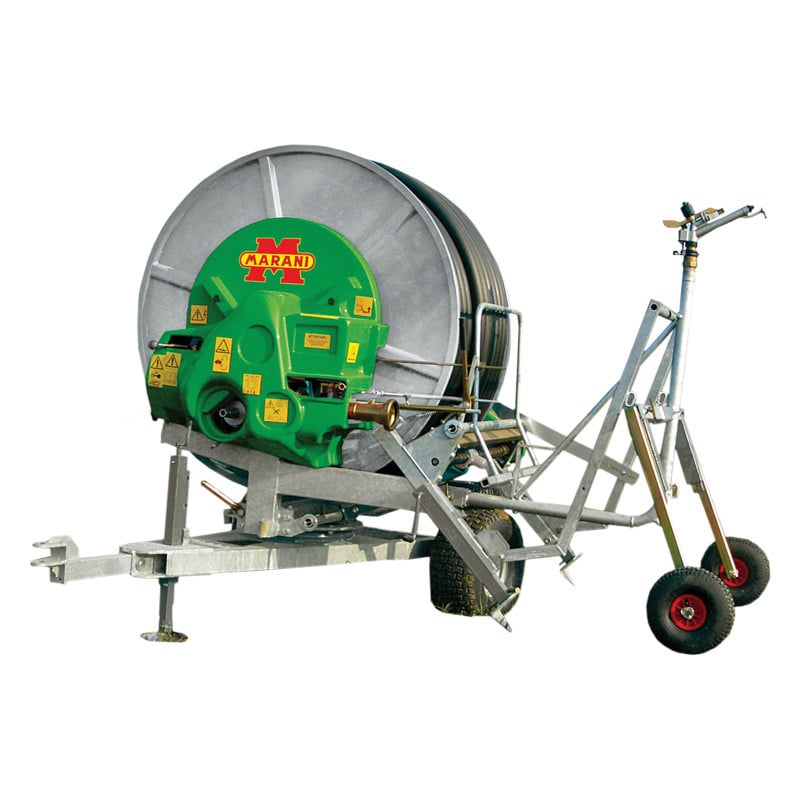

PRODUCT INFORMATION
Marani assemble and offers to their customers the fourth generation turbine system, providing excellent results even at very low pressures: 2-3 bar when using the spray boom and 5-6 bar when using the rain gun.
The choke-flow turbine with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable for a performance point of view. The turbine is made with a special aluminium alloy and machined using automatic machine tools. The current turbine-gearbox system has eliminated the transmission belt and the external bypasses.
The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.
STANDARD EQUIPMENT
- Automatic lifting device of trolley
- P.T.O.
- Turbine flanged on the gearbox with
- external bypass
- Single gear multi-speed gearbox
- Hose guide system
- Flexible connection pipe 2” x 6m
- Automatic lifting device of trolley
- Safety guards
- Pressure gauge (glycerine bath)
- Galvanized raingun trolley mounted on
- variable track wheels
- Hot Galvanized chassis, turret and reel
- Winding handle
- Water Inlet Shut-Off Valve
SIZES AVAILABLE
TECHNICAL DATA
| Model |
Pressure at Inlet (BAR) |
Flow Rate (L/M) |
Wetted Width at 80% (Mtr) |
| 58/200 |
3.3 – 8.0 |
152 - 351 |
32 - 48 |
| 63/150 |
3.0 – 9.7 |
74-560 |
41-70 |
| Description |
Code |
| GT015B 58mm x 200m (C) |
GT015B58200 |
| GT015B 63mm x 150m (I) |
GT015B63150 |
| SIME Hidra Part Circle |
140020 |
| Nelson P85 Gun |
18783K |
| Option |
Code |
| Computer Ma-Rain 26 kit c/w solar panel and pressure switch |
35462701KIT |

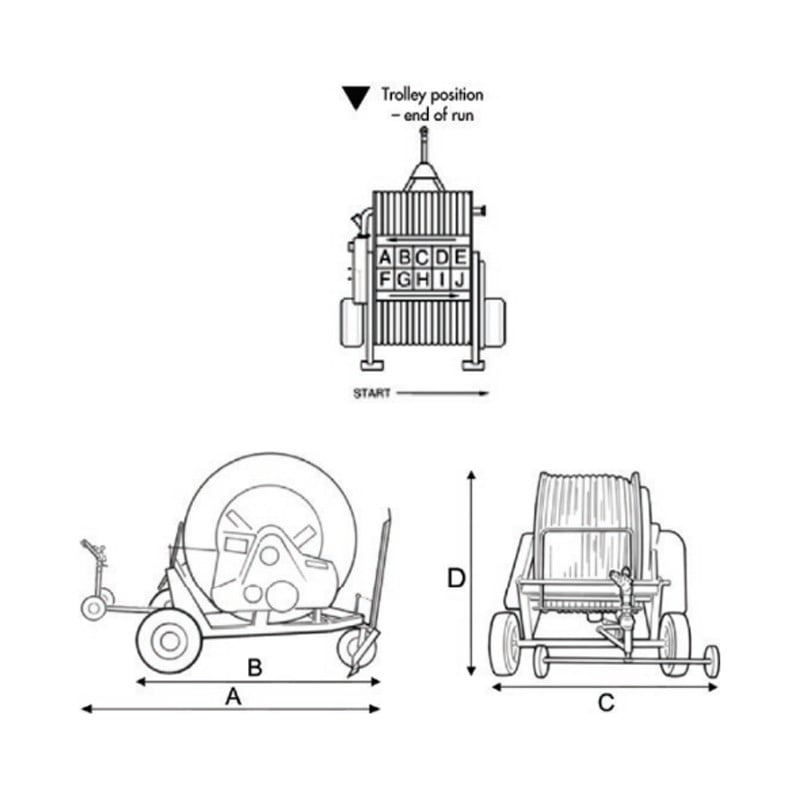

DRAWINGS
