Marani GT020B Hard Hose Irrigator Range

SKU:
GT020B

PRODUCT INFORMATION

Marani assemble and offers to their customers the fourth generation turbine system, providing excellent results even at very low pressures: 2-3 bar when using the spray boom and 5-6 bar when using the rain gun.

The choke-flow turbine with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable for a performance point of view. The turbine is made with a special aluminium alloy and machined using automatic machine tools. The current turbine-gearbox system has eliminated the transmission belt and the external bypasses.

The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.

STANDARD EQUIPMENT

  • Mechanical lifting device trolley
  • Hot galvanized chassis and reel
  • Telescopic mechanical feet
  • Winding handle
  • Single speed gearbox
  • Safety guards
  • Galvanized raingun trolley mounted on
  • variable track wheels
  • P.T.O.
  • Mechanical lifting device trolley
  • Flexible connection pipe 2” x 6m
  • Pressure gauge (glycerine bath)
  • Turbine flanged on the gearbox with
  • external by-pass
  • Water inlet shut off
  • Computer Ma Rain 26
  • Pressure switch
  • Solar Panel

SIZES AVAILABLE

  • 63mm x 200m

TECHNICAL DATA

Model Pressure at Inlet (BAR) Flow Rate (L/M) Wetted Width at 80% (Mtr)
63/200 3.6 – 11.1 230 – 606 40 - 61



Description Code
GT020B 63mm x 200m (J) GT020B63200
SIME Hidra Part Circle 140020
Nelson P85 Gun 18783K

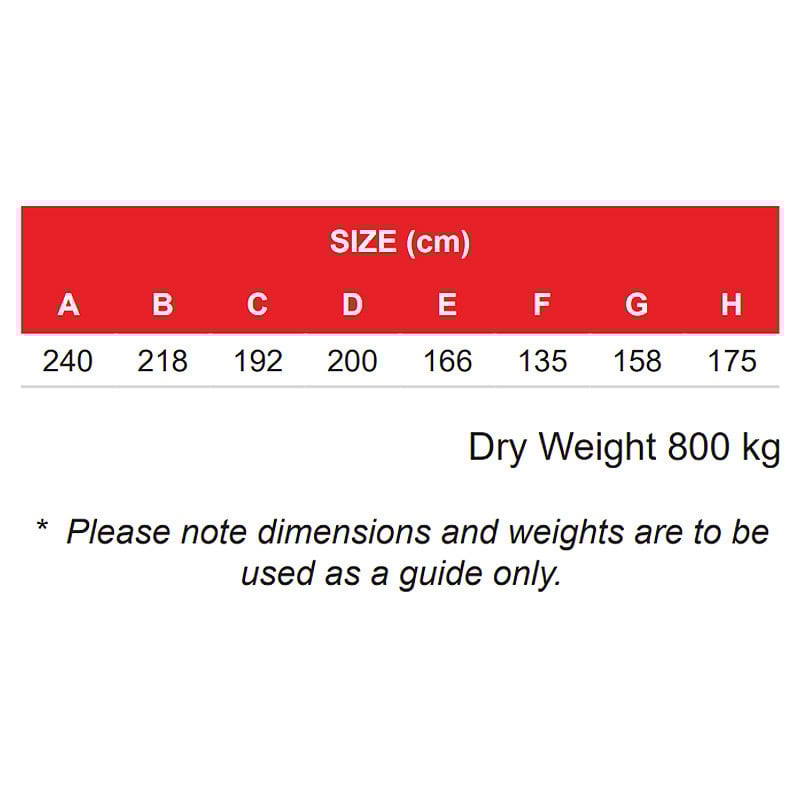

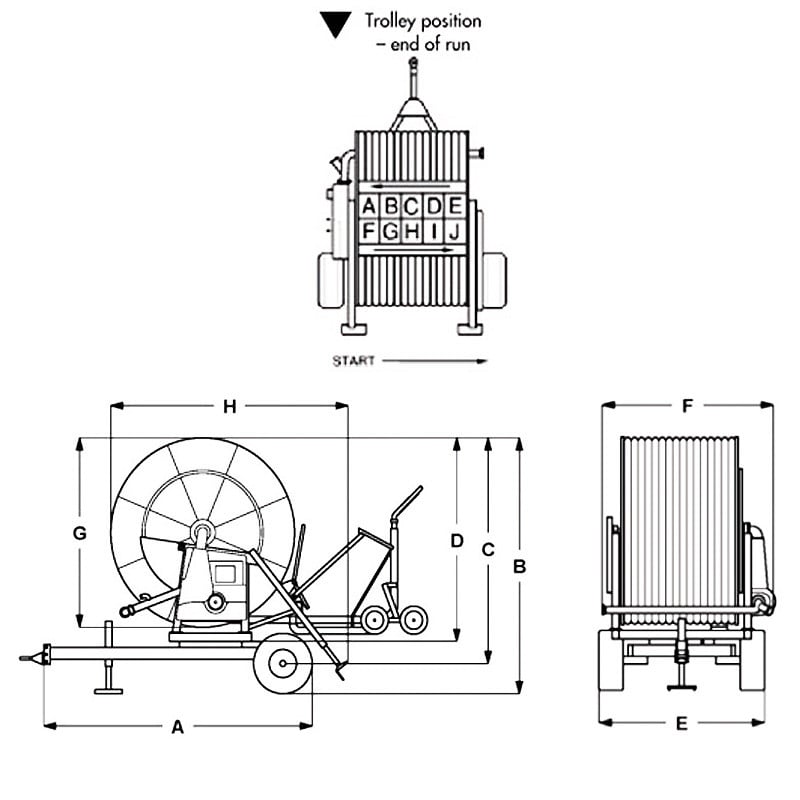

DRAWINGS
