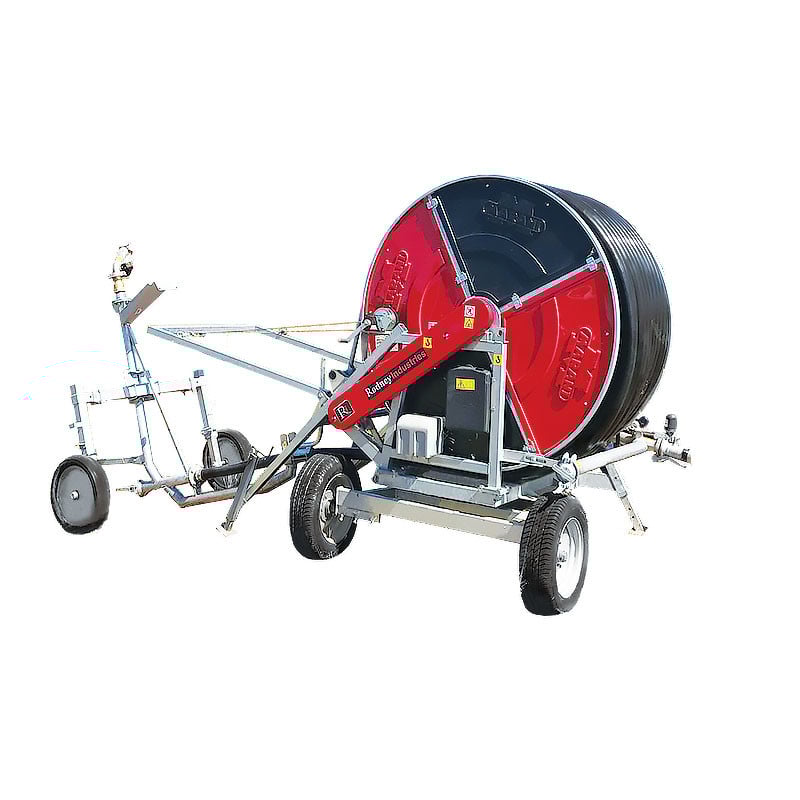

PRODUCT INFORMATION
Marani assemble and offers to their customers the fourth generation turbine system, providing excellent results even at very low pressures: 2-3 bar when using the spray boom and 5-6 bar when using the rain gun.
The choke-flow turbine with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable form a performance point of view.
The turbine is made with a special aluminium alloy and machined using automatic machine tools. The current turbine-gearbox system has eliminated the transmission belt and the external bypasses.
The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.
STANDARD EQUIPMENT
- Mechanical lifting device of trolley
- Flexible connection pipe with storage reel
- Telescopic mechanical feet
- Pressure gauge (glycerine bath)
- 3 Speed gearbox
- Speed equalizer
- PTO
- Hot galvanized chassis and reel
- Mechanical lifting device of trolley
- Winding handle
- Water Inlet Shut-Off Valve
- Safety guards
- Turbine mounted on the gearbox with built-in bypass
- Galvanized raingun trolley mounted on
- Variable track hard rubber wheels
SIZES AVAILABLE
- 63mm x 250m
- 75mm x 250m
TECHNICAL DATA
| Model | Pressure at Inlet (BAR) | Flow Rate (L/M) | Wetted Width at 80% (Mtr) |
| 63/250 | 4 – 10.1 | 230 – 520 | 40 – 54 |
| 75/250 | 4.4 – 10.8 | 276 – 708 | 51 - 75 |
| Description | Code |
| GT022B 63mm x 250m (G) | GT022B63250 |
| SIME Hidra Part Circle | 140020 |
| Nelson P85 Gun | 18783K |
| GT022B 75mm x 250m (I) | GT022B75250 |
| SIME Royal | 140036KIT |
| Nelson SR100 Gun | SR100K |
| Komet 101 Ultra Kit | 5010253KIT |
| Option | Code |
| MA-RAIN 26 Kit c/w solar panel and pressure switch | 35462703KIT |
| Ma-Rain 56 Kit | 35510120SKIT |

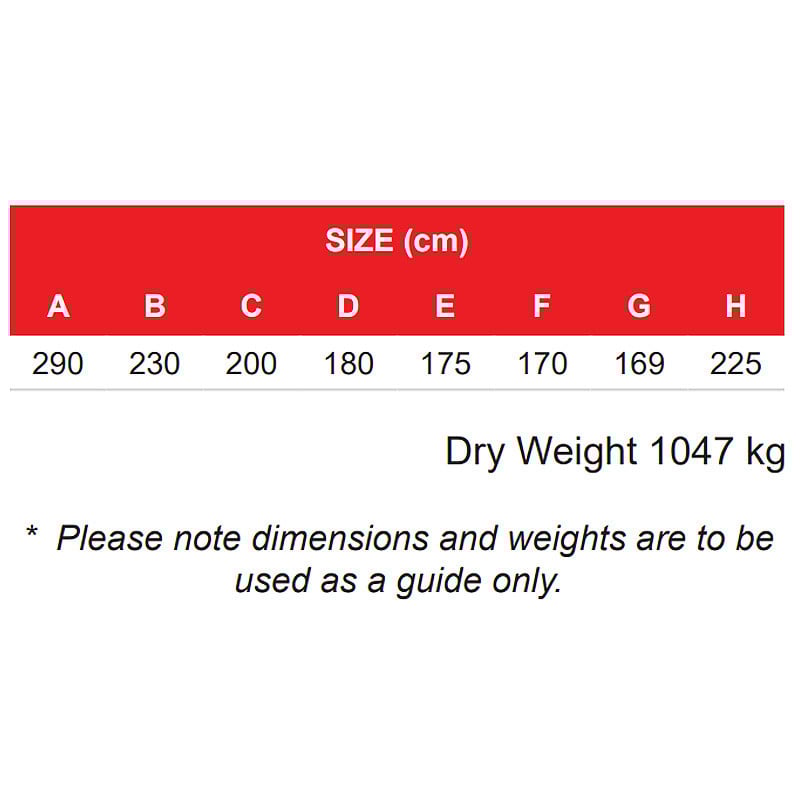

DRAWINGS
 |
 |
LITERATURE
 |
GT022B Marani Hard Hose Irrigators Range |
