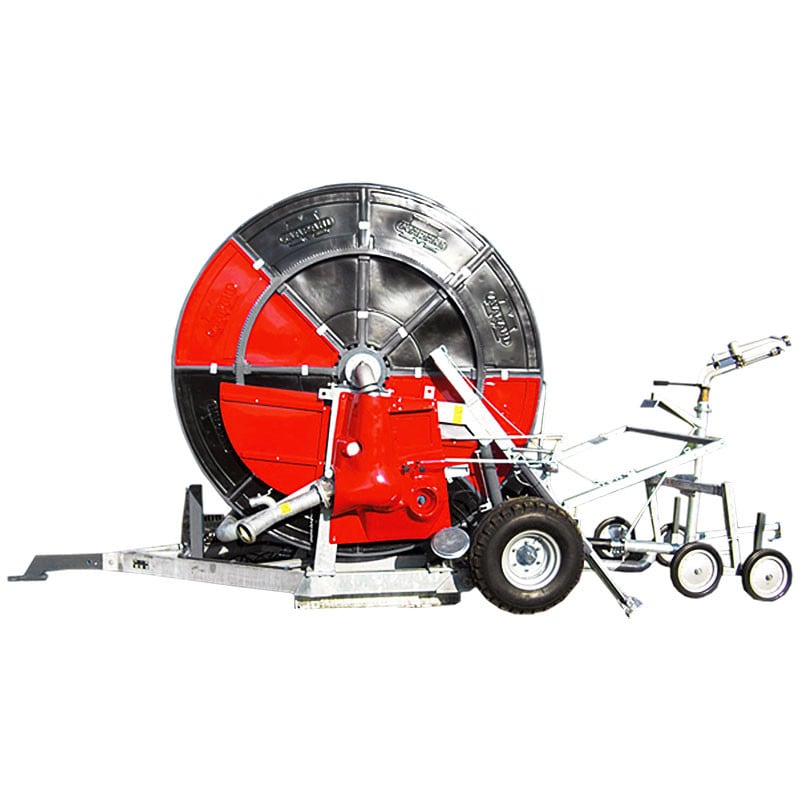

PRODUCT INFORMATION

Marani assemble and offers to their customers the fourth generation turbine system, providing excellent results even at very low pressures: 2-3 bar when using the spray boom and 5-6 bar when using the rain gun.

The choke-flow turbine with built-in bypass and flanged directly to a gearbox represents a significant advance in hose reel irrigators drive system and makes the system very reliable form a performance point of view.

The turbine is made with a special aluminium alloy and machined using automatic machine tools. The current turbine-gearbox system has eliminated the transmission belt and the external bypasses.

The turbine is connected directly to the gearbox and the bypass is internal. This keeps the pressure absorption to a minimum, allowing the machine to run more smoothly. Every machine is complete with its manuals and instruction stickers, spare parts lists and performance sheets to make the end user run the machine very easily by themselves.

STANDARD EQUIPMENT

• Hydraulic lifting device of trolley
• 4 Speed gearbox
• Water Inlet Shut-Off Valve
• Hydraulic rotation of turntable
• PTO
• Pressure gauge (glycerine bath)
• Hydraulic feet
• Flexible connection pipe with storage reel
• Tachometer
• Hydraulic lift of drawbar
• Hot galvanized chassis and reel
• Speed equalizer
• Winding handle
• Safety guards
• Turbine mounted on the gearbox with built-in bypass
• Hydraulic system by rapid couplings to tractor
• Galvanized 5 wheel raingun trolley mounted
• on variable track hard rubber wheels

SIZES AVAILABLE

• 110mm x 300m
• 110mm x 350m

TECHNICAL DATA

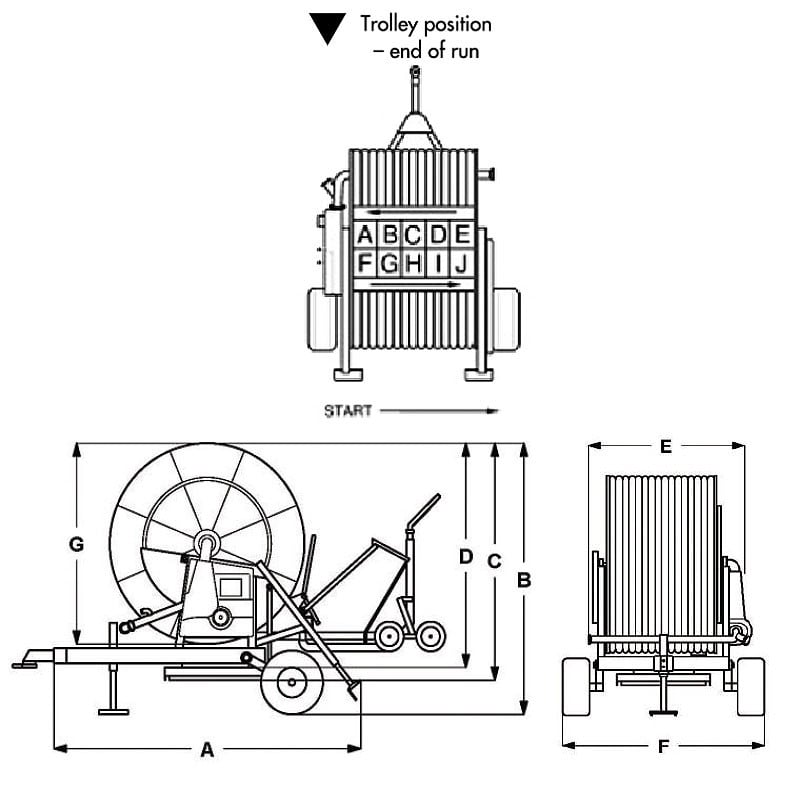

DRAWINGS
