Onga 350K Multievo Pressure Pump

SKU:
350K

PRODUCT INFORMATION

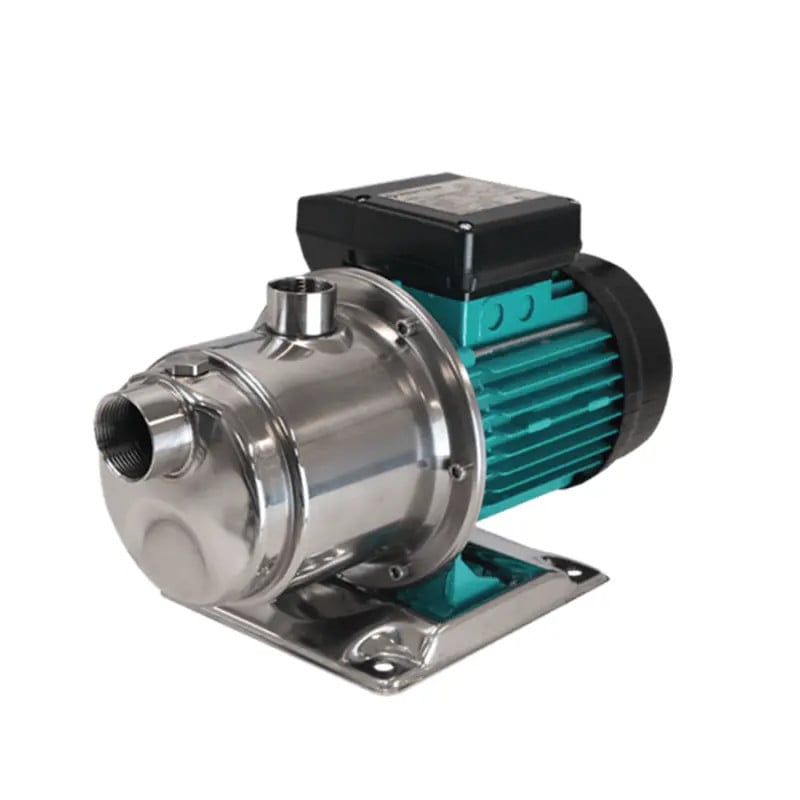

Onga 350K Multievo Pressure Pump

Multi Evo is a self-priming horizontal multi-stage centrifugal pump. The innovative, high-efficiency hydraulic system is coupled to our latest generation motor. Available in various models and all are certified for use with drinking water – AS/NZ 4020.

APPLICATION

Domestic pressure system (with Presscontrol or pressure switch kit), water transfer, irrigation and garden water supply

FEATURES & BENEFITS

  • Robust design
  • Quiet operation
  • Wide range of performance levels to suit various applications
  • Self-priming with up to 8m suction lift
  • Latest hydraulic design offers great reliability and efficiency
  • D.R.O.P. system for pump protectio

TECHINCAL DATA

Motor

Enclosed, air ventilated (TEFC)

• 2 poles, 50 Hz (n=2850 rpm)

• Protection class: IP55

• Insulation class: F

• Maximum room temperature 40°C

• Single phase power supply with permanently inserted condenser and thermal protection incorporated into motor winding

PUMP

Hydraulic performance conforms to ISO 9906:2012 - Grade 3B

• Type of liquid: clean water with no suspended solids or abrasive material

• Maximum liquid temperature 50°C

• Maximum operating pressure 8 bar

• D.R.O.P System

LITERATURE

Onga 350K Multievo Pressure Pump Onga 350K Multievo Pressure Pump Brochure
