PRODUCT INFORMATION

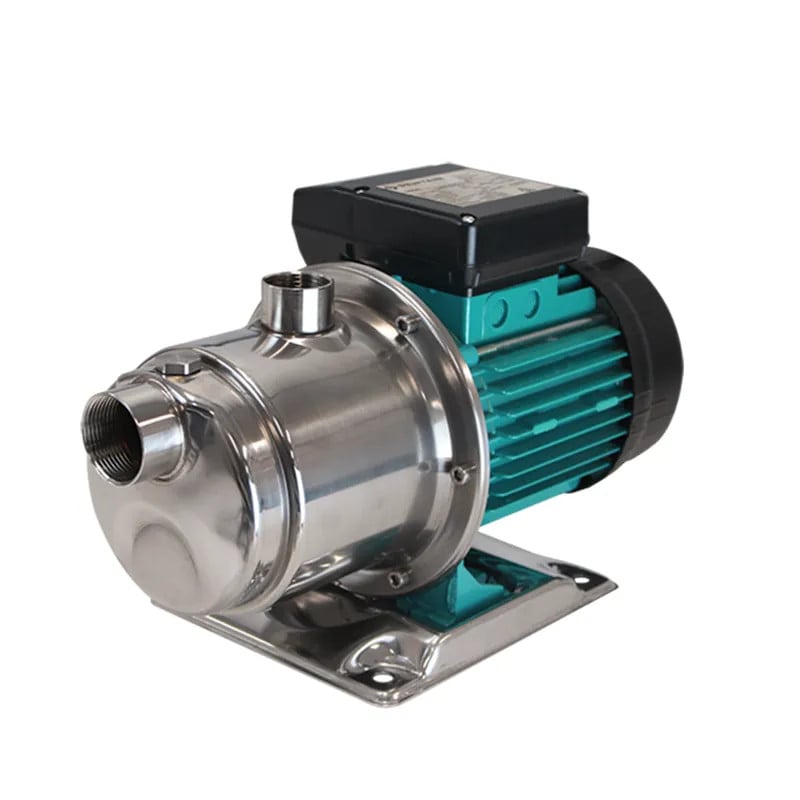

Onga 540K Multievo Pressure Pump
Multi Evo is a self-priming horizontal multi-stage centrifugal pump. The innovative, high-efficiency hydraulic system is coupled to our latest generation motor. Available in various models and all are certified for use with drinking water – AS/NZ 4020.
APPLICATION
Domestic pressure system (with Presscontrol or pressure switch kit), water transfer, irrigation and garden water supply
FEATURES & BENEFITS
- Robust design
- Quiet operation
- Wide range of performance levels to suit various applications
- Self-priming with up to 8m suction lift
- Latest hydraulic design offers great reliability and efficiency
- D.R.O.P. system for pump protectio
TECHINCAL DATA
Motor
Enclosed, air ventilated (TEFC)
- 2 poles, 50 Hz (n=2850 rpm)
- Protection class: IP55
- Insulation class: F
- Maximum room temperature 40°C
- Single phase power supply with permanently inserted condenser and thermal protection incorporated into motor winding
PUMP
Hydraulic performance conforms to ISO 9906:2012 - Grade 3B
- Type of liquid: clean water with no suspended solids or abrasive material
- Maximum liquid temperature 50°C
- Maximum operating pressure 8 bar
- D.R.O.P System
LITERATURE
 |
Onga 540K Multievo Pressure Pump Brochure |
