Onga 560K Multievo Pressure Pump

SKU:
560K

PRODUCT INFORMATION

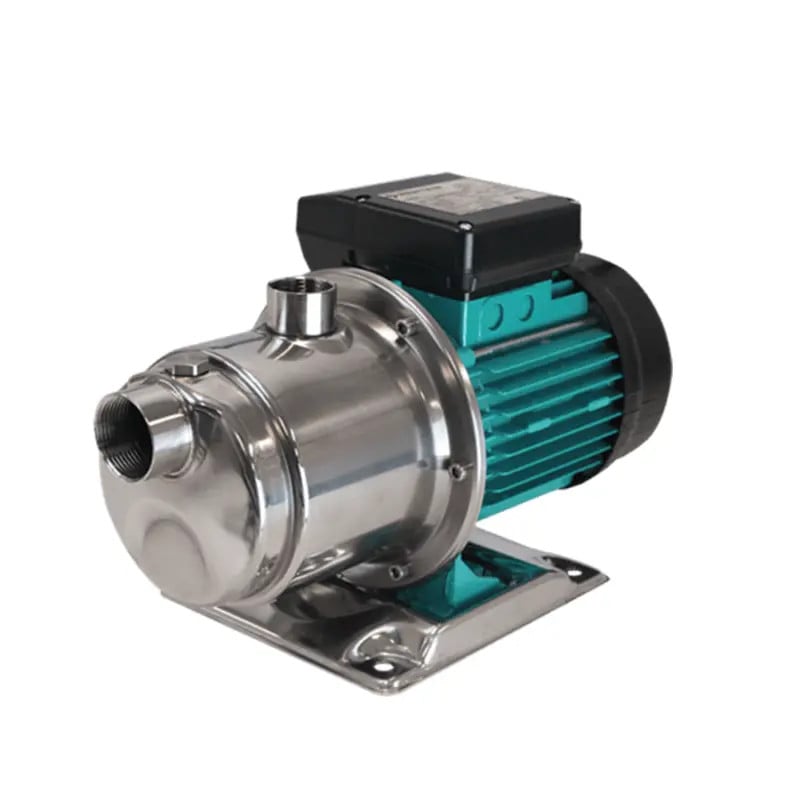

Onga 560K Multievo Pressure Pump

Multi Evo is a self-priming horizontal multi-stage centrifugal pump. The innovative, high-efficiency hydraulic system is coupled to our latest generation motor. Available in various models and all are certified for use with drinking water – AS/NZ 4020.

APPLICATION

Domestic pressure system (with Presscontrol or pressure switch kit), water transfer, irrigation and garden water supply

FEATURES & BENEFITS

  • Robust design
  • Quiet operation
  • Wide range of performance levels to suit various applications
  • Self-priming with up to 8m suction lift
  • Latest hydraulic design offers great reliability and efficiency
  • D.R.O.P. system for pump protection

TECHINCAL DATA

Motor

Enclosed, air ventilated (TEFC)

  • 2 poles, 50 Hz (n=2850 rpm)
  • Protection class: IP55
  • Insulation class: F
  • Maximum room temperature 40°C
  • Single phase power supply with permanently inserted condenser and thermal protection incorporated into motor winding

PUMP

Hydraulic performance conforms to ISO 9906:2012 - Grade 3B

  • Type of liquid: clean water with no suspended solids or abrasive material
  • Maximum liquid temperature 50°C
  • Maximum operating pressure 8 bar
  • D.R.O.P System

LITERATURE

Onga 560K Multievo Pressure Pump Onga 560K Multievo Pressure Pump Brochure
