Pentair Onga Pantera PPP-1500 1.5HP Pool Pump

SKU:
PPP-1500-1P

PRODUCT INFORMATION

PANTERA POOL PUMPS

Pantera pumps are high-performance pumps with 5 levels of corrosion resistance. With over 30 years experience selling into the pool industry, we know the more protection you give the motor, the better off you are and that is why we build five levels of motor protection into the Pantera range of pool pumps.

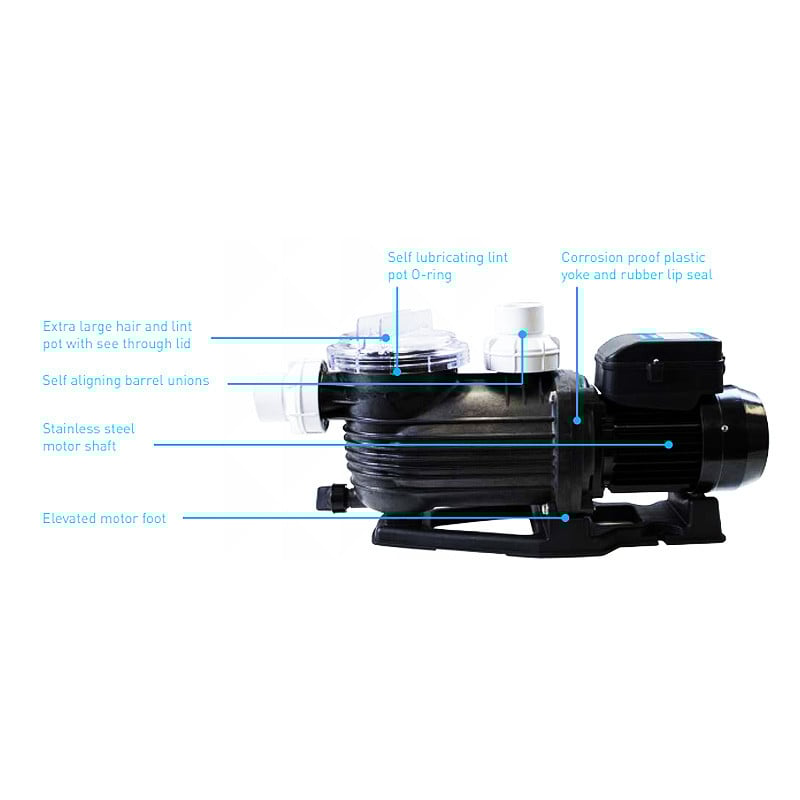

FEATURES & BENEFITS

  • Elevated motor foot - Incorporating an elevated mount into the pump design keeps moisture well away from the motor
  • Shaft Sleeve - A nylon shaft sleeve incorporating a flinger, adds additional water ingress protection
  • Mechanical Seal - A heavy-duty 3/4, 316 Stainless Steel mechanical seal (on all models) provides extended life and longer intervals between servicing.
  • Plastic Yoke and Lip-Seal - The wet end design integrates a moulded end-shield cover and lip seal, protecting the motor from water damage.
  • Self aligning barrel unions (40mm/50mm) included.

TECHNICAL DATA

MATERIALS

Component
Material
Pump casing: 20% Glass filled ABS
Impeller: 20% Glass filled ABS
Baffle: 20% Glass filled ABS
Diffuser:
20% Glass filled ABS
Yoke:
20% Glass filled ABS
Drain cap:
Polypropylene
Shaft sleeve:
Nylon
Motor shaft:
400 series
End shield:
Cast iron
Hair and lint pot O-ring: Nitrile Teflon
Casing O-ring: Nitrile
Barrel union O-ring: Nitrile
Barrel union: ABS
Hair and lint pot lid: Polycarbonate
Cord/ plug: H07RNF 3G 1.0mm
Mechanical seal: 3/4 Carbon Ceramic. Nitrile Bellows. 316 ss spring



MODEL DATA

Pump Model
Motor Kw Nominal Supply Voltage Phase Full Load Current Locked Rotor Current Capacitor mfd Sound Power Level Supply Cord Length Net Weight Packed Weight Carton Dimentions L x W x H
  kW(hp)     (A) (A)   dBA* (m) (kg) (kg) (mm)
PPP-550-1P 0.55(³/4) 230-240V 1 2.9 17A 20 62 2 12.5 14 660 x 240 x 305
PPP-750-1P 0.75(1) 230-240V 1 3.9A 17A 20 66 2 12.5 14 660 x 240 x 305
PPP-1100-1P 1.0(11/4) 230-240V 1 5.0A 21A 25 65 2 13.5 15 660 x 240 x 305
PPP-1500-1P
1.2(11/2) 230-240V 1 6.1A 21A 25 66 2 13.5 15 660 x 240 x 305

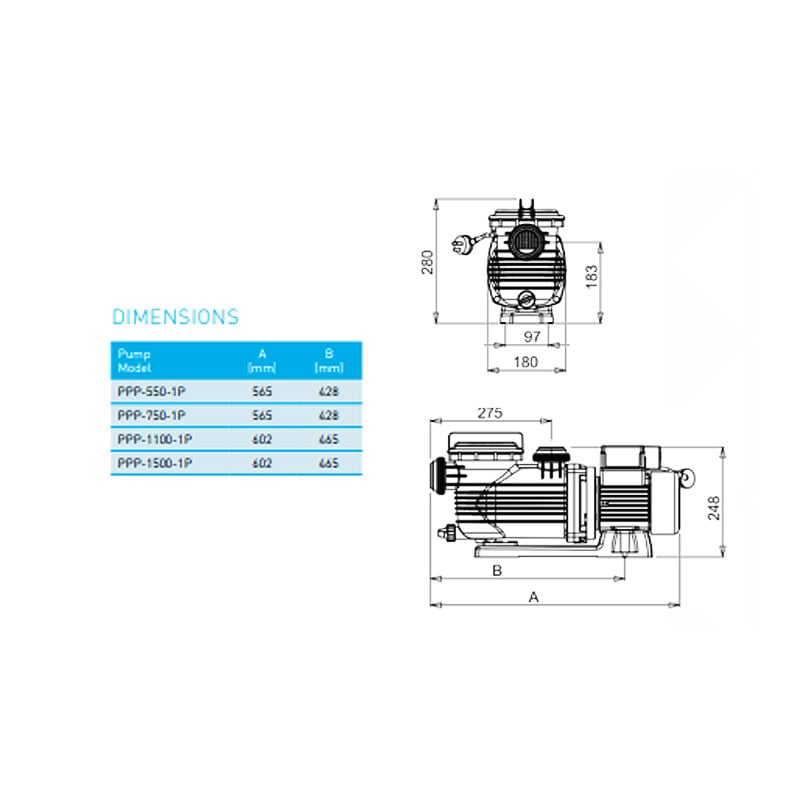

DRAWINGS

LITERATURE

Pentair Onga Pantera PPP-1500 1.5HP Pool Pump Brochure Pentair Onga Pantera PPP-1500 1.5HP Pool Pump Brochure
