PRODUCT INFORMATION

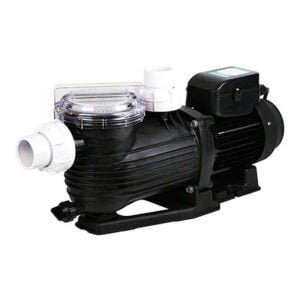

PANTERA POOL PUMPS
Pantera pumps are high-performance pumps with 5 levels of corrosion resistance. With over 30 years experience selling into the pool industry, we know the more protection you give the motor, the better off you are and that is why we build five levels of motor protection into the Pantera range of pool pumps.

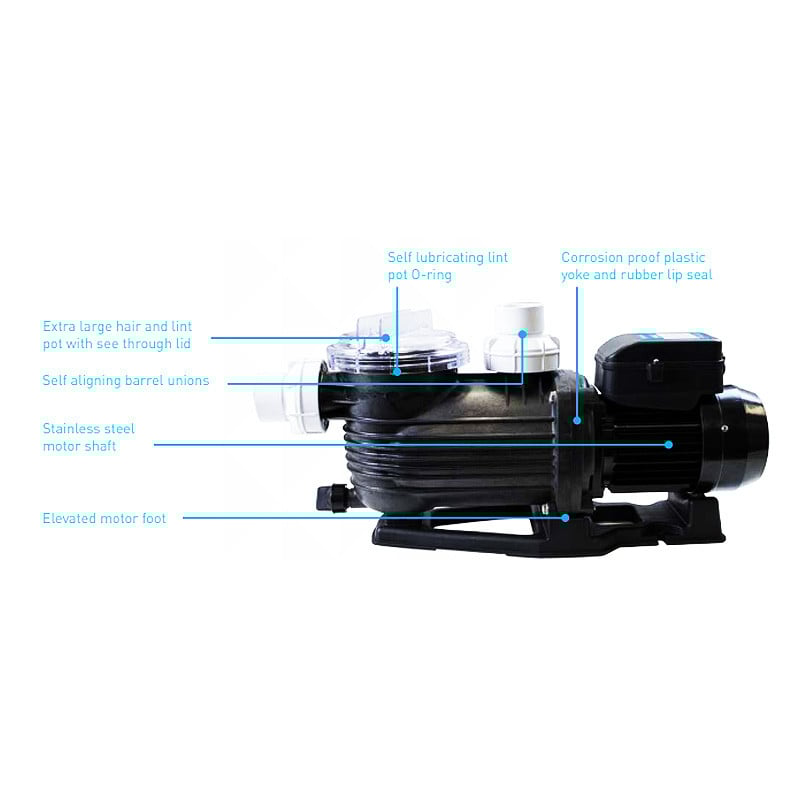

FEATURES & BENEFITS
- Elevated motor foot - Incorporating an elevated mount into the pump design keeps moisture well away from the motor
- Shaft Sleeve - A nylon shaft sleeve incorporating a flinger, adds additional water ingress protection
- Mechanical Seal - A heavy-duty 3/4, 316 Stainless Steel mechanical seal (on all models) provides extended life and longer intervals between servicing.
- Plastic Yoke and Lip-Seal - The wet end design integrates a moulded end-shield cover and lip seal, protecting the motor from water damage.
- Self aligning barrel unions (40mm/50mm) included.
TECHNICAL DATA
MATERIALS
| Component |
Material |
| Pump casing: | 20% Glass filled ABS |
| Impeller: | 20% Glass filled ABS |
| Baffle: | 20% Glass filled ABS |
| Diffuser: |
20% Glass filled ABS |
| Yoke: |
20% Glass filled ABS |
| Drain cap: |
Polypropylene |
| Shaft sleeve: |
Nylon |
| Motor shaft: |
400 series |
| End shield: |
Cast iron |
| Hair and lint pot O-ring: | Nitrile Teflon |
| Casing O-ring: | Nitrile |
| Barrel union O-ring: | Nitrile |
| Barrel union: | ABS |
| Hair and lint pot lid: | Polycarbonate |
| Cord/ plug: | H07RNF 3G 1.0mm |
| Mechanical seal: | 3/4 Carbon Ceramic. Nitrile Bellows. 316 ss spring |
MODEL DATA
| Pump Model |
Motor Kw Nominal | Supply Voltage | Phase | Full Load Current | Locked Rotor Current | Capacitor mfd | Sound Power Level | Supply Cord Length | Net Weight | Packed Weight | Carton Dimentions L x W x H |
| kW(hp) | (A) | (A) | dBA* | (m) | (kg) | (kg) | (mm) | ||||
| PPP-550-1P | 0.55(³/4) | 230-240V | 1 | 2.9 | 17A | 20 | 62 | 2 | 12.5 | 14 | 660 x 240 x 305 |
| PPP-750-1P |
0.75(1) | 230-240V | 1 | 3.9A | 17A | 20 | 66 | 2 | 12.5 | 14 | 660 x 240 x 305 |
| PPP-1100-1P | 1.0(11/4) | 230-240V | 1 | 5.0A | 21A | 25 | 65 | 2 | 13.5 | 15 | 660 x 240 x 305 |
| PPP-1500-1P | 1.2(11/2) | 230-240V | 1 | 6.1A | 21A | 25 | 66 | 2 | 13.5 | 15 | 660 x 240 x 305 |
DRAWINGS
 |
 |
LITERATURE
 |
Pentair Onga Pantera PPP-750 1.0HP Pool Pump Brochure |
