PRODUCT INFORMATION

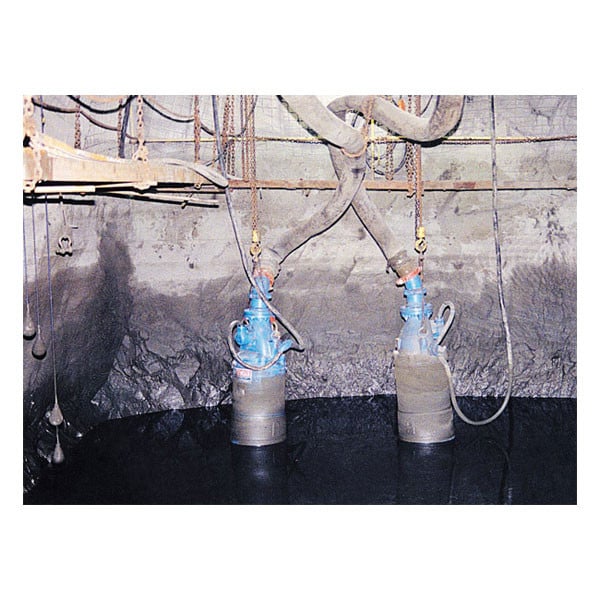

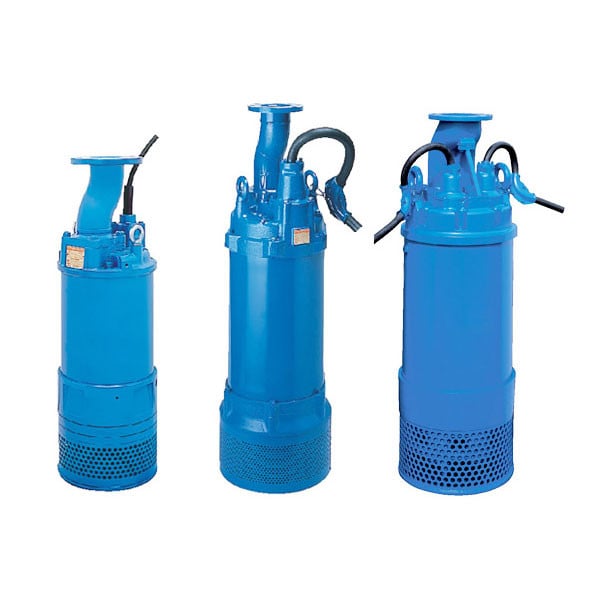

The LH-series is a submersible three-phase cast iron high head drainage pump. Being the pump cylindrical and slim, it can be installed in a well casing for deep well dewatering. The center flange construction assures a stable installation even if it is fixed by the discharge pipe. The top discharge, flow-thru design provides maximum motor cooling efficiency allowing continuous operation at low water levels and extended dry-run capability. The pump incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.*
* excluding LH33.0
SPECIFICATIONS
Discharge |
Model | Motor Output kW |
Phase | Starting Method |
Solids Passage (mm) |
Dimentions L x H |
Dry Weight (kg) |
Cable lenght (m) |
---|---|---|---|---|---|---|---|---|
80 | LH33.0 | 3 | Three | D.O.L. | 6 | 185 x 645 | 42 | 20 |
100 | LH422 | 22 | Three | D.O.L. | 6 | 420 x 1352 | 350 | 10 |
100 | LH430 | 30 | Three | Star-Delta | 6 | 420 x 1352 | 355 | 10 |
150 | LH615 | 15 | Three | D.O.L. | 8.5 | 420 x 1352 | 213 | 10 |
150 | LH619 | 19 | Three | D.O.L. | 12 | 420 x 1352 | 350 | 10 |
150 | LH622 | 22 | Three | D.O.L. | 12 | 420 x 1423 | 360 | 10 |
150 | LH637 | 37 | Three | Star-Delta | 6 | 530 x 1448 | 495 | 10 |
150 | LH645 | 45 | Three | Star-Delta | 6 | 530 x 1448 | 510 | 10 |
150 | LH675 | 75 | Three | Star-Delta | 8 | 563 x 1676 | 865 | 10 |
150 | LH690 | 90 | Three | Star-Delta | 10 | 592 x 1787 | 1100 | 20 |
150 | LH6110 | 110 | Three | Star-Delta | 10 | 616 x 1887 | 1210 | 20 |
200 | LH837 | 37 | Three | Star-Delta | 20 | 530 x 1488 | 495 | 10 |
200 | LH845 | 45 | Three | Star-Delta | 20 | 530 x 1488 | 510 | 10 |
200 | LH855 | 55 | Three | Star-Delta | 20 | 563 x 1716 | 820 | 10 |
200 | LH875 | 75 | Three | Star-Delta | 20 | 563 x 1716 | 865 | 10 |
200 | LH890 | 90 | Three | Star-Delta | 20 | 592 x 1787 | 1150 | 10 |
200 | LH8110 | 110 | Three | Star-Delta | 20 | 616 x 1887 | 1210 | 20 |
Please Note: Specification's are a guild only and may change without notice.
* 1 Star-Delta available upon request
* 2 Weights excluding cable
